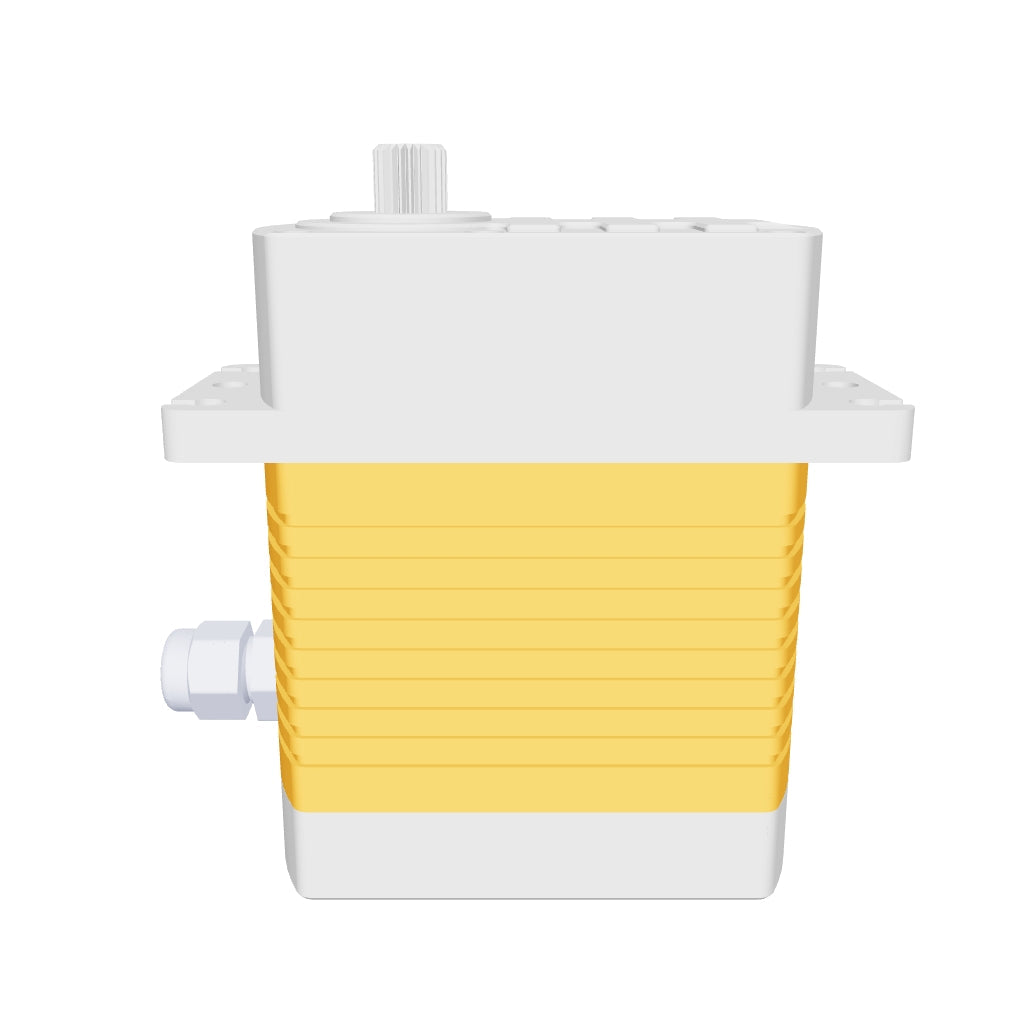

FEETECH FT750B Servo Motor
Regular price
$770.00
Unit price
FEETECH FT750B Servo Motor - FT-750B-C001 (24V 750KG / PWM Communication) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT750B Servo Motor
Regular price
$770.00
Unit price
FEETECH FT750B Servo Motor - FT-750B-C001 (24V 750KG / PWM Communication) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT-750B-C001 |
| Product Name | 24V 750KG 180 Degree Servo |
| Storage Temperature Range |
-40℃～80℃ |
| Operating Temperature Range | -40℃～60℃ |
| Size | A：90mm B：48mm C: 109.4mm |
| Weight | 1050±5g |
| Gear type | Steel |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T(11.8mm) |
| Gear Ratio | 1/252 |
| Case | Aluminum |
| Connector wire | 43±1CM |
| Motor |
Brushless Motor |
| Operating Voltage Range | 16-28V |
| Idle current(at stopped) | 30mA@24V |
| No load speed | 0.385sec/60°(26RPM)@24V |
| Runnig current(at no load) | 360mA@24V |
| Peak stall torque | 750kg.cm@ 24V |
| Rated torque | 250kg.cm@24V |
| Stall current | 15.5A@24V |
| Command si gnal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180±5°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Clockwise (1500→2000 μ sec) |
