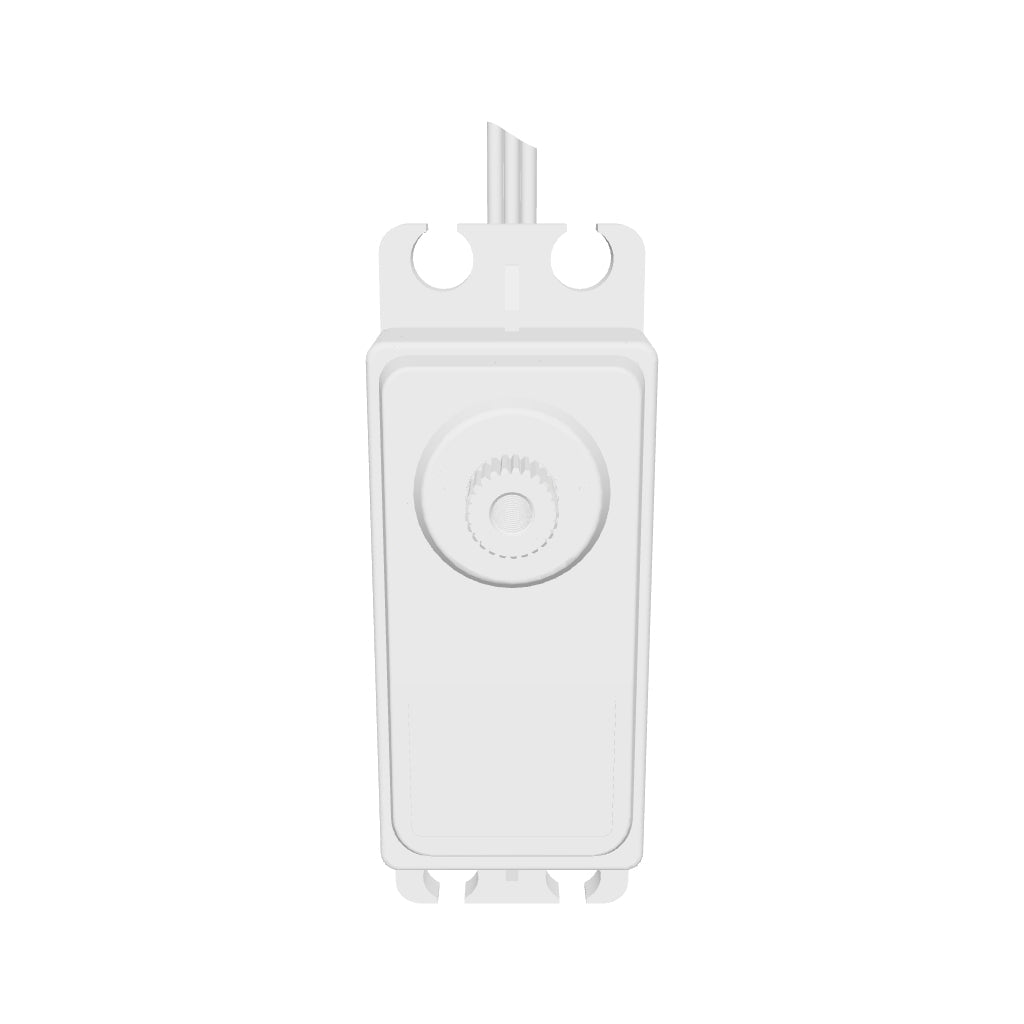

FEETECH FT7115M Servo Motor
Regular price
$15.00
Unit price
/
Unavailable
FEETECH FT7115M Servo Motor - FT-7115-C001（6V 15KG） is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT7115M Servo Motor
Regular price
$15.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FT-7115-C001 |
| Product Name | 7.4V 15KG 180 Degree Copper Gear Servo |
| Storage Temperature Range |
-20℃～80℃ |
| Operating Temperature Range | -10℃～60℃ |
| Size | A：40.16mm B：20.16mm C: 40.05mm |
| Weight | 61.9± 1g |
| Gear type | Copper |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Gear Ratio | 1/275 |
| Case | Alumi num |
| Connector wire | 30CM |
| Motor |
Core Motor |
| Operating Voltage Range | 4-8.4V |
| Idle current(at stopped) | 6mA@7.4V |
| No load speed | 0.161sec/60°(58RPM)@7.4V |
| Runnig current(at no load) | 140mA@7.4V |
| Peak stall torque | 19.5kg.cm@7.4V |
| Rated torque | 6.5kg.cm@7.4V |
| Stall current | 3.5A@7.4V |
| Command si gnal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180°± 5°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Counterclockwise (1500→2500 μ sec) |
| Electronic Protection | Stall 8sec |
