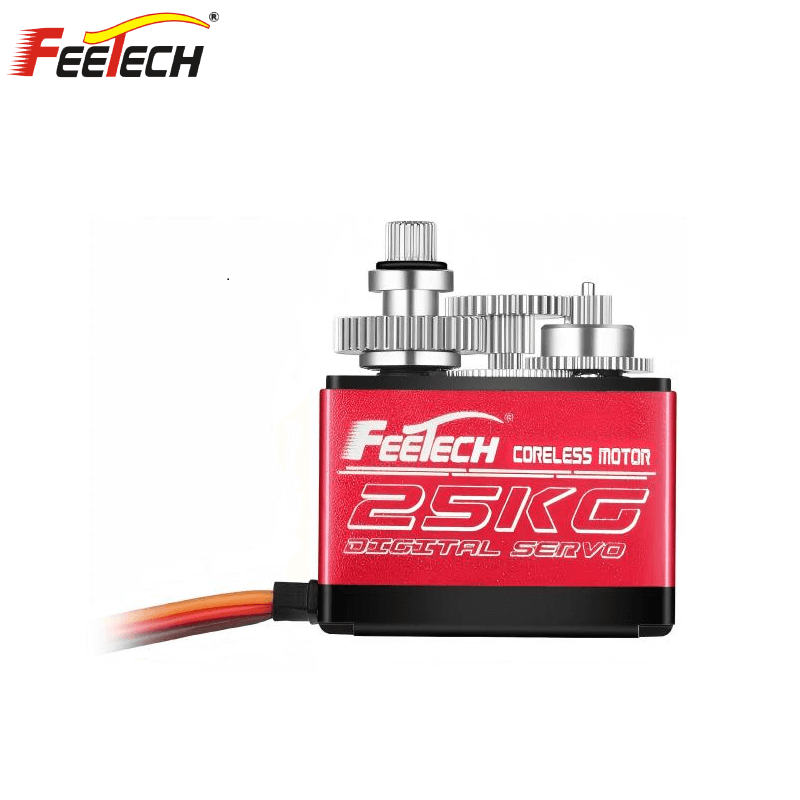

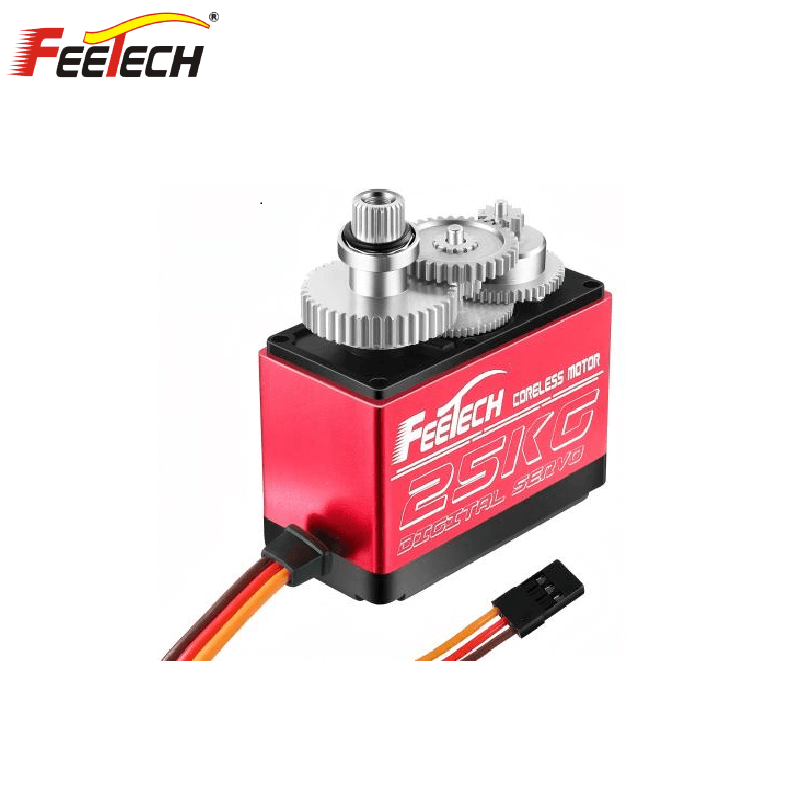

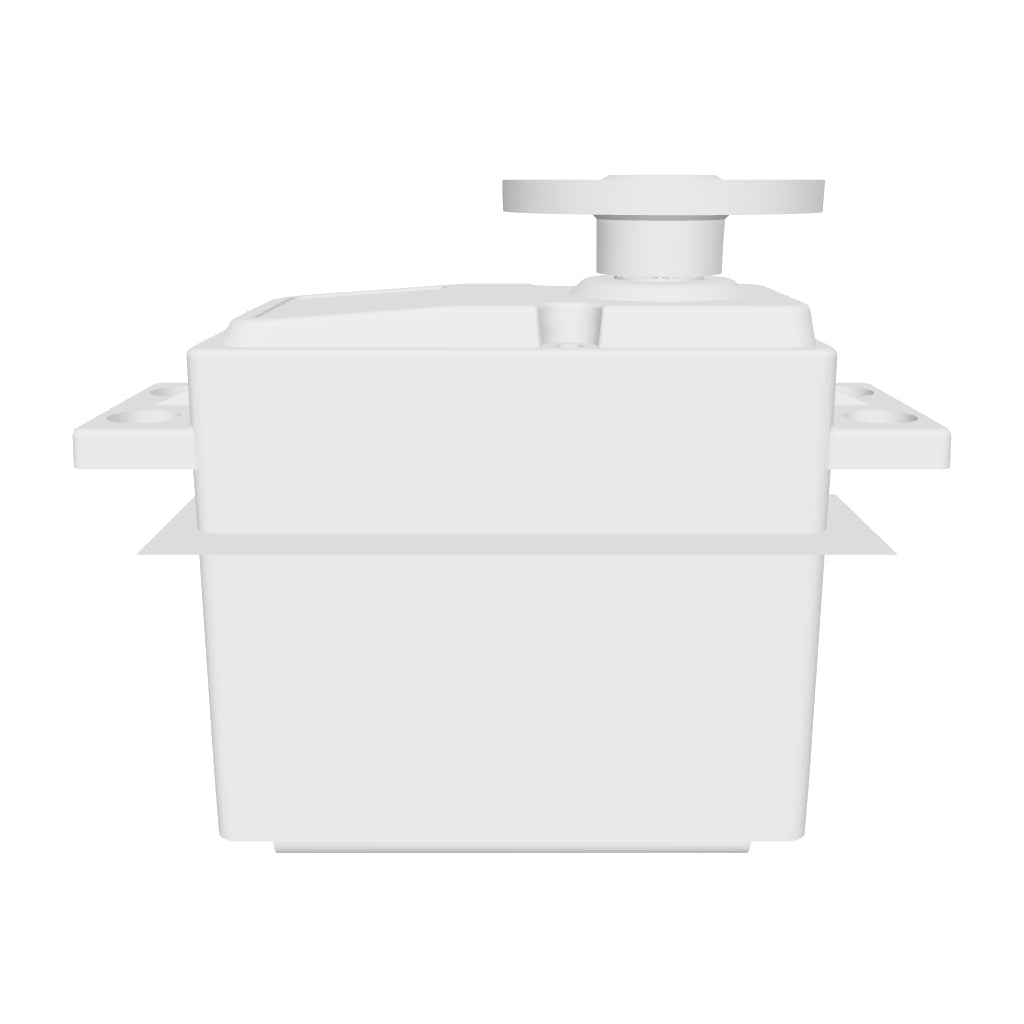

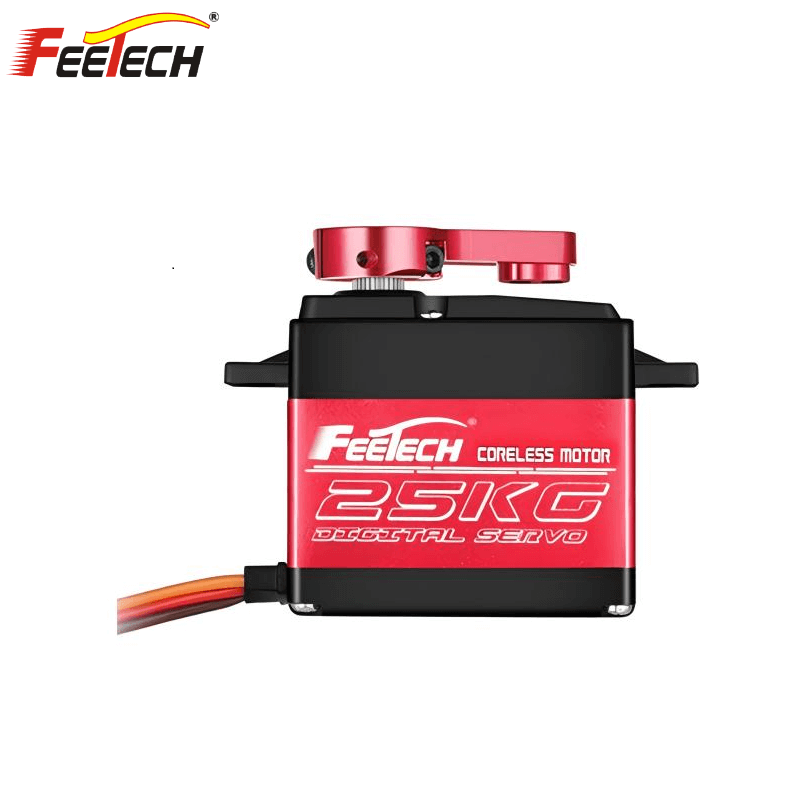

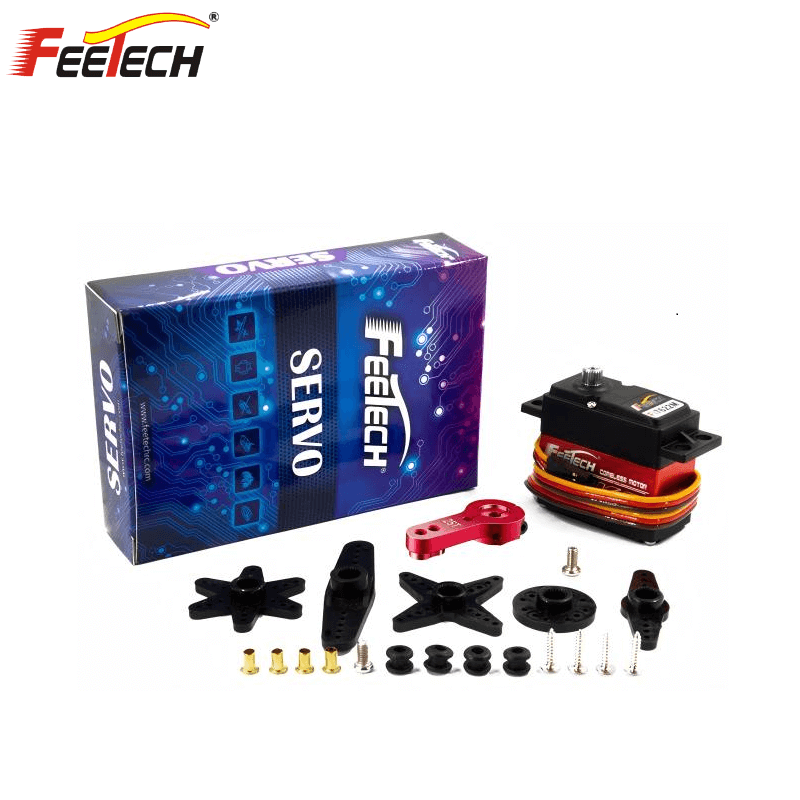

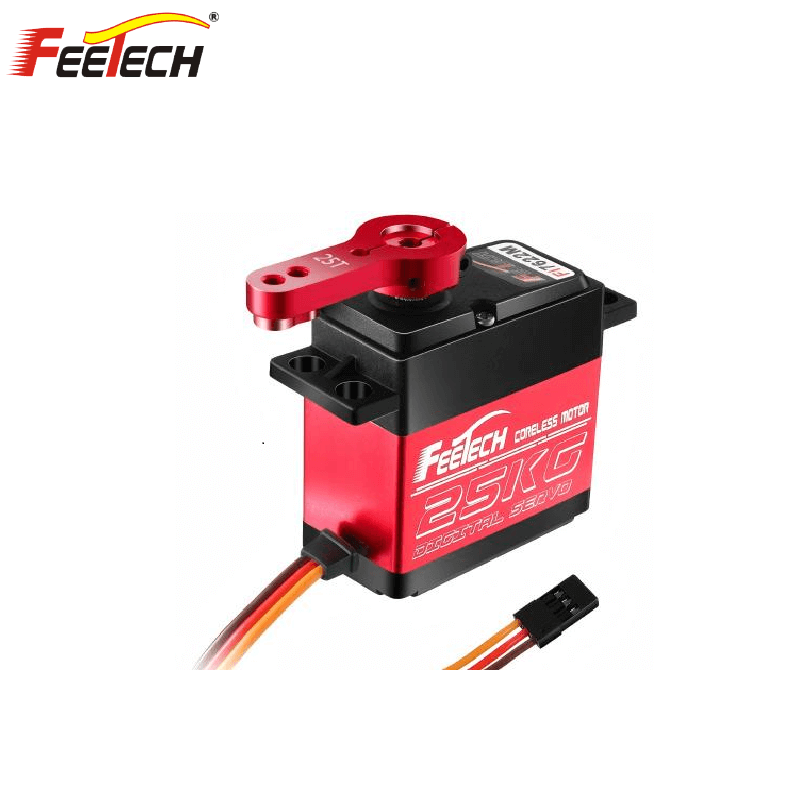

FEETECH FI7622M Servo Motor
Regular price
$35.00
Unit price
FEETECH FI7622M Servo Motor - FI7622M (7.4V25KG) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FI7622M Servo Motor
Regular price
$35.00
Unit price
FEETECH FI7622M Servo Motor - FI7622M (7.4V25KG) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FI7622M |
| Product Name | 7.4V 25kg.cm Digital 180 Degree Aluminum Middle Shell Aluminum Gear Air Core Cup Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Size | A：55mm B：20mm C: 38mm |
| Weight | 66.6土 1g |
| Gear type | Metal Gear |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Horn type | Plastic |
| Case | PA+Alumi num |
| Connector wire | 30CM |
| Motor |
CoreLess Motor |
| Operating Voltage Range | 6V-8.4V |
| Idle current (atstopped) | 6MA@7.4V |
| No load speed | 0.11sec/60°@7.4V |
| Runnig current(at no load) | 120mA@7.4V |
| Peak stall torque | 25kg.cm@7.4V |
| Rated torque | 8.5kg.cm@7.4V |
| Stall current | 3.5A@7.4V |
| Command signal | Pulse width modification |
| Amplifier type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180° at 500→2500 μ sec) |
| Dead band width |
≤4 μ sec |
| Rotating direction | Counterclockwi se (1500→2000 μ sec) |
