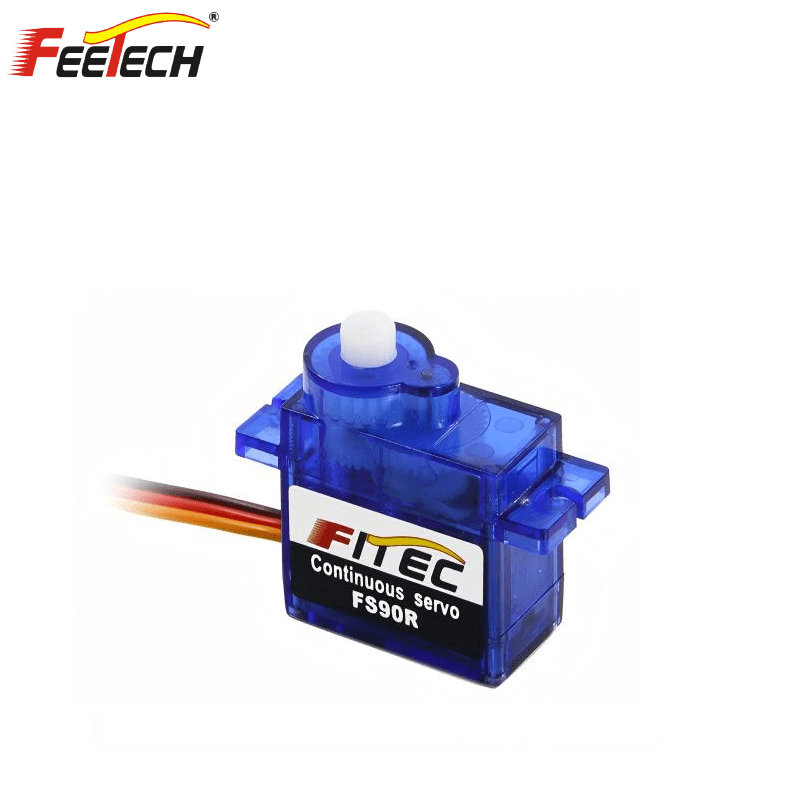

FEETECH FS90R Servo Motor
Regular price
$15.00
Unit price
/
Unavailable
FEETECH FS90R Servo Motor - FS-90R-C001 (6V1.5KG) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FS90R Servo Motor
Regular price
$15.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FS90R |
| Product Name | 4.8V.1. 3kg. cm Analog 360 Degree Continuous rotation Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ |
| Size | A：22.5mm B：12.1mm C：27.7mm |
| Weight | 9g ±0.2 |
| Gear type | Plastic Gear (Nylon & POM ) |
| Limit angle |
NO limit |
| Bearing |
NO Ball bearings |
| Horn gear spline | 21T(4.86mm) |
| Horn type | Plastic,POM |
| Case | Nylon & Fiberglass |
| Connector wire | 250mm ±5 mm |
| Motor |
Coreless motor |
| Operating Voltage Range | 4.8-6V |
| No load speed | 100RPM/60°@6V |
| Runnig current(at no load) | 130 mA@6V |
| Peak stall torque | 1.5kg.cm@6V |
| Rated torque | 0.5kg.cm@6V |
| Stall current | 800mA@6V |
| Command signal | Pulse width modification |
| Amplifier type | Analog comparator |
| Pulse width range | 700~2300usec |
| Stop position | 1500 μsec |
| Running degree | 360 DegreeContinuous rotation |
| Dead band width |
90 μsec |
| Rotating direction | CCW (when 1500~2300 μsec) |
