SteadyWin | SKU:

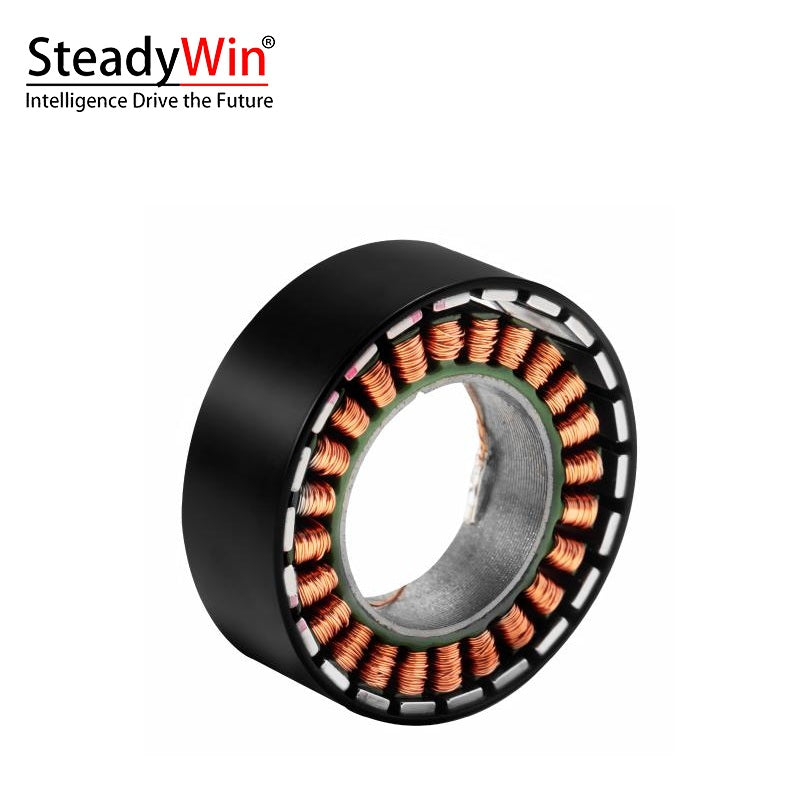

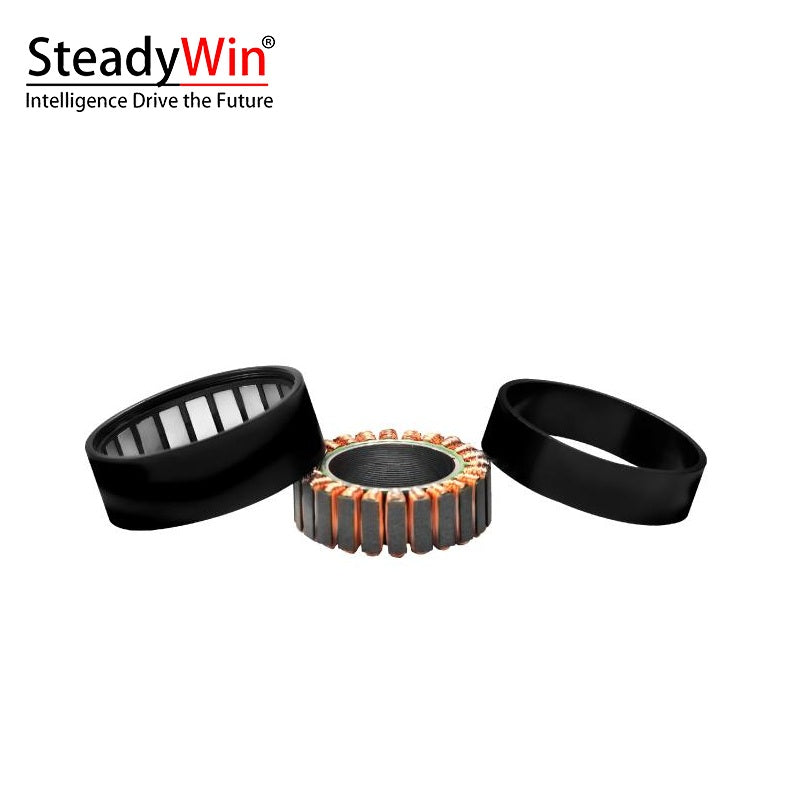

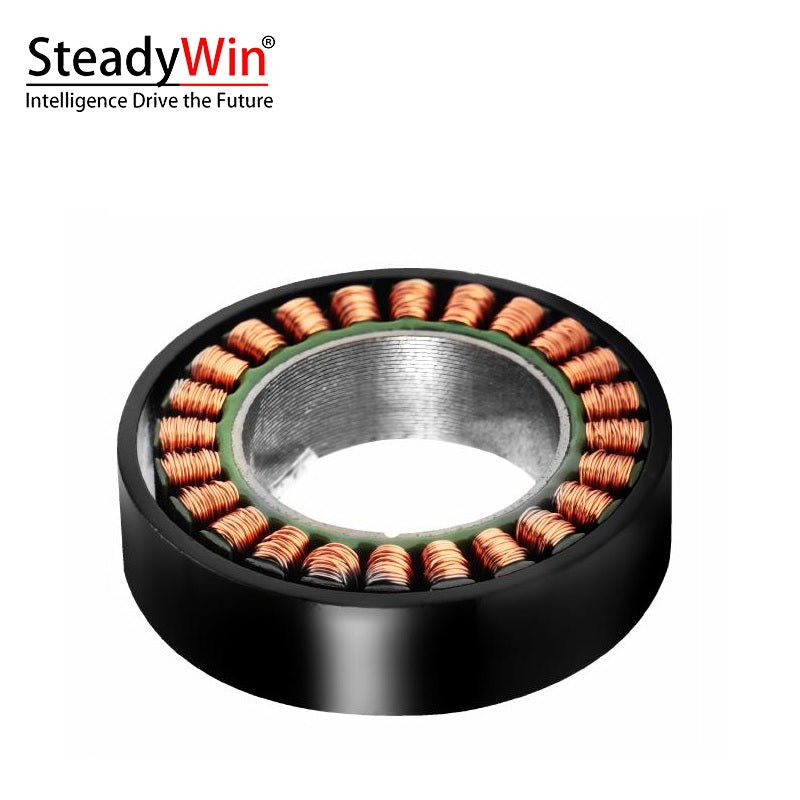

SteadyWin WK3510 Motor
Regular price
$15.00
Unit price
/
Unavailable

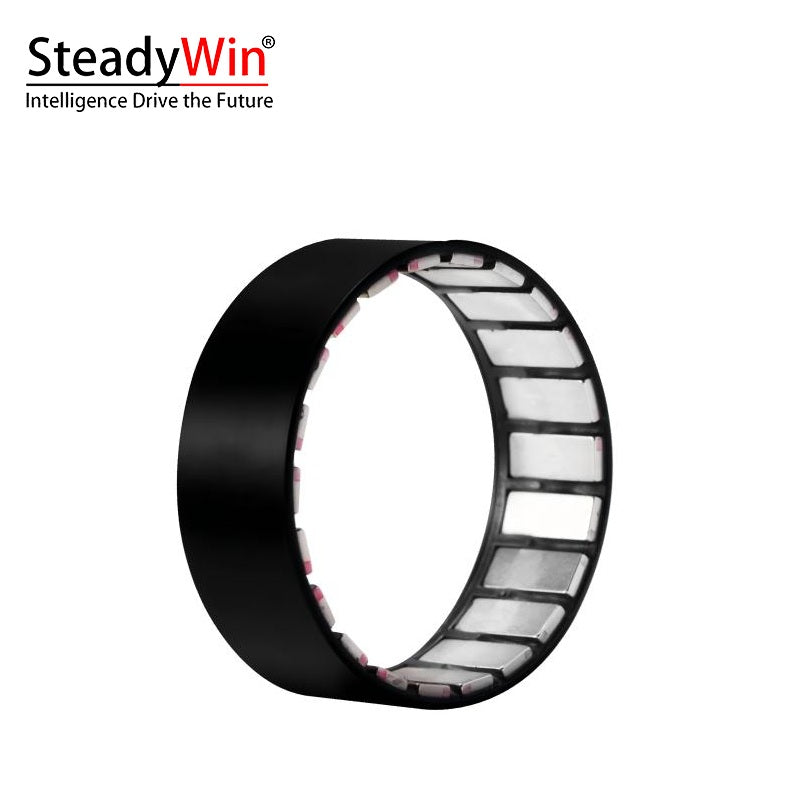

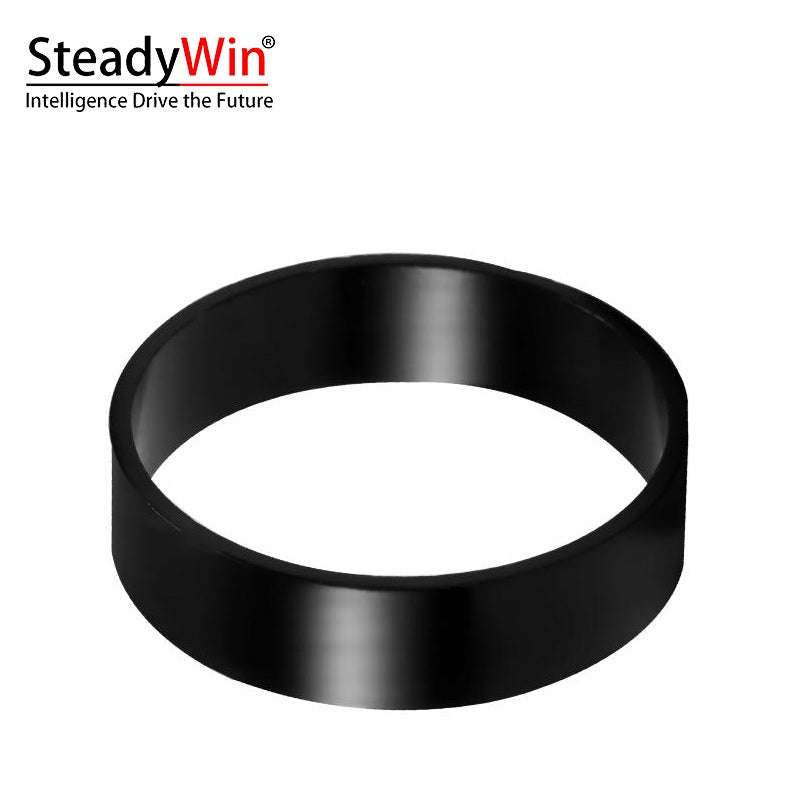

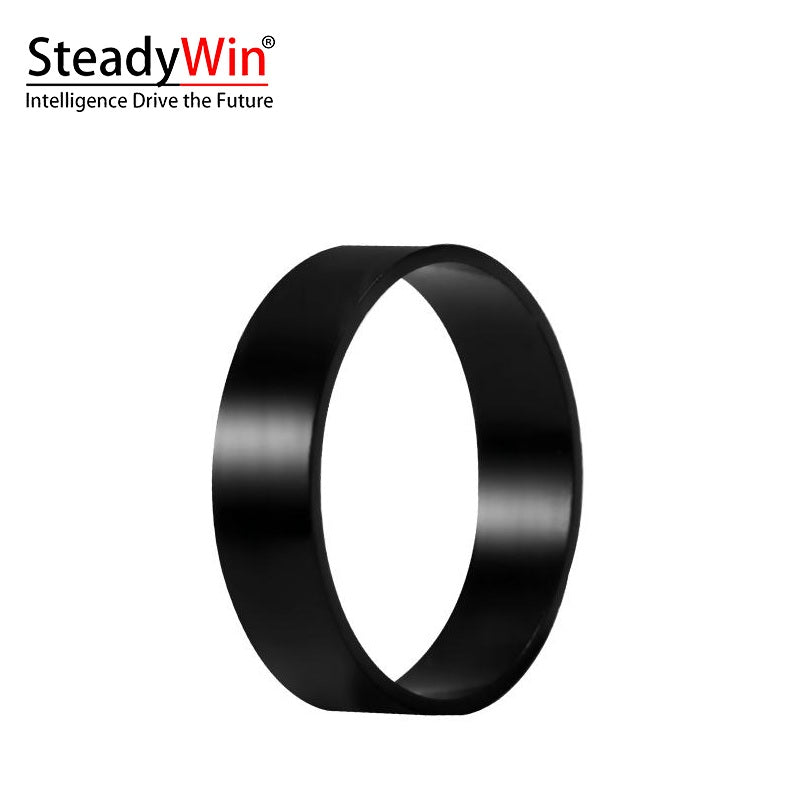

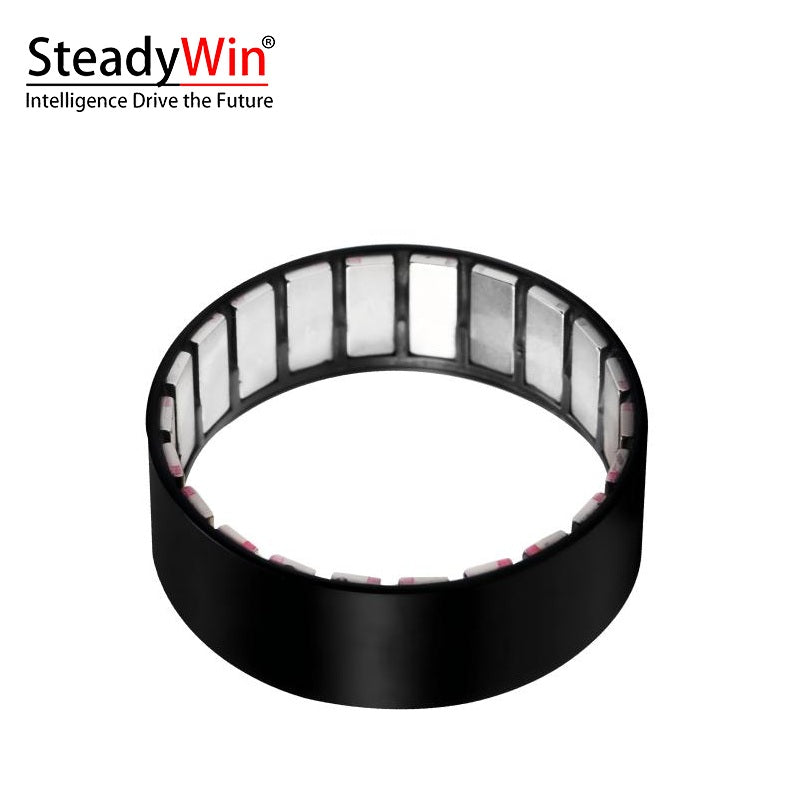

SteadyWin WK3510 Motor - WK3510 Magnetic Ring Rotor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SteadyWin WK3510 Motor
Regular price
$15.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value（WK3510） | Value（WK3510CH） |
|---|---|---|
| Nominal voltage | 12V | 12V |
| Nominal current | 0.53A | 0.53A |
| Nominal torque | 0.11N.M | 0.06N.M |
| Nominal speed | 363rpm | 363rpm |
| Max speed |
965rpm |
965rpm |
| Stall torque | 0.16N.M | 0.08N.M |
| Stall current | 0.8A | 0.8A |
| Winding turns of motor | 40T | 40T |
| Interphase resistance | 8.53Ω | 8.53Ω |
| Interphase inductance |
1.9Mh |
1.9Mh |
| Speed constant | 80rpm/v | 80rpm/v |
| Torque constant | 0.2N.M/A | 0.1N.M/A |
| Rotor inertia | 76gcm^2 | 33gcm^2 |
| Number of pole pairs | 11Pairs | 11Pairs |
| Working temperature | -20~80℃ | -20~80℃ |
| Max demagnetize tempersture |
120℃ |
120℃ |

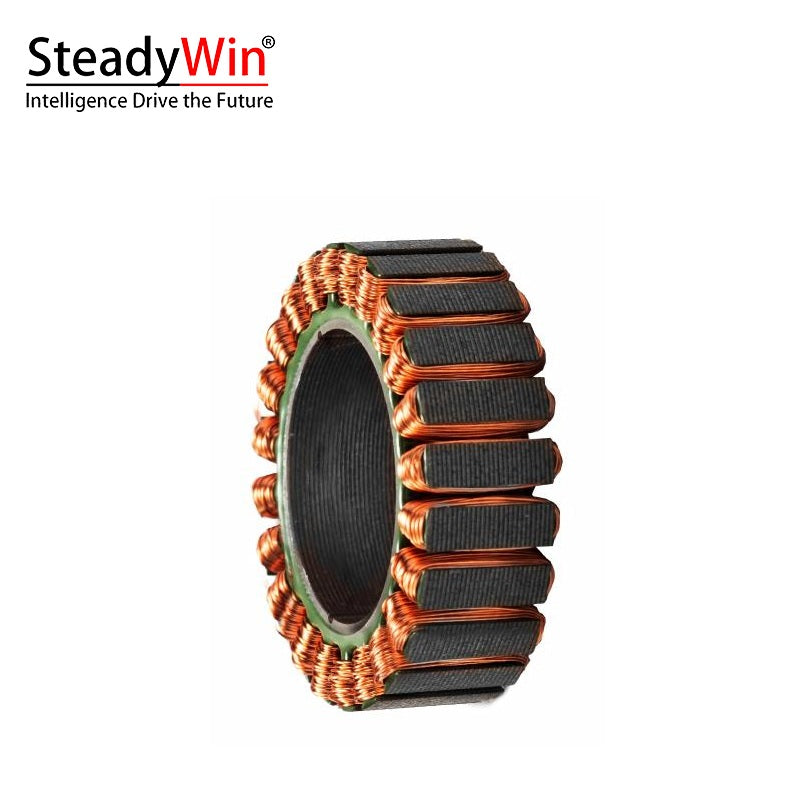

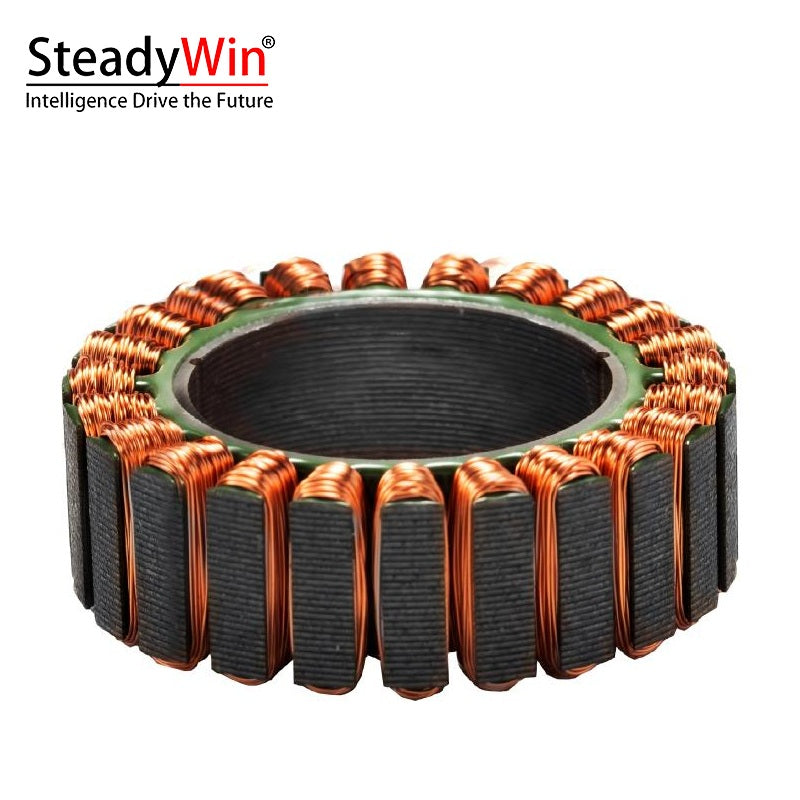

| Inner diameter of the stator | 22mm | 22mm |
| Motor size | Ø40*13.7mm | Ø38.4*13mm |
| Motor weight | 47g | 36g |
