Feetech

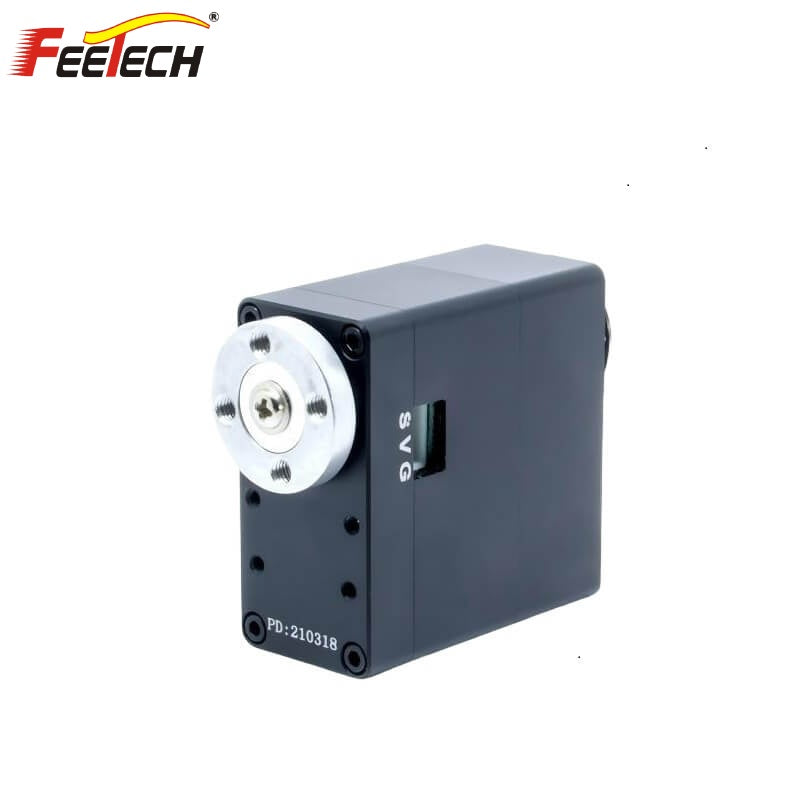

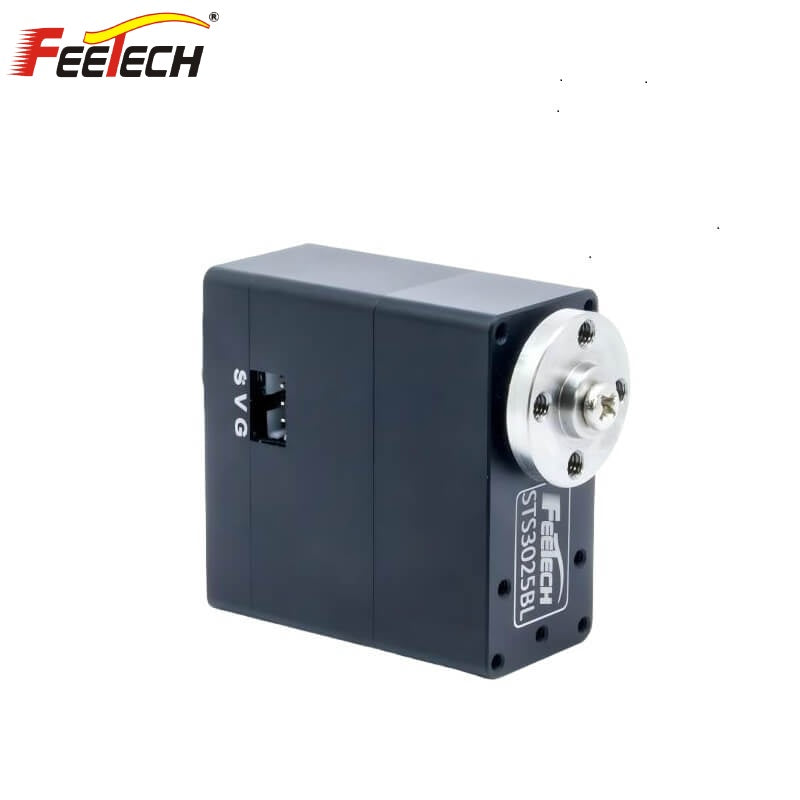

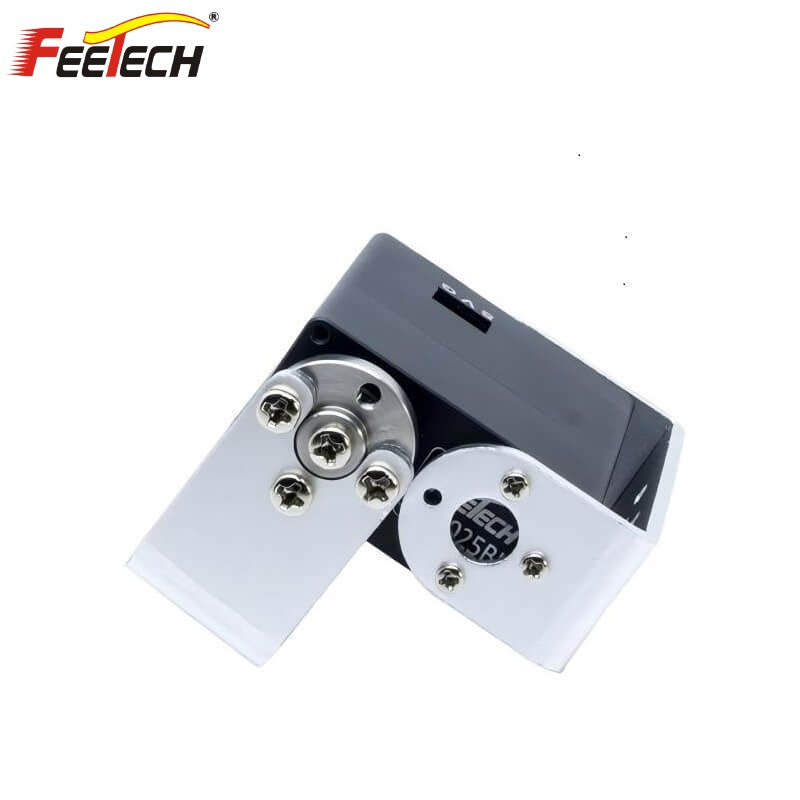

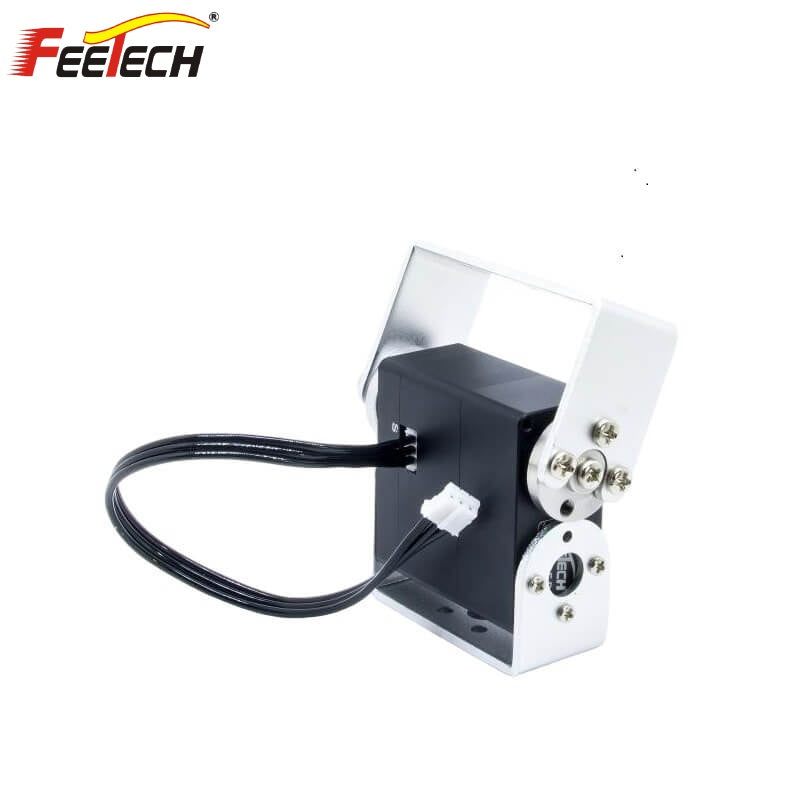

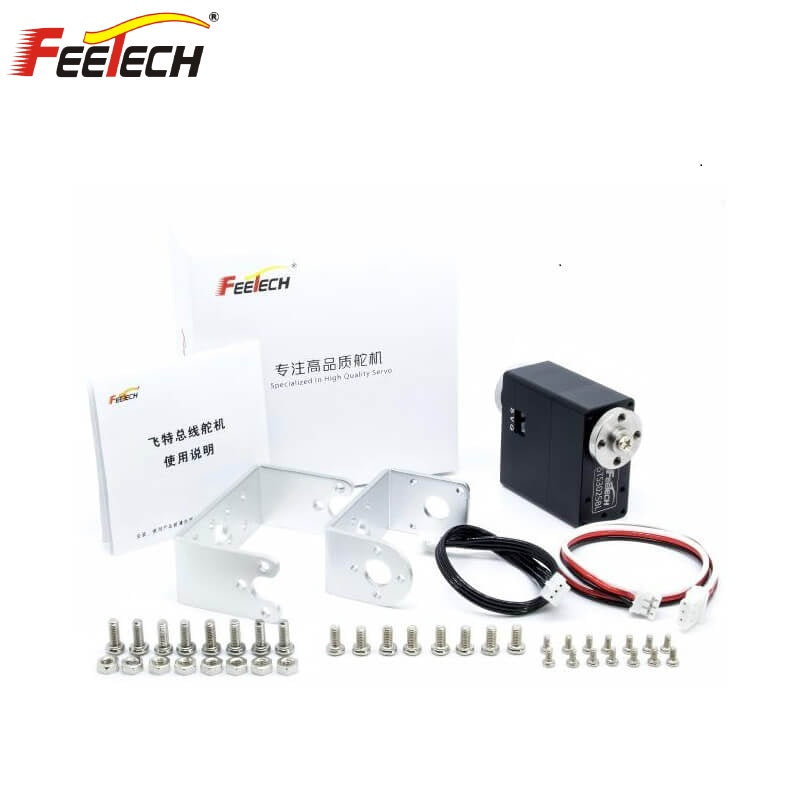

FEETECH STS3025BL Servo Motor

$110.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Value
Model ST-3025-C001 ST-3025-C002
Product Name 12V 20KG Magnetic Encoder Double Shaft TTL  Servo 12V 40KG Magnetic Encoder Double Shaft TTL  Servo
Storage Temperature Range -30℃～80℃
 -30℃～80℃
Operating Temperature Range -20℃～60℃ -20℃～60℃
Size A：40mm B：20mm C：40mm A：40mm B：20mm C：40mm
Weight 89± 1g  89± 1g
Gear type Steel Gear Steel Gear
Limit angle NO limit
 NO limit
Bearing Ball bearings
 Ball bearings
Horn gear spline 25T/OD5.9mm 25T/OD5.9mm
The rocker phantom 0° 0°
Case Aluminium Aluminium
Connector wire 15CM 15CM
Motor Brushless Motor
 Brushless Motor
Operating Voltage Range 12V 12V
No load speed 0.059sec/60°（170RPM）@12V 0.117sec/60°（85RPM）@12V
Runnig current(at no load)  380mA@12V 380mA@12V
Peak stall torque 20kg.cm@12V 40kg.cm@12V
Rated torque 6.5kg.cm@12V 10kg.cm@12V
Stall current 4.4A@12V 4.4A@12V
Command signal Digital Packet Digital Packet
Protocol Type Half Duplex Asynchronous Serial Communication Half Duplex Asynchronous Serial Communication
ID range 0-253 0-253
Communication Speed 38400bps ~ 1 Mbps 38400bps ~ 1 Mbps
Running degree 360° (when 0~4096) 360° (when 0~4096)
Feedback Load, Position,Speed, Input Voltage,Current，Temperature Load,Speed,Input Voltage,Current,Temperature
