Feetech | SKU:
FEETECH SCS46 Servo Motor
Regular price
$85.00
Unit price
/
Unavailable
FEETECH SCS46 Servo Motor - SC-4600-C001 (7.4V 40KG / single-axis 25T) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

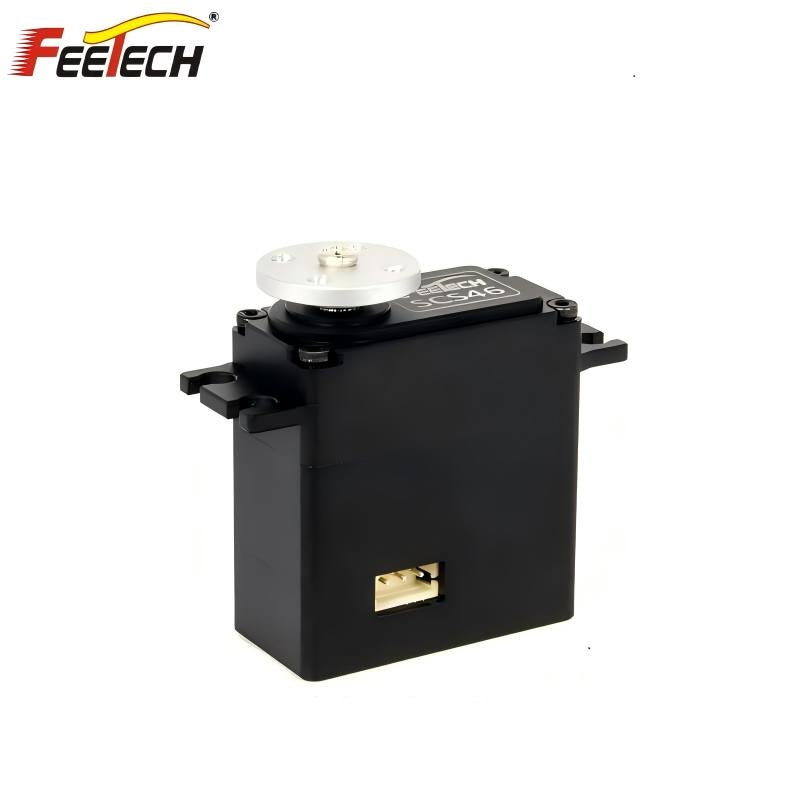

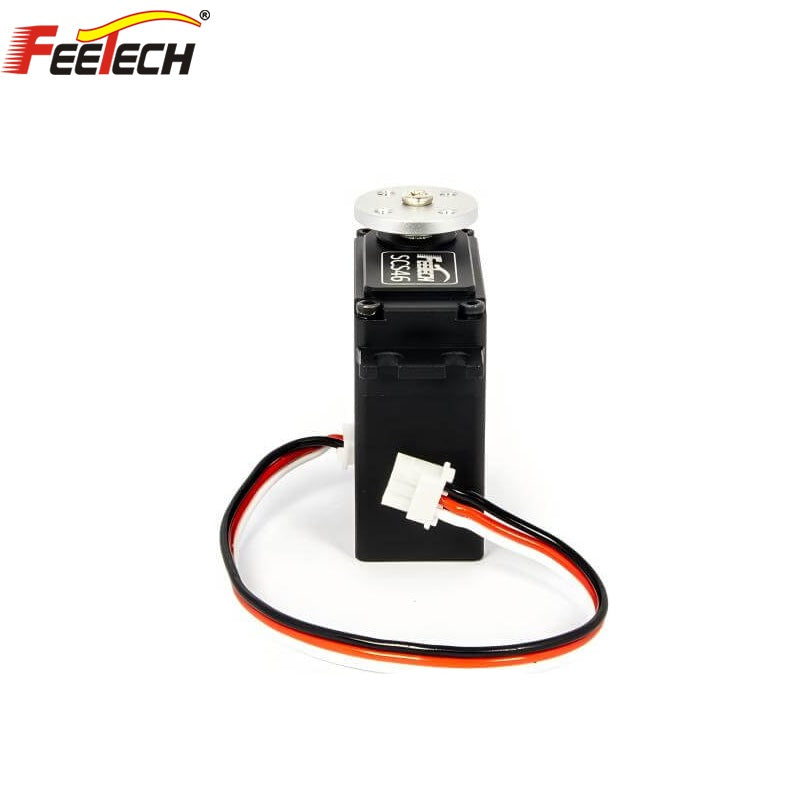

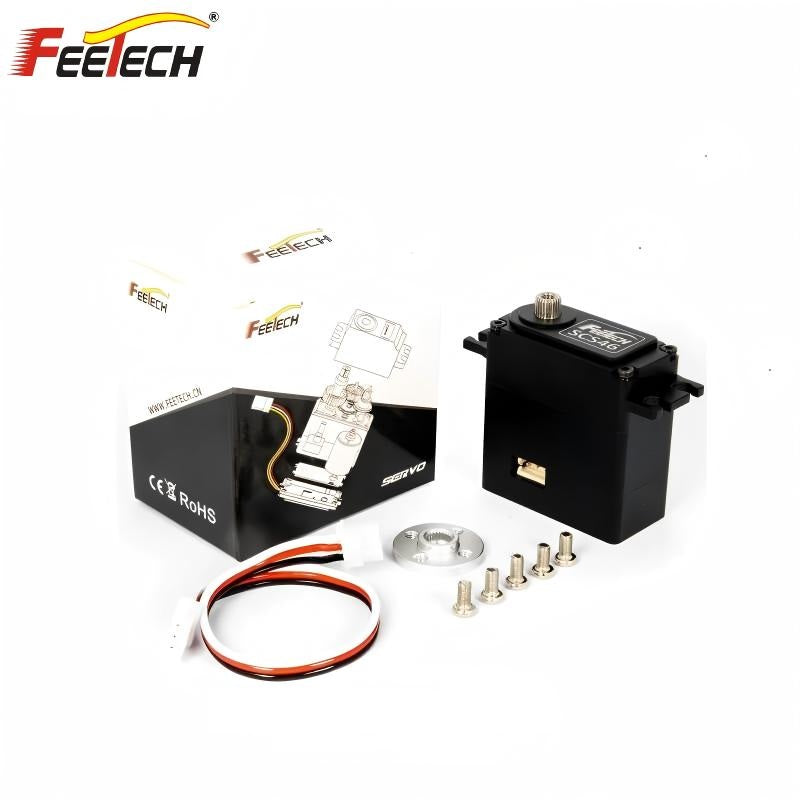

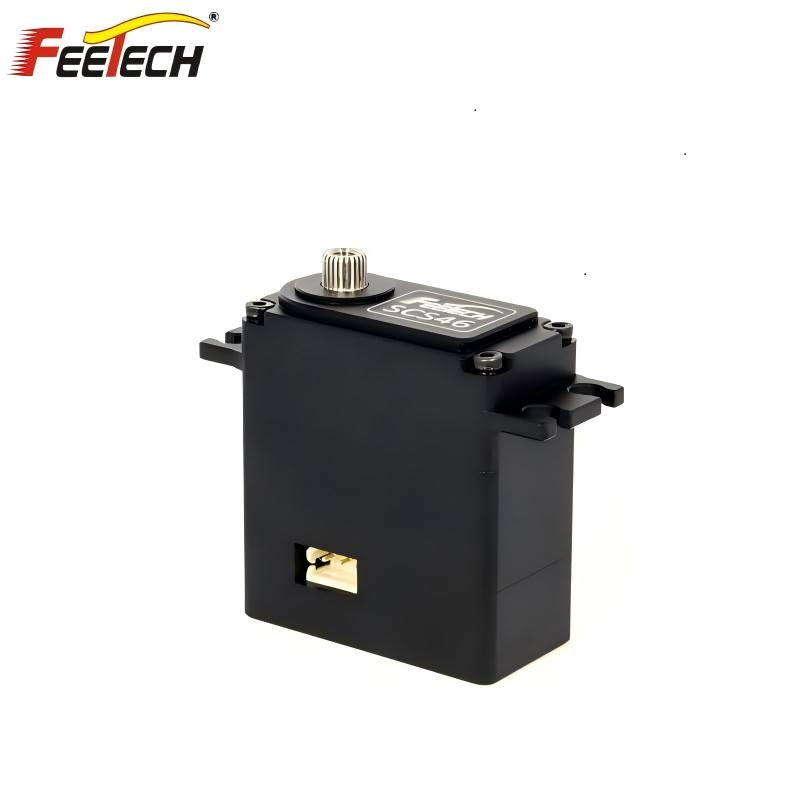

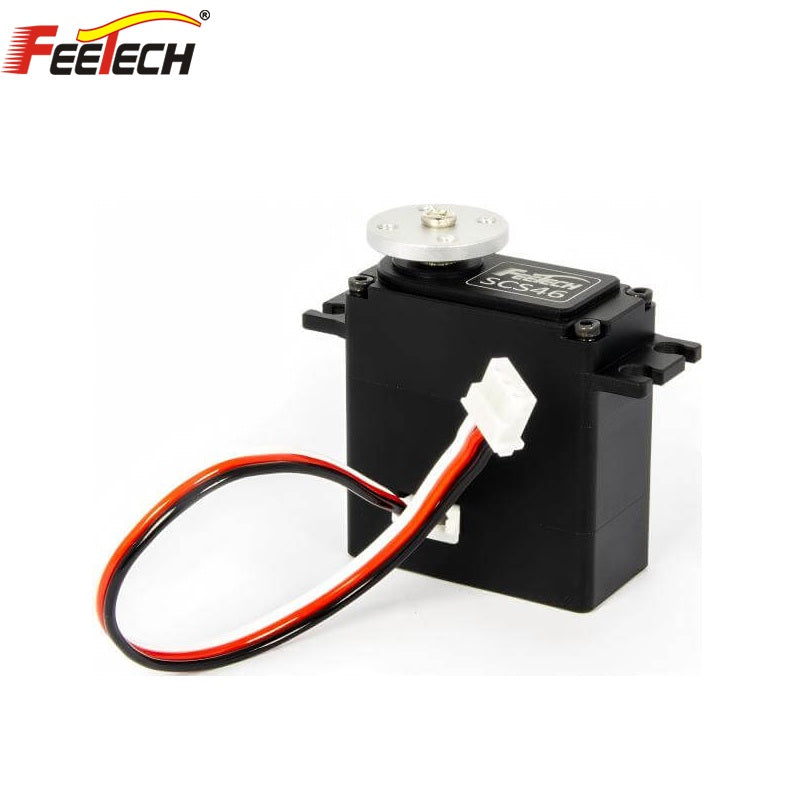

FEETECH SCS46 Servo Motor
Regular price
From
$85.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SC-4600-C001 |
| Product Name | 7. 4V 40kg. cm Serial Control BUS Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ |
| Size | A：40mm B：20mm C：43.05mm |
| Weight | 89± 1g |
| Gear type | Steel |
| Limit angle |
NO limiter |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/OD5.9mm |
| Horn type | 0° |
| Case | Aluminium |
| Connector wire | 150mm ±5 mm |
| Motor |
Coreless Motor |
| Operating Voltage Range | 6-7.4V |
| No load speed | 0.22sec/60°@7.4V |
| Runnig current(at no load) | 300 mA@7.4V |
| Peak stall torque | 40.5kg.cm@7.4V |
| Rated torque | 13.5kg.cm@7.4V |
| Stall current | 4.4mA@7.4V |
| Command signal | Digital Packet |
| Protocol Type | Half duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 300° |
| Feedback | Load, Position,Speed, Input Voltage,Current，Temperature |
| Position Sensor Resolution | 0.293°(300°/1024) |
