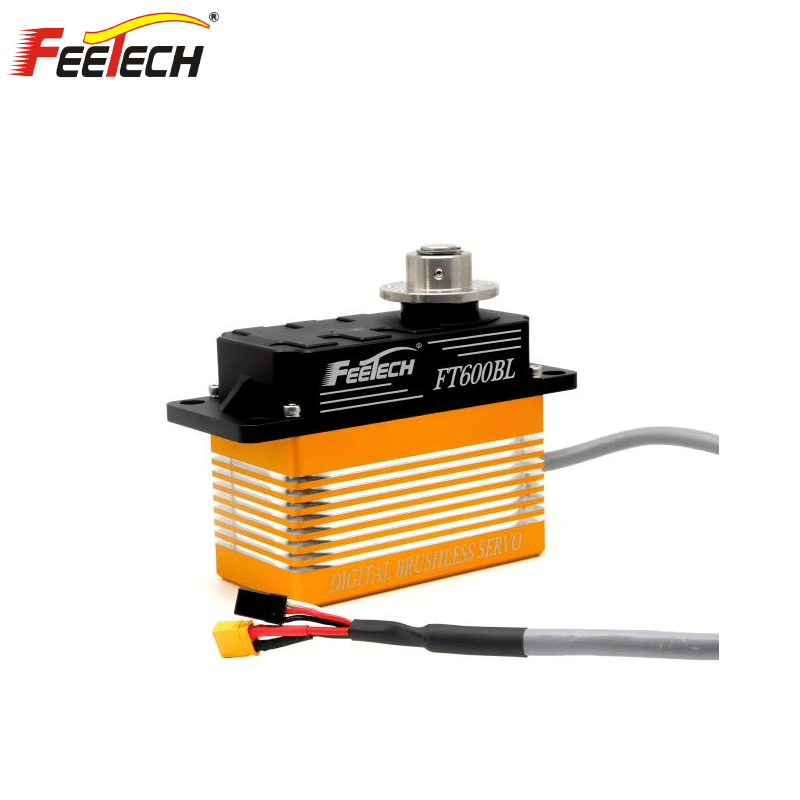

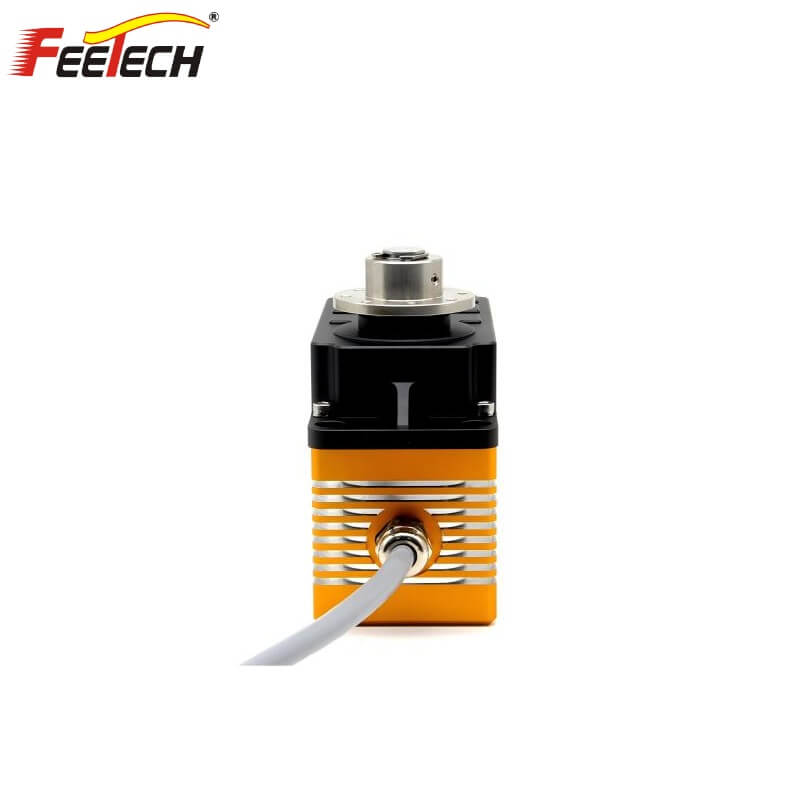

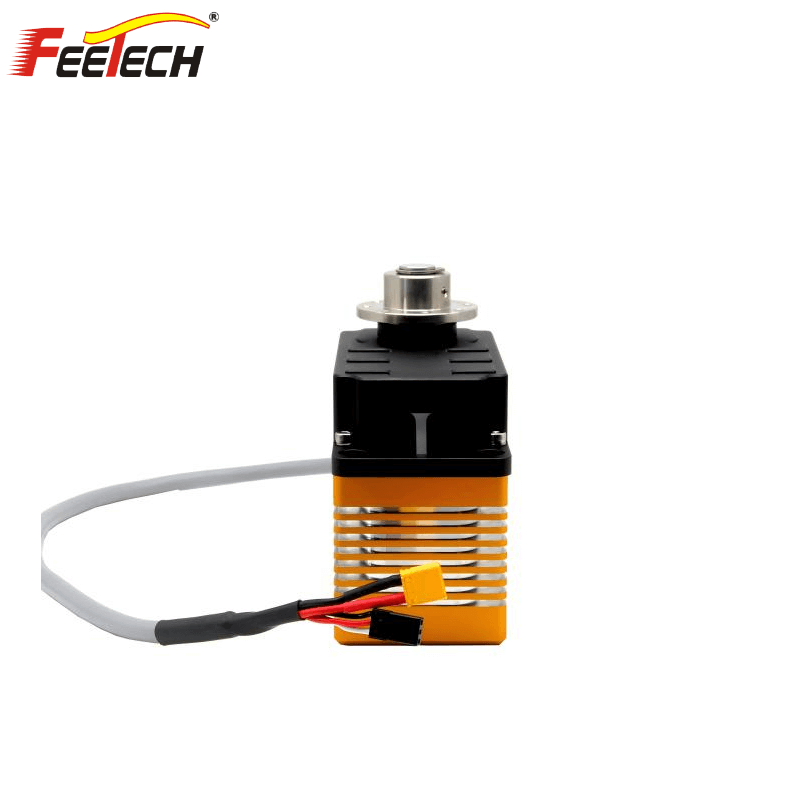

FEETECH FT600B Servo Motor
Regular price
$615.00
Unit price
/
Unavailable
FEETECH FT600B Servo Motor - FT600B-C001 + PWM pulse signal control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT600B Servo Motor
Regular price
From
$615.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT-600B-C001 |
| Product Name | 24V 600kg.cm 180 Degree Servo |
| Storage Temperature Range |
-40℃～80℃ |
| Operating Temperature Range | -40℃～60℃ |
| Size | A：100mm B：51mm C: 81.4mm |
| Weight | 800±5g |
| Gear type | Steel |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | Round (12mm) |
| Gear Ratio | 1/390 |
| Case | Aluminum |
| Connector wire | 43±1CM |
| Motor |
Brushless Motor |
| Operating Voltage Range | 16-28V |
| Idle current(at stopped) | 20mA@24V |
| No load speed | 0.588sec/60°(17RPM)@24V |
| Runnig current(at no load) | 300mA@24V |
| Peak stall torque | 600kg.cm@24V |
| Rated torque | 200kg.cm@24V |
| Stall current | 9.8A@24V |
| Command si gnal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180±5°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Clockwise (1500→2000 μ sec) |
