Feetech

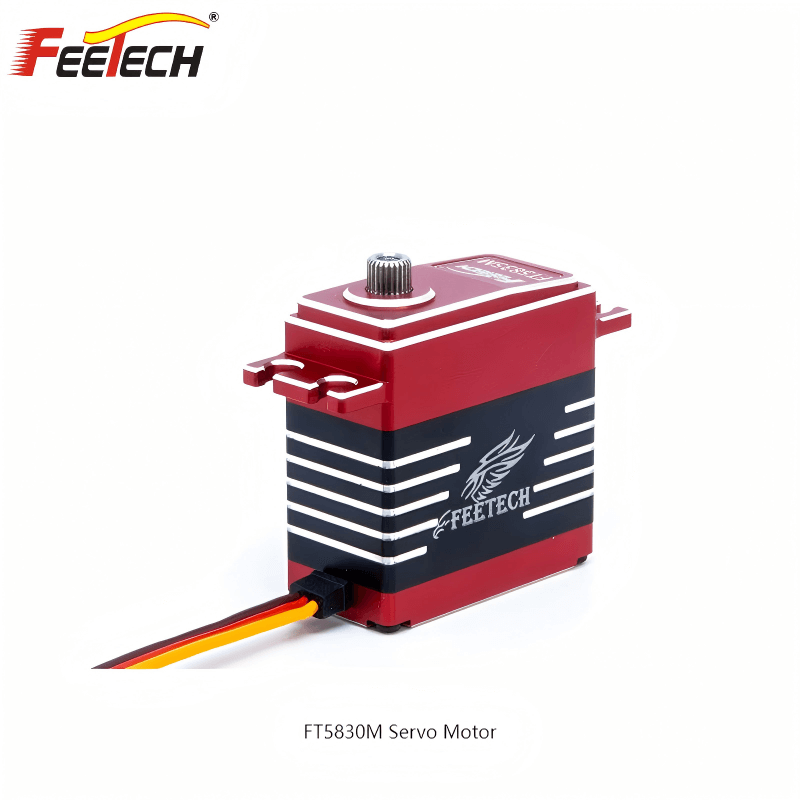

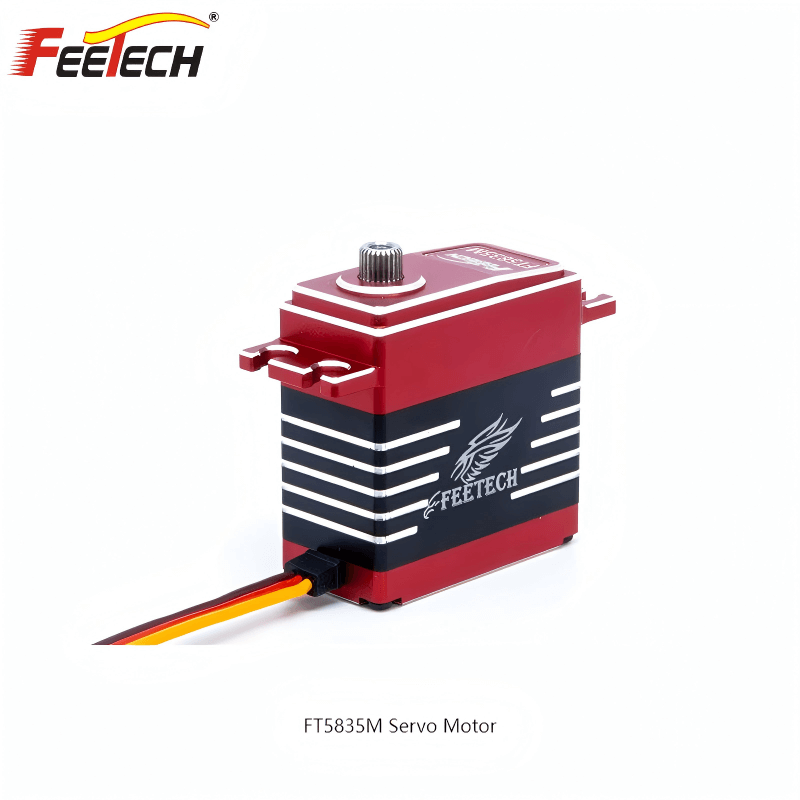

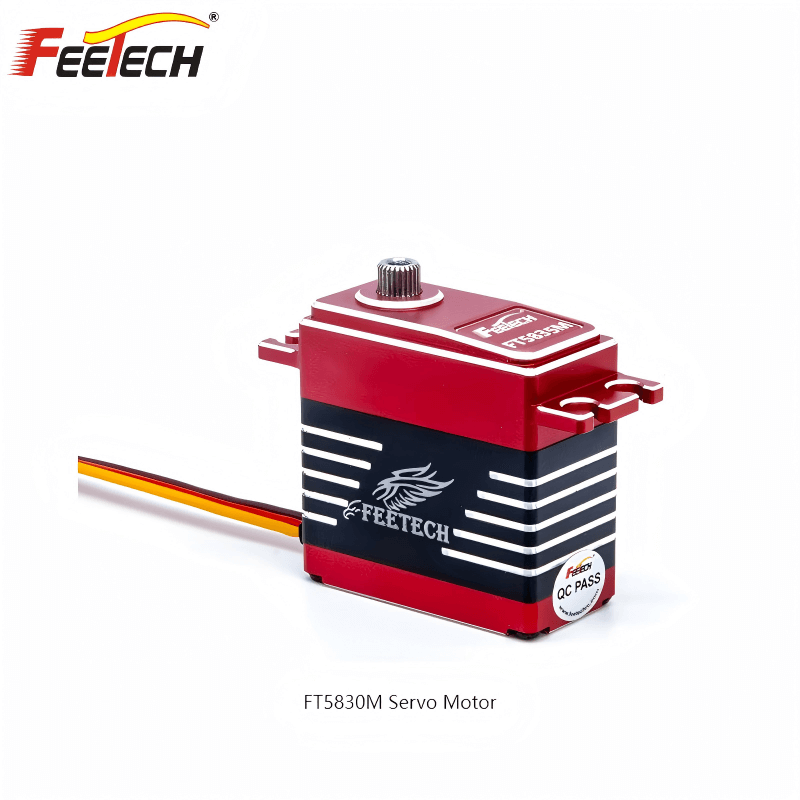

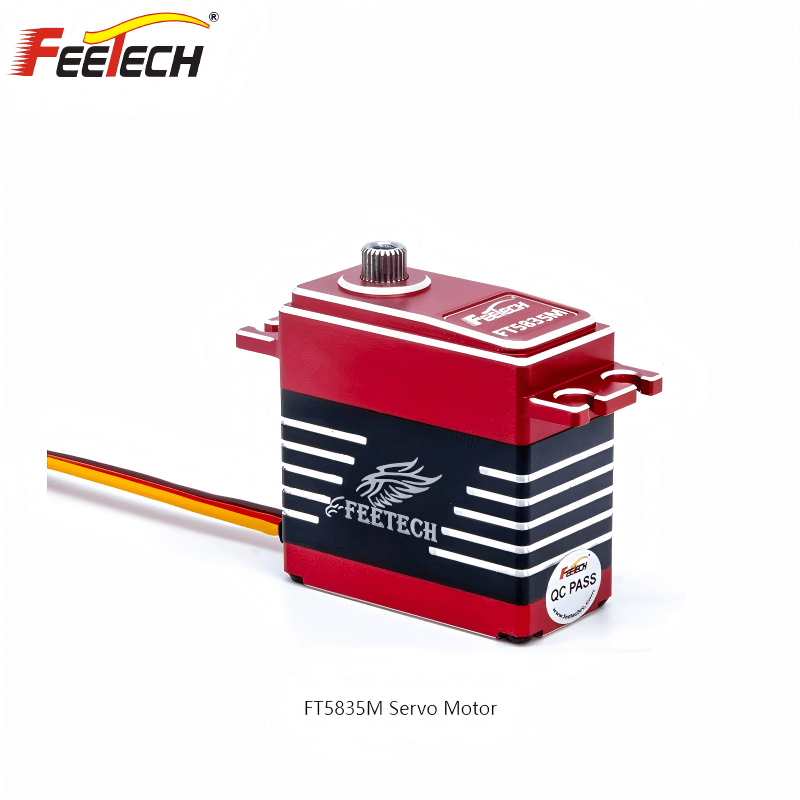

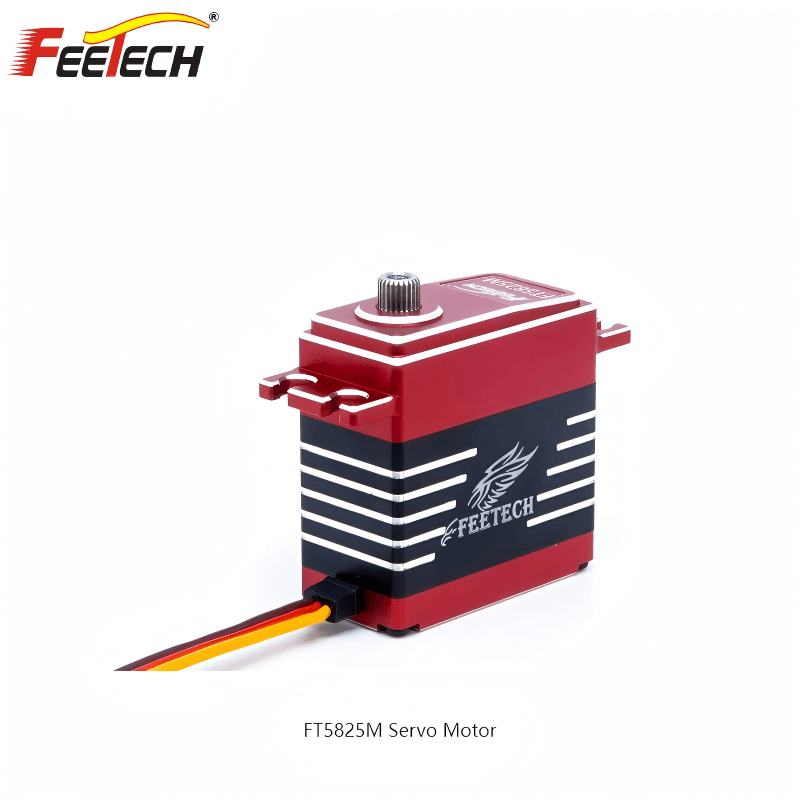

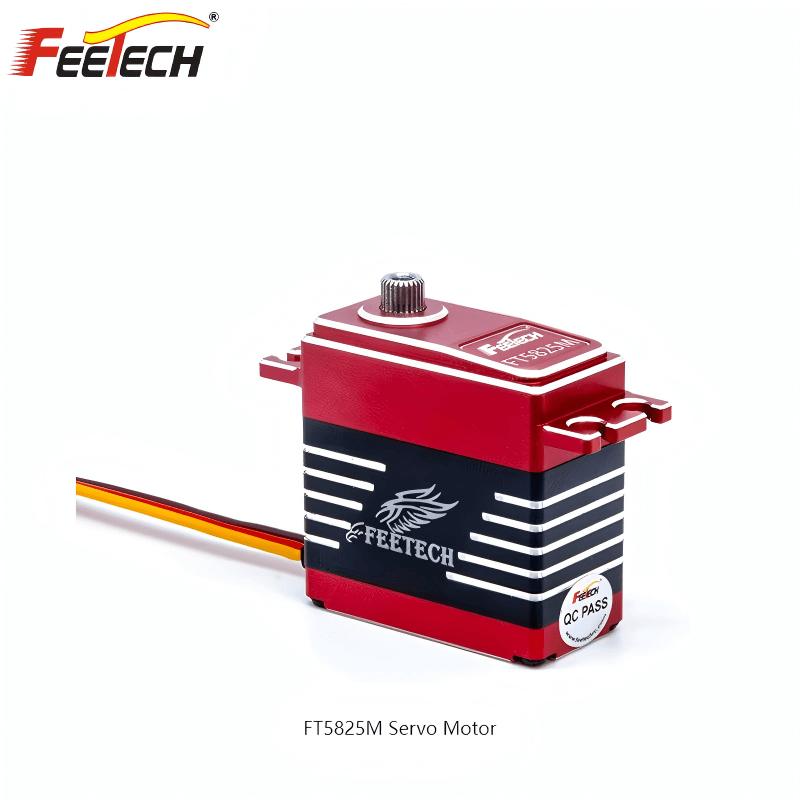

FEETECH FT58 Series Servo Motor

$35.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter
Value

Model FT5825M FT5830M FT5835M
Product Name 7.4V 25kg.cm digital 180-degree metal shell steel gear core servo 7.4V 30kg.cm digital 180-degree metal shell steel gear core servo 7.4V 35kg.cm digital 180-degree metal shell steel gear core servo
Storage Temperature Range -30℃～80℃
 -30℃～80℃ -30℃～80℃
Operating Temperature Range -20℃～60℃ -20℃～60℃ -20℃～60℃
Size A：40mm B：20mm C: 43mm  A：40mm B：20mm C: 43mm  A：40mm B：20mm C: 43mm
Weight 74± 1g 74± 1g 74± 1g
Gear type Steel Steel Steel
Limit angle NO limit
 NO limit NO limit
Bearing Ball bearings
 Ball bearings Ball bearings
Horn gear spline 25T/5.9mm 25T/5.9mm 25T/5.9mm
Gear Ratio 1/275 1/356 1/356
Case Aluminum Aluminum Aluminum
Connector wire 30CM 30CM 30CM
Motor Core Motor Core Motor Core Motor
Operating Voltage Range 4.8-8.4V 4.8-8.4V 4.8-8.4V
Idle current (atstopped)  6MA@7.4V 6MA@7.4V 6MA@7.4V
Idle current(at stopped) 5mA-6mA

No load speed

0.151sec/60°@7.4V

 0.192sec/60°@7.4V

0.192sec/60°@7.4V
Runnig current(at no load)  250mA@7.4V 250mA@7.4V 290mA@7.4V
Peak stall torque

25kg.cm@7.4V

30.5kg.cm@7.4V

35.5kg.cm@7.4V
Rated torque 8.3kg.cm@7.4V 10.1kg.cm@7.4V 11.8kg.cm@7.4V
Stall current 3.5A@7.4V 3.5A@7.4V 3.9A@7.4V
Command si gnal Pulse width modification Pulse width modification Pulse width modification
Amplifier type Digital comparator Digital comparator Digital comparator
Pulse width range 500~2500 μ sec 500~2500 μ sec 500~2500 μ sec
Stop position 1500 μ sec 1500 μ sec 1500 μ sec
Running degree 180°(when 500～2500 μsec) 180°(when 500～2500 μsec) 180°(when 500～2500 μsec)
Rotating direction ≤4 μ sec ≤4 μ sec ≤4 μ sec

FT5825M-PRODUCT_SPECIFICATION.pdf
