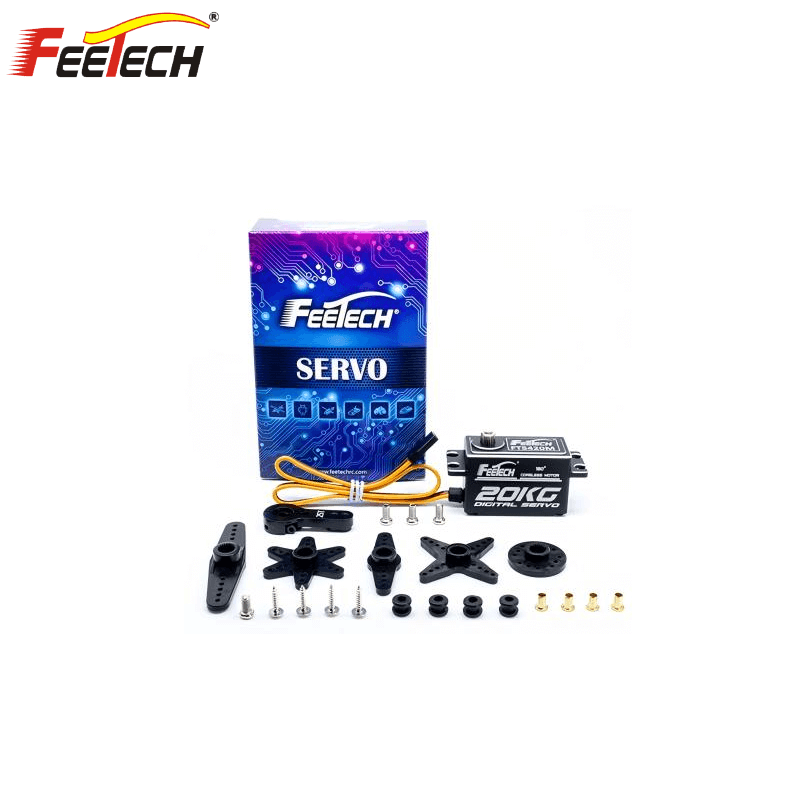

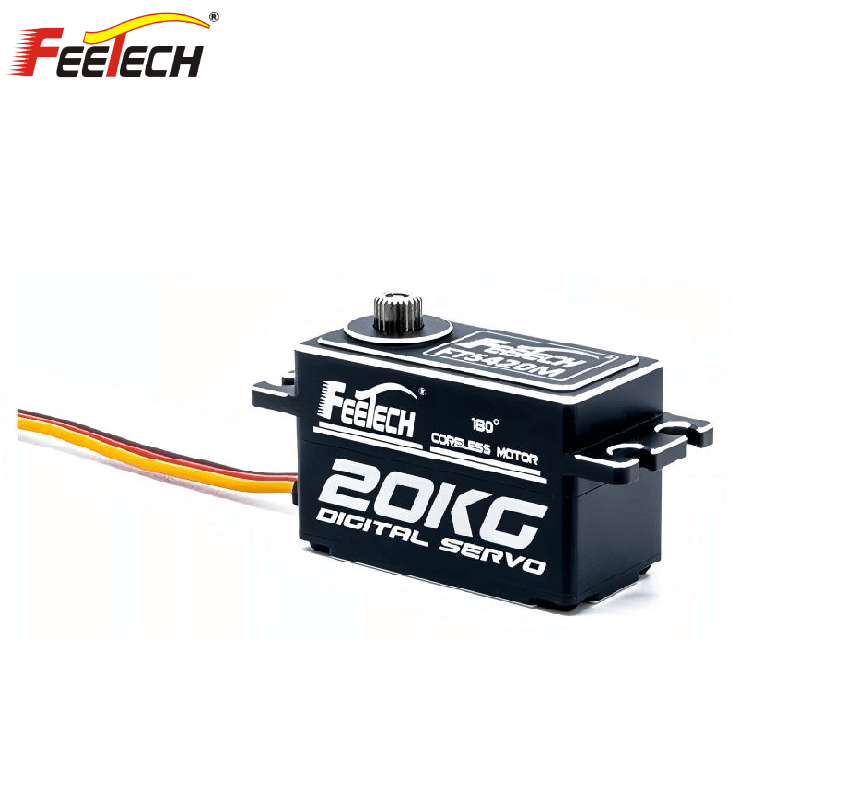

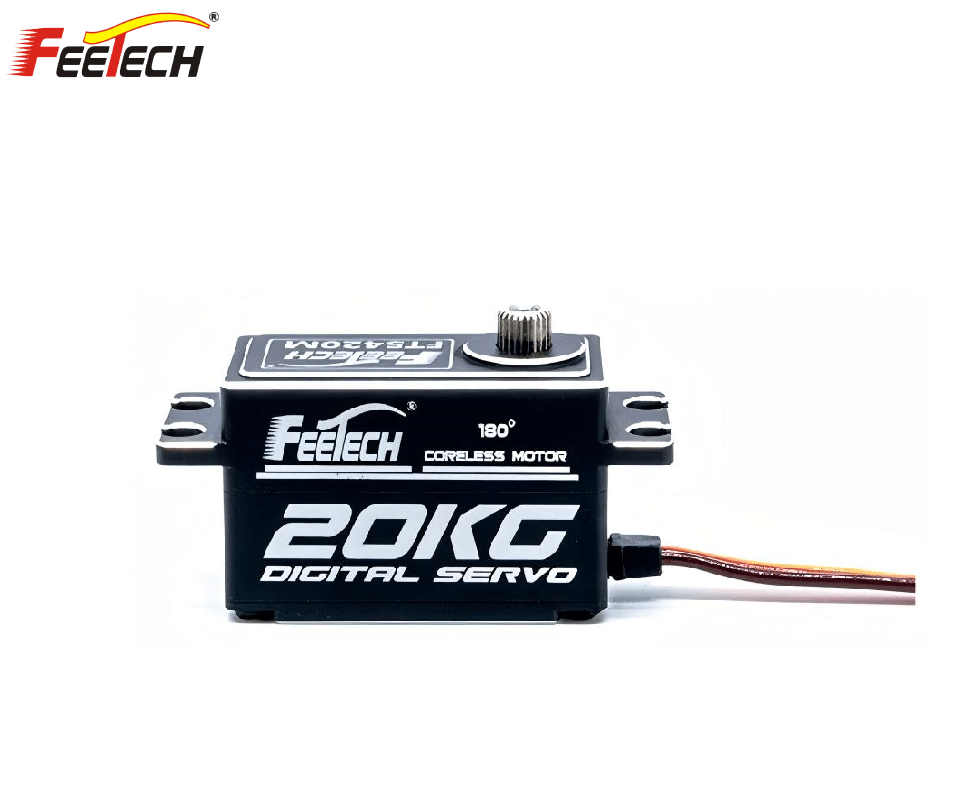

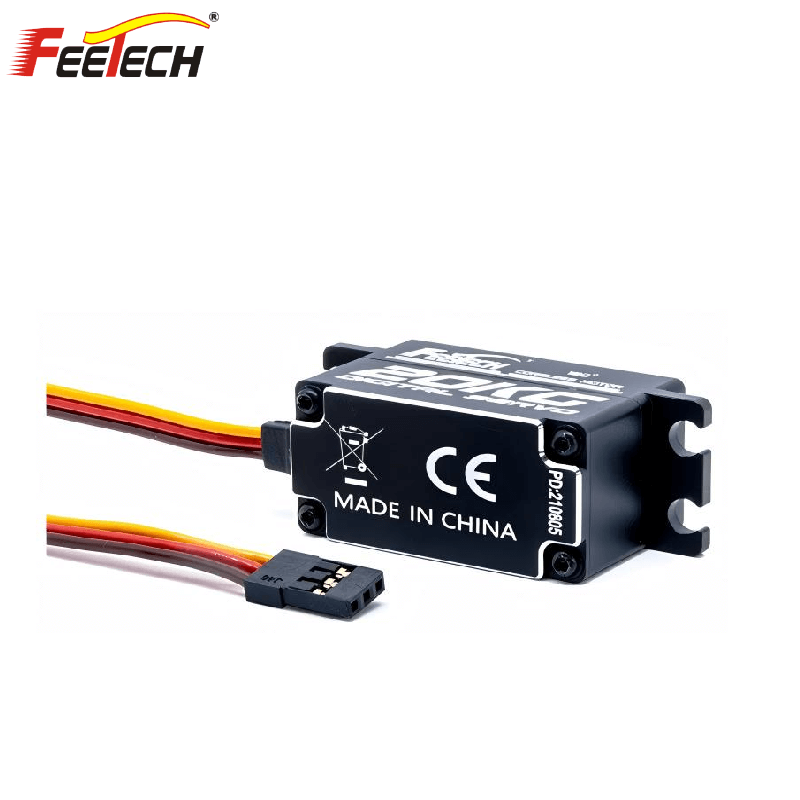

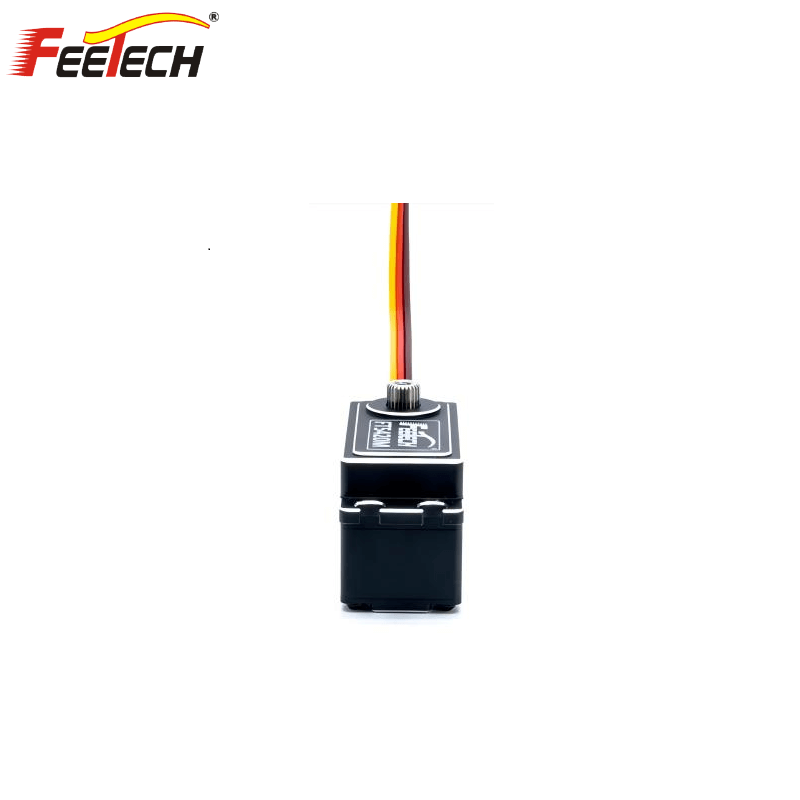

FEETECH FT5420M Servo Motor
Regular price
$25.00
Unit price
/
Unavailable
FEETECH FT5420M Servo Motor - FT5420M-C001 (7.4V20KG) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT5420M Servo Motor
Regular price
$25.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT5420M-C001 |
| Product Name | 180 Degree Steel Gear Coreless Motor Digital Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Size | A：40.6mm B：20mm C：26.6mm |
| Weight | 60.6± 1g |
| Gear type | Steel |
| Limit angle |
180degree |
| Bearing |
Ball bearings |
| Horn gear spline | 25T(4.86) |
| Gear Ratio | 1/258 |
| Case | Aluminum |
| Connector wire | 30CM |
| Motor |
Coreless Motor |
| Operating Voltage Range | 4V-12V |
| Idle current(at stopped) | 6MA@8.4V |
| No load speed | 0.095sec/60°@8.4V |
| Runnig current(at no load) | 380mA@8.4V |
| Peak stall torque | 22.5kg.cm@8.4V |
| Rated torque | 7.5kg.cm@8.4V |
| Stall current | 2.95A@8.4V |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180°± 5° (at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Counterclockwise (1500→2000 μ sec) |
| Electronic Protection | Stall 8sec |
