Feetech | SKU:
FEETECH FT5118M Servo Motor
Regular price
$20.00
Unit price
/
Unavailable
FEETECH FT5118M Servo Motor - FT5118M is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

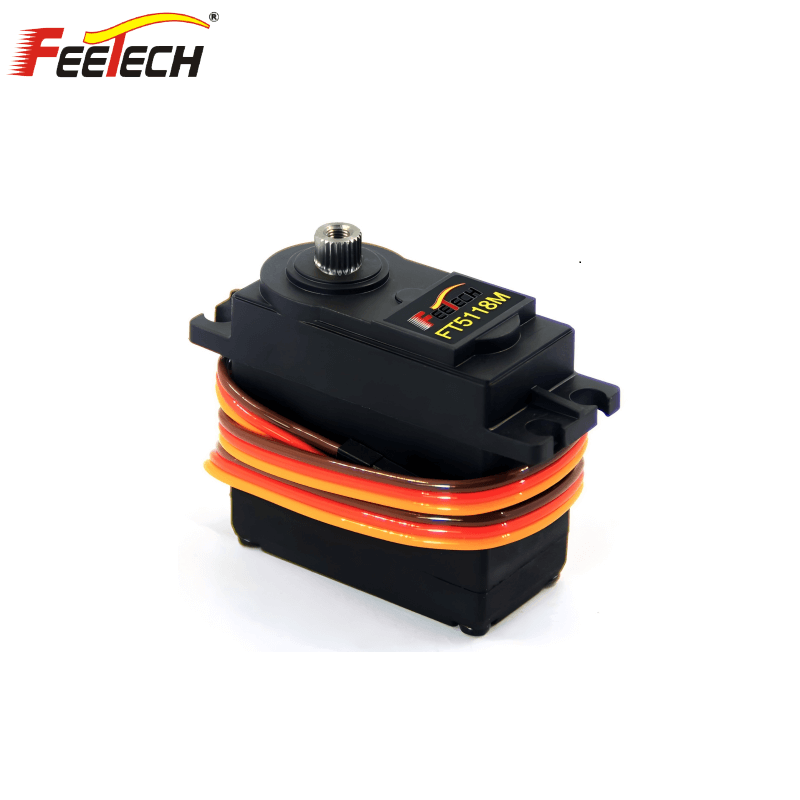

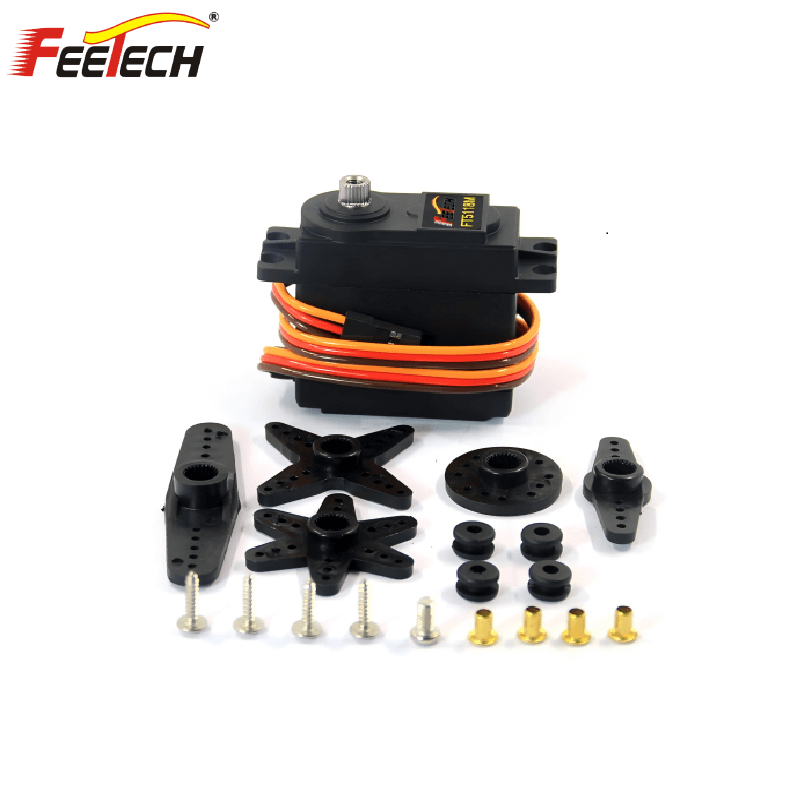

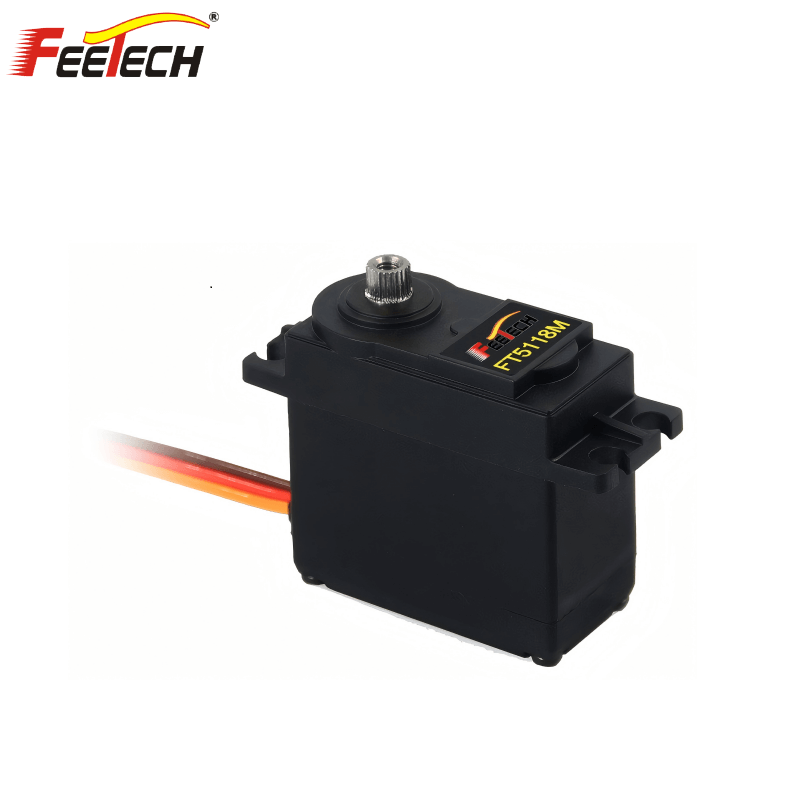

FEETECH FT5118M Servo Motor
Regular price
$20.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT5118M |
| Product Name | 6V 1.5kg.cm Digital Servo |
| Supporting dual-mode switching debug board | FRS |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ |
| Size | A：40.1mm B：20.1mm C：38.9mm |
| Weight | 65± 1g |
| Gear type | Steel |
| Limit angle |
No limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Horn type | Plastic,POM |
| Case | PA+Fiberglass |
| Connector wire | 30CM |
| Motor |
Core Motor |
| Operating Voltage Range | 4-8.4V |
| Idle current(at stopped) | 6mA@6V |
| No load speed | 0.167sec/60°@6V |
| Runnig current(at no load) | 150mA @6V |
| Peak stall torque | 17.5kg.cm@6V |
| Rated torque | 6kg.cm@6V |
| Stall current | 2.1A@6V |
| Running degree | 280° (at 500→2500μsec) |
| Rotating direction | Counterclockwise(1500 →2000 μsec) |
