Feetech | SKU:

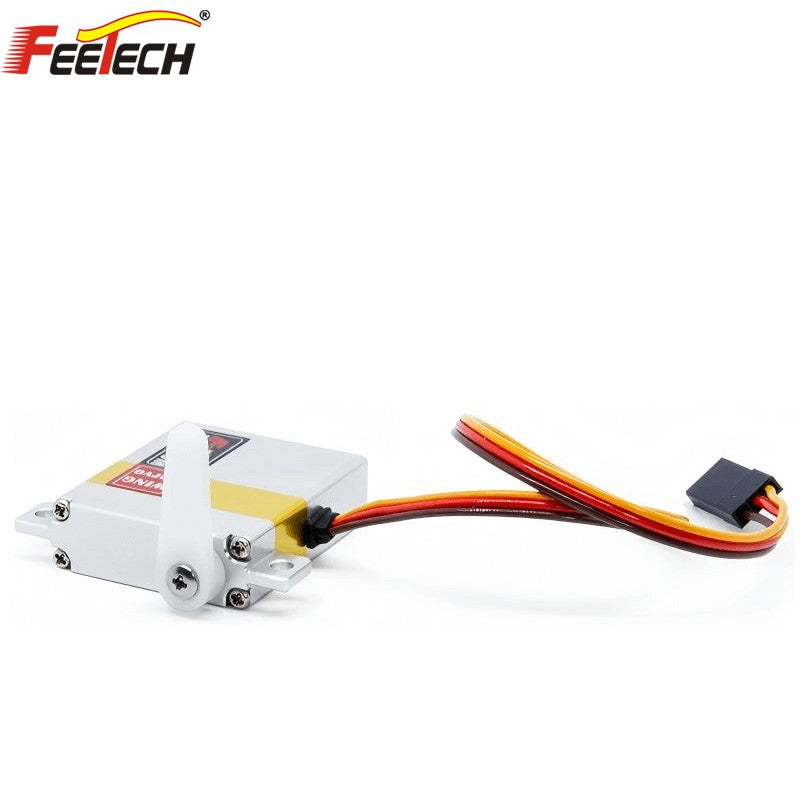

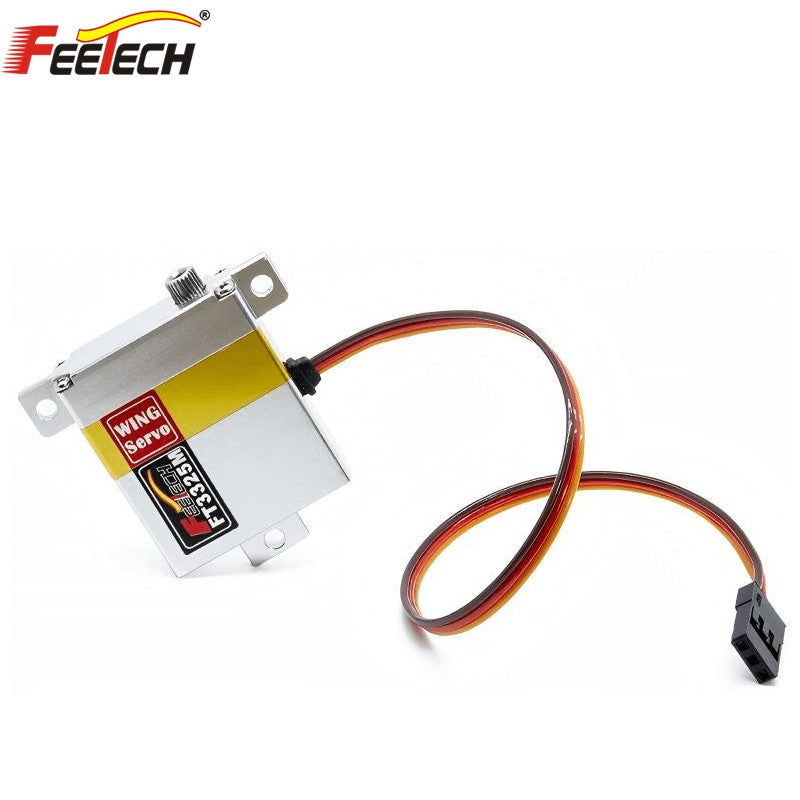

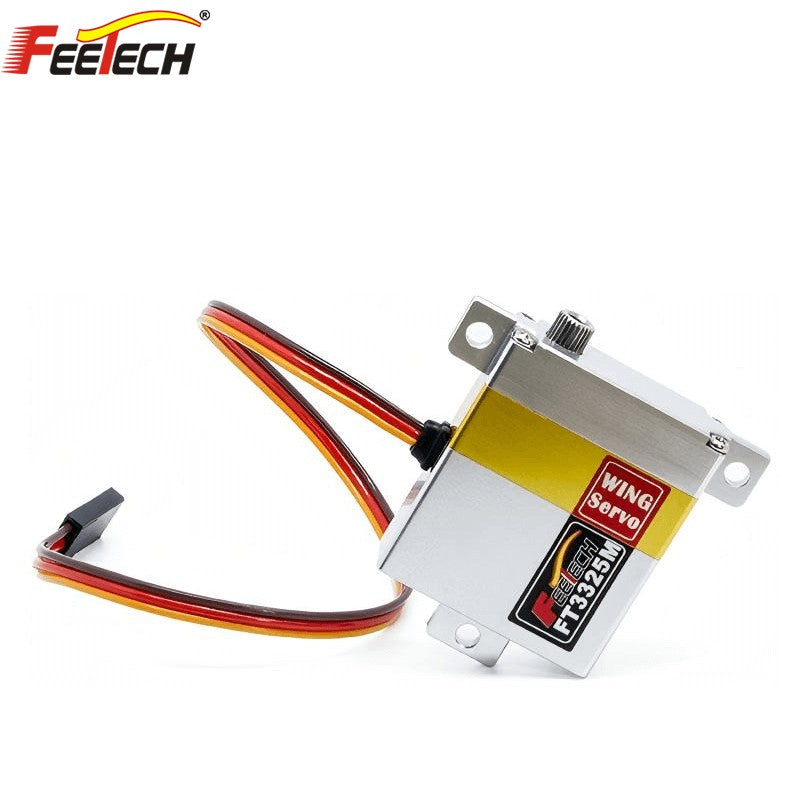

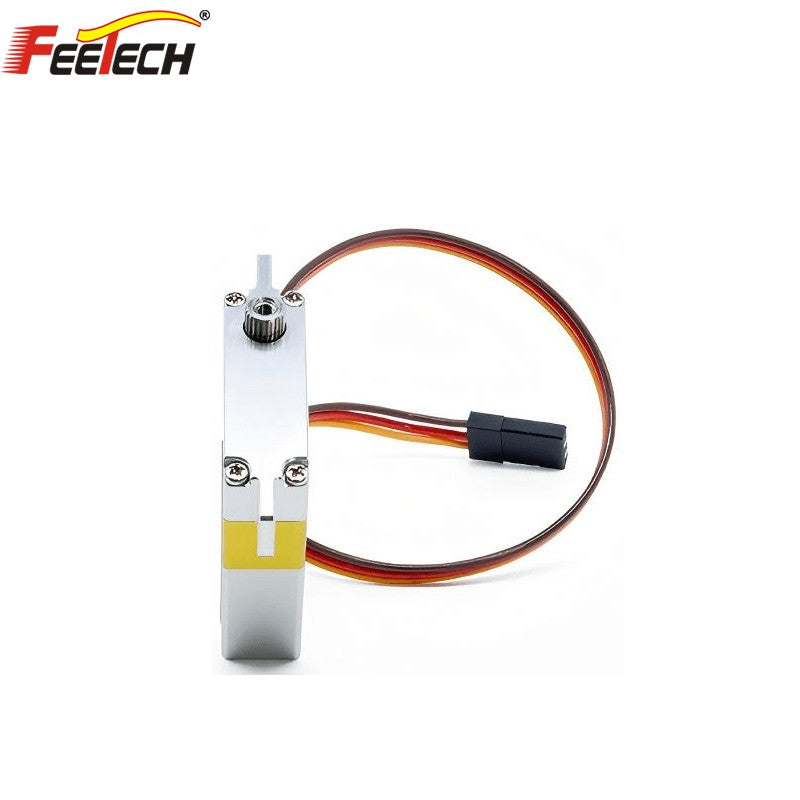

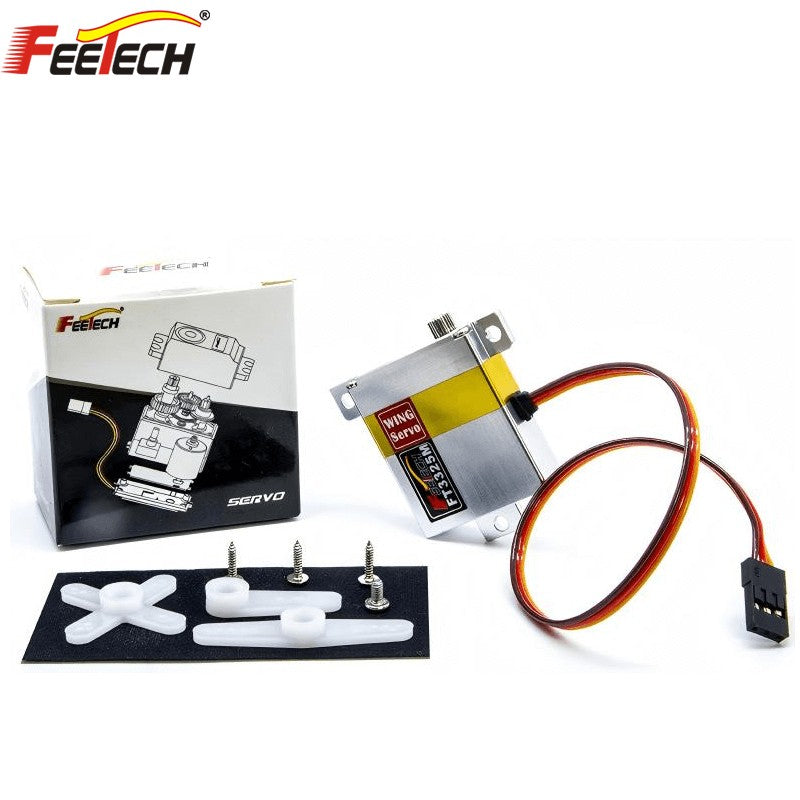

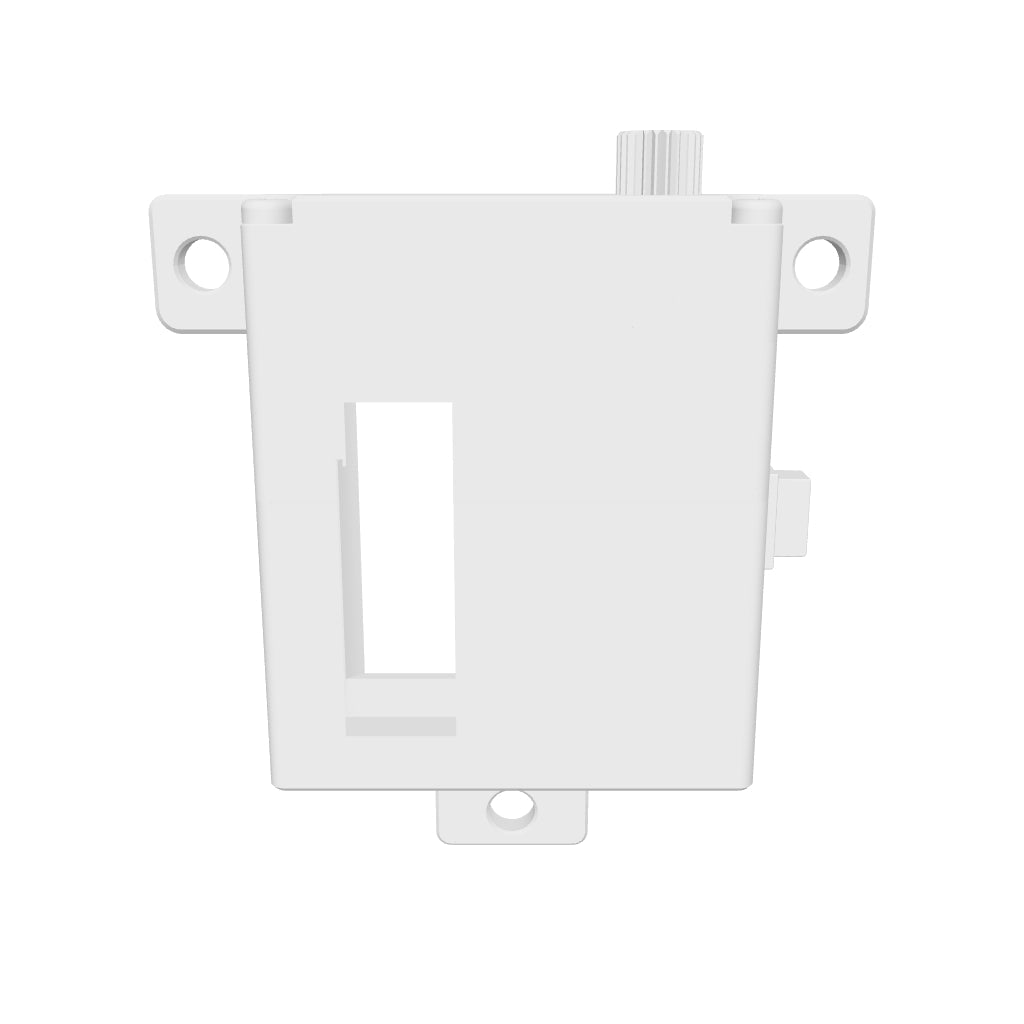

FEETECH FT3325M Servo Motor
Regular price
$40.00
Unit price
/
Unavailable
FEETECH FT3325M Servo Motor - FT3325M is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT3325M Servo Motor
Regular price
$40.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT3325M |
| Product Name | 6V  7kg.cm250 Degree Digital Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ |
| Size | A：30mm B：10mm C：35.7mm |
| Weight | 28.5± 1g |
| Gear type | Metal Gear |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/4.95mm |
| Case | Aluminum |
| Connector wire | 25CM |
| Motor |
Core Motor |
| Operating Voltage Range | 6-8.4V |
| Idle current(at stopped) | 6mA |
| No load speed | 0.095sec/60degree(105RPM)@8.4V |
| Runnig current(at no load) | 150mA@8.4V |
| Peak stall torque | 9.5kg.cm@8.4V |
| Rated torque | 3.1kg.cm@8.4V |
| Stall current | 1200mA@8.4V |
| Command si gnal | Pulse width modulation |
| Amplifier type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 250°(at 500→2500μsec) |
| Dead band width | ≤8 μ sec |
| Rotating direction | Counterclockwise(1500→2000 μsec) |
