Feetech | SKU:

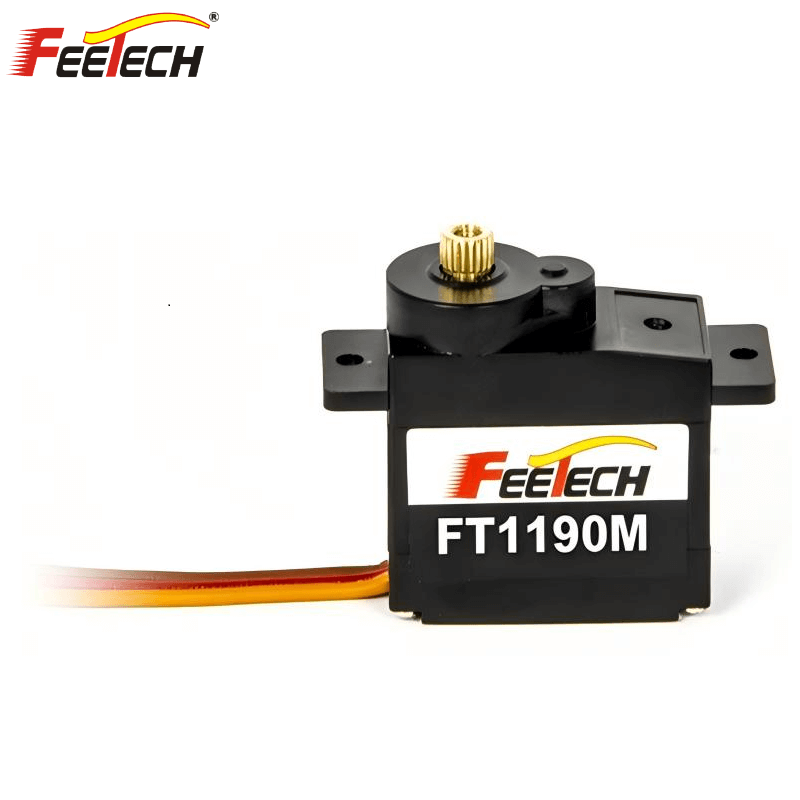

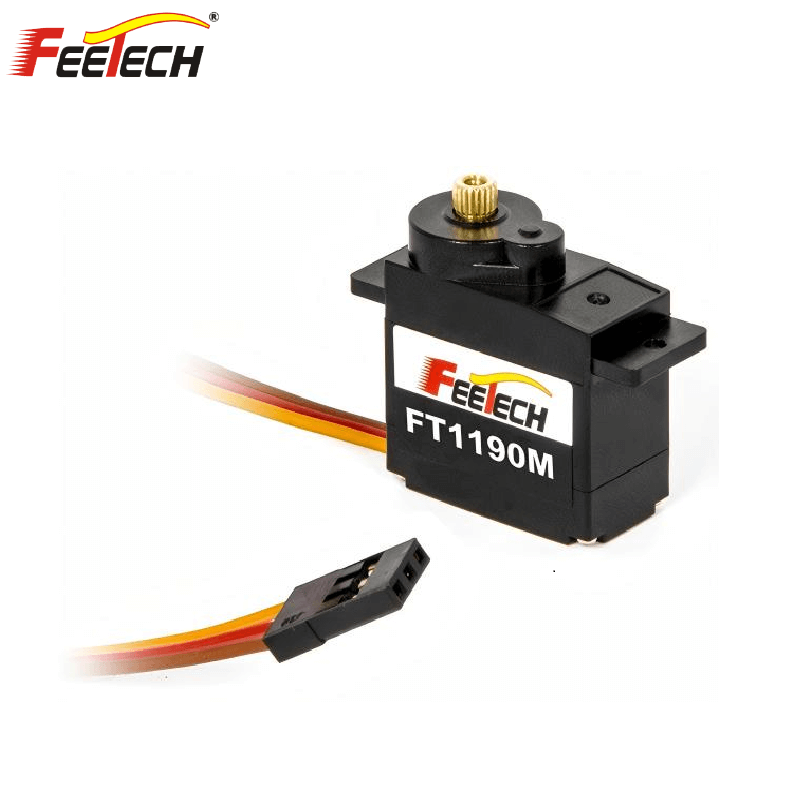

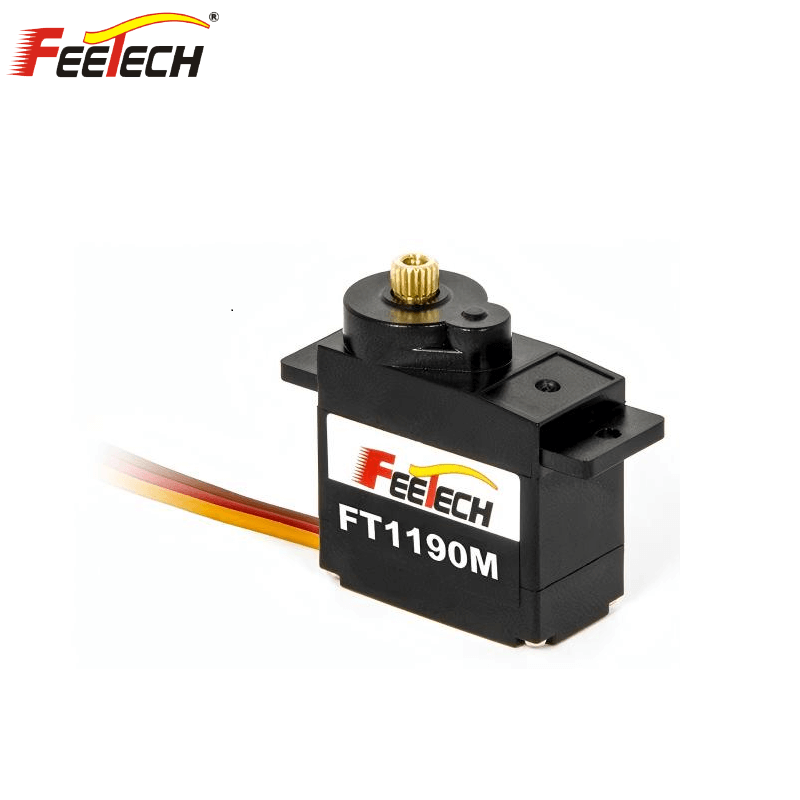

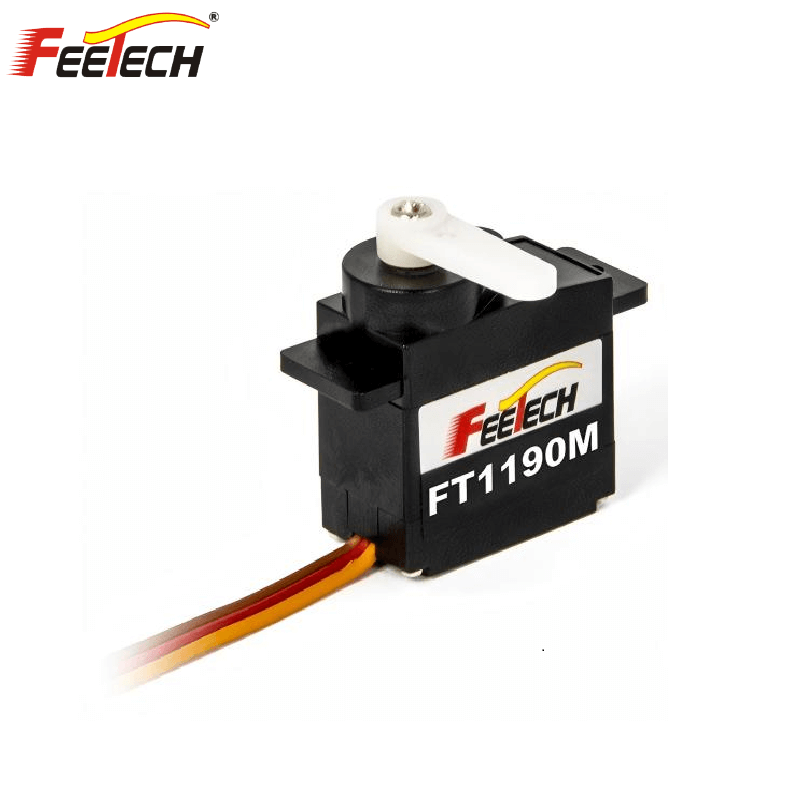

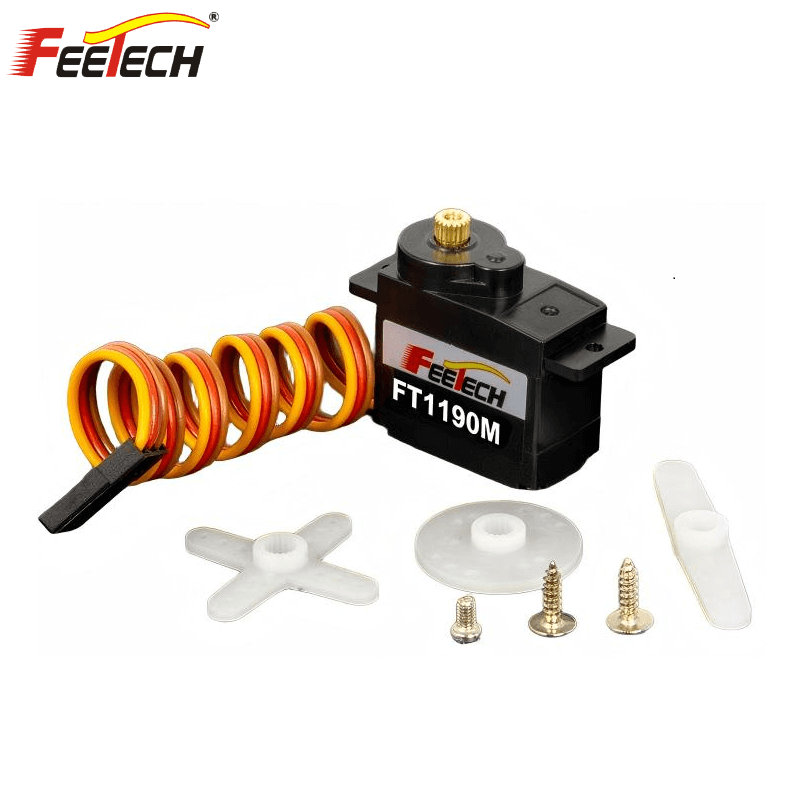

FEETECH FT1190M Servo Motor
Regular price
$20.00
Unit price
/
Unavailable
FEETECH FT1190M Servo Motor - FT1190M (6V3.5KG) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT1190M Servo Motor
Regular price
$20.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|
|---|---|---|
| Model | FT1190M | |
| Product Name | 3.5kg.cm digital 200 degree hollow cup servo | |
| Storage Temperature Range |
-30℃～80℃ |
|
| Operating Temperature Range | -15℃～70℃ | |
| Size | A：23.2mm B：12.1mm C:25.25mm | |
| Weight | 13.5± 1g | |
| Gear type | Metal Gear | |
| Limit angle |
NO limit |
|
| Bearing |
NO |
|
| Horn gear spline | 20T/3.95mm | |
| Case | PC plastic | |
| Connector wire | 25CM | |
| Motor |
Coreless Motor |
|
| Operating Voltage Range | 4.8-6V | |
| Idle current(at stopped) | 6mA @6V | |
| No load speed | 0.1sec/ 60degree @6V | |
| Runnig current(at no load) | 170 mA@6V | |
| Peak stall torque | 3.5kg.cm@6V | |
| Rated torque | 1.16kg.cm@6V | |
| Stall current | 1100mA@6V | |
| Command si gnal | Pulse width modification | |
| Pulse width range | 500→2500 μsec | |
| Stop position | 1500 μsec | |
| Running degree | 200° (at 500→2500μsec) | |
| Dead band width | ≤4 μsec | |
| Rotating direction | Counterclockwise(1500 →2000 μsec) |
