RichBeam

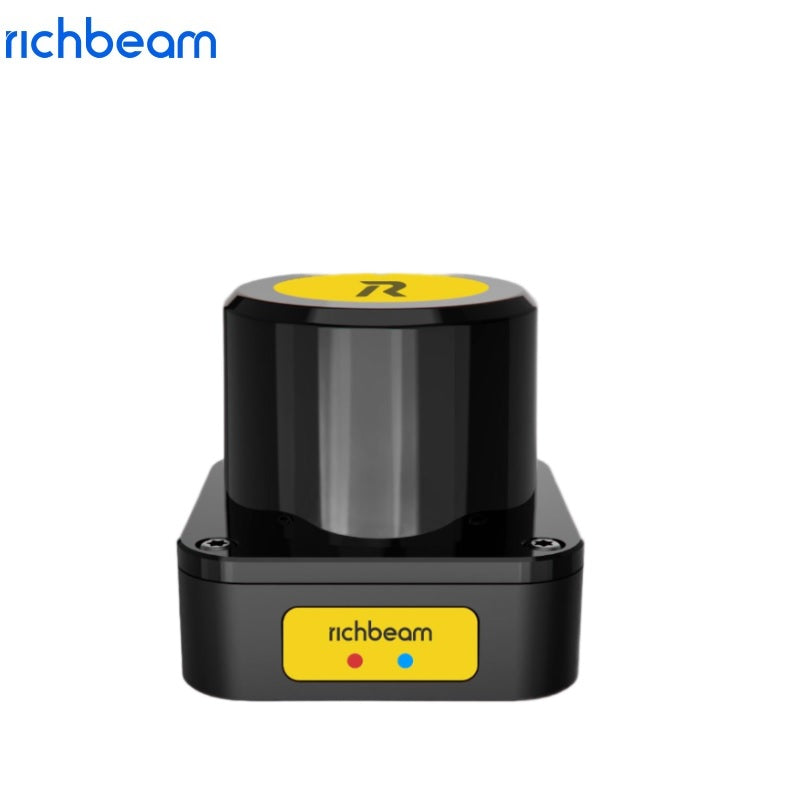

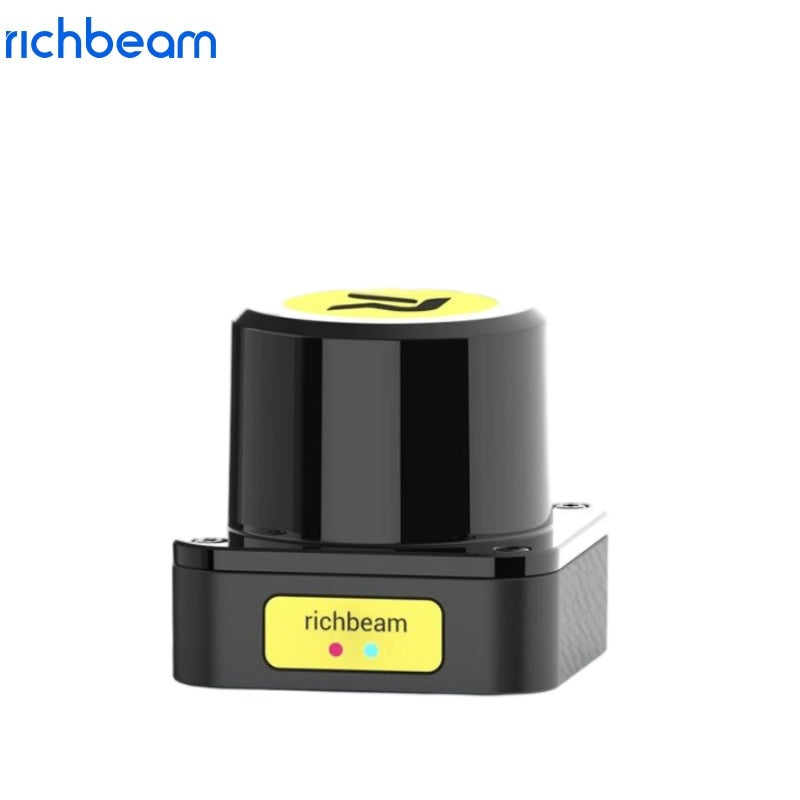

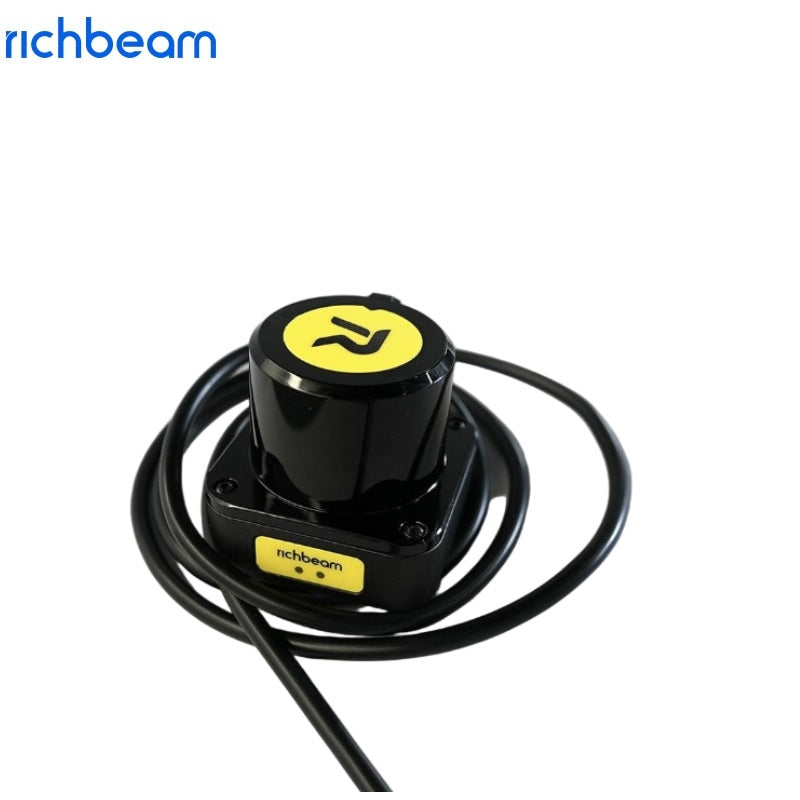

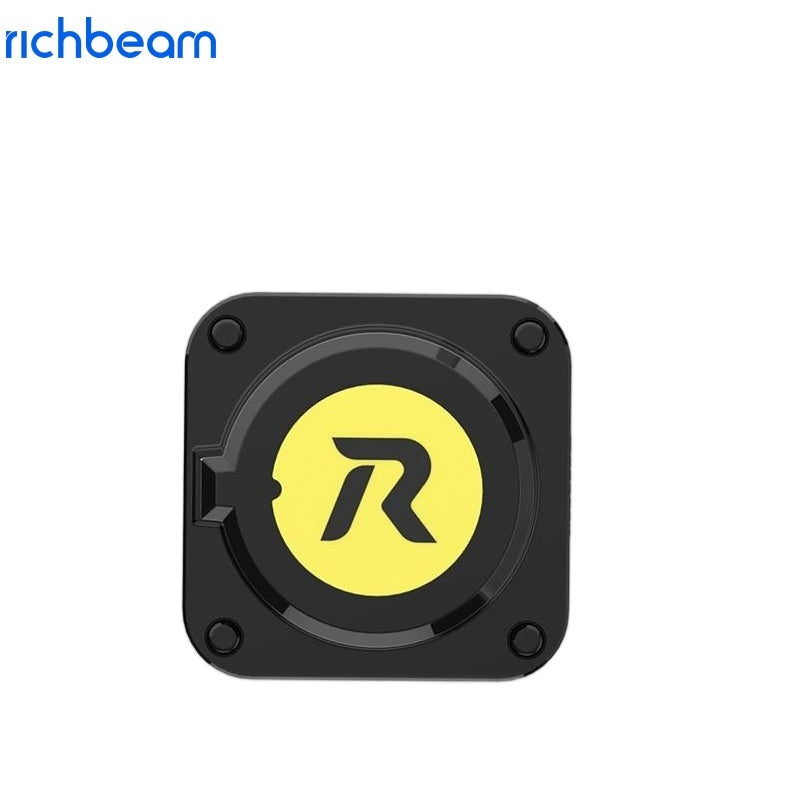

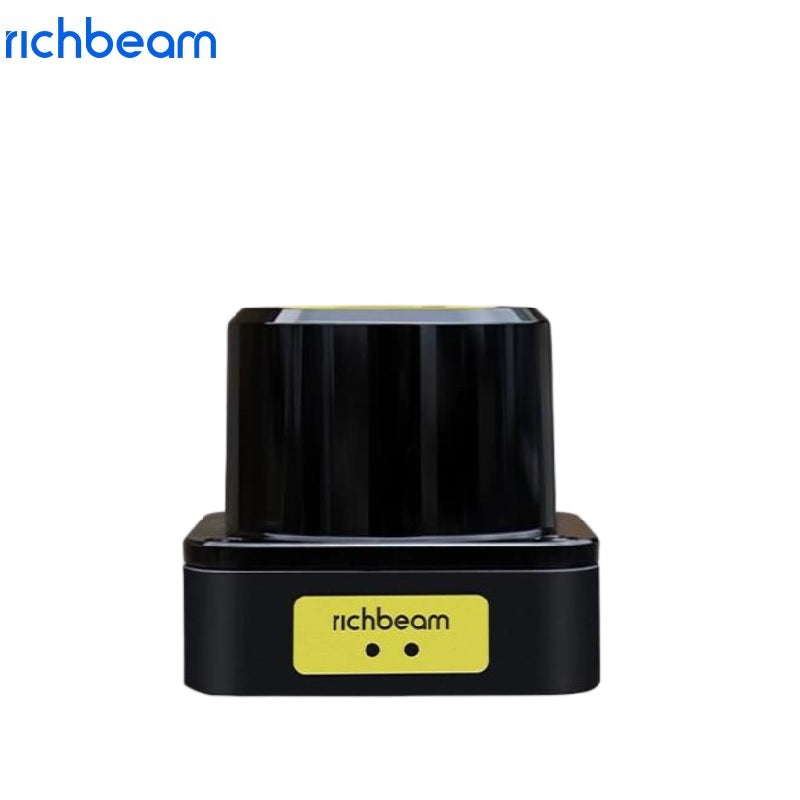

RichBeam KoraBeam LiDAR

$280.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information





Technical Specifications

Parameter Value Value
Model KoraBeam1 KoraBeam1S
Range Principle

dToF

dToF
Horizontal FOV 270°
270°
MeasurementRange ≥10m@70%reflectivity ≥20m@70%reflectivity
≥5m@10%reflectivity ≥10m@10%reflectivity
≥2m@1.8%reflectivity ≥3m@1.8%reflectivity
≥10m@70%reflectivity ≥20m@70%reflectivity
≥5m@10%reflectivity ≥10m@10%reflectivity
≥2m@1.8%reflectivity ≥3m@1.8%reflectivity
Rotating Frequency 10Hz;15Hz;20Hz;25Hz;30Hz 10Hz;15Hz;20Hz;25Hz;30Hz
Range Accuracy ±2cm ±2cm
Horizontal Resolution 0.16°(10Hz)
0.24°(15Hz)
0.32°(20Hz)
0.4°(25Hz)
0.48°(30Hz）		 0.16°(10Hz)
0.24°(15Hz)
0.32°(20Hz)
0.4°(25Hz)
0.48°(30Hz）
Data Sample Rate 22.5kHz 22.5kHz
Data Protocol RS485-MODBUS RS485-MODBUS
Digital Channels 4Digital Inputs，4Digital Outputs 4Digital Inputs，4Digital Outputs
Digital Outputs 4NPN(orPNP), Iout≤100mA 4NPN(orPNP), Iout≤100mA
ResponseTime 33ms(30Hz) 33ms(30Hz)
StartTime <15s <15s
Detection Output Time 0∼1000ms 0∼1000ms
Detection Holding Time 0∼1000ms 0∼1000ms
Wavelength 905nm 905nm
Laser Safety Class1 eye safe Class1 eye safe
Ambient Light Immunity <100000lux <100000lux
Rated Voltage Range 9∼36V 9∼36V
Power Consumption(Typical) 2.5W 2.5W
Operating Temperature -25°C~60°C -25°C~60°C
Storage Temperature -40°C~75°C -40°C~75°C
Weight 85g 85g
Dimension 55mm×55mm×51mm(D*W*H) 55mm×55mm×51mm(D*W*H)
Ingress Protection IP66/IP67optional IP66/IP67optional
