Description
xApplication Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|

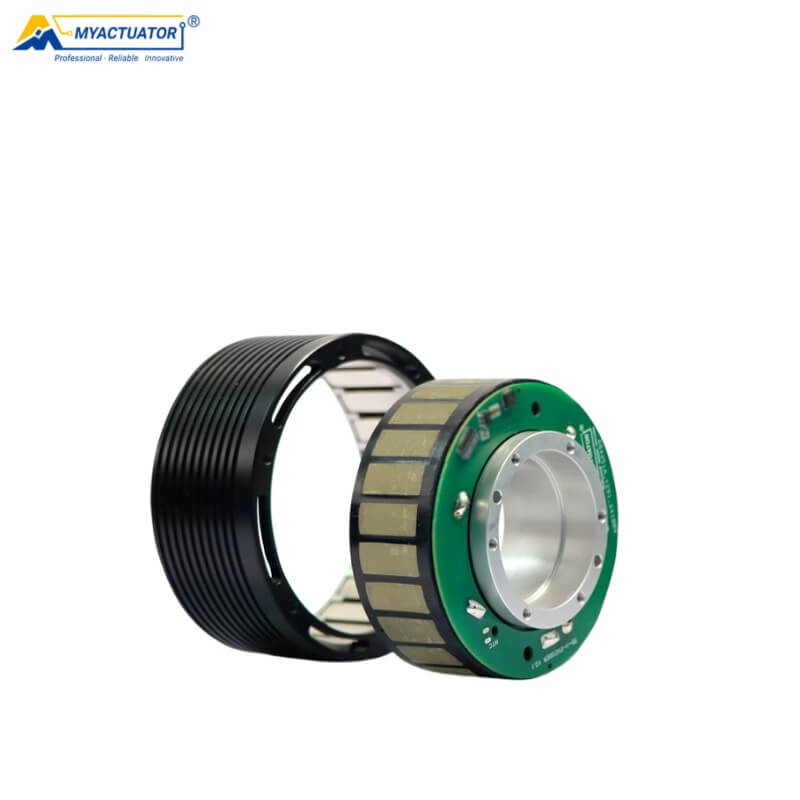

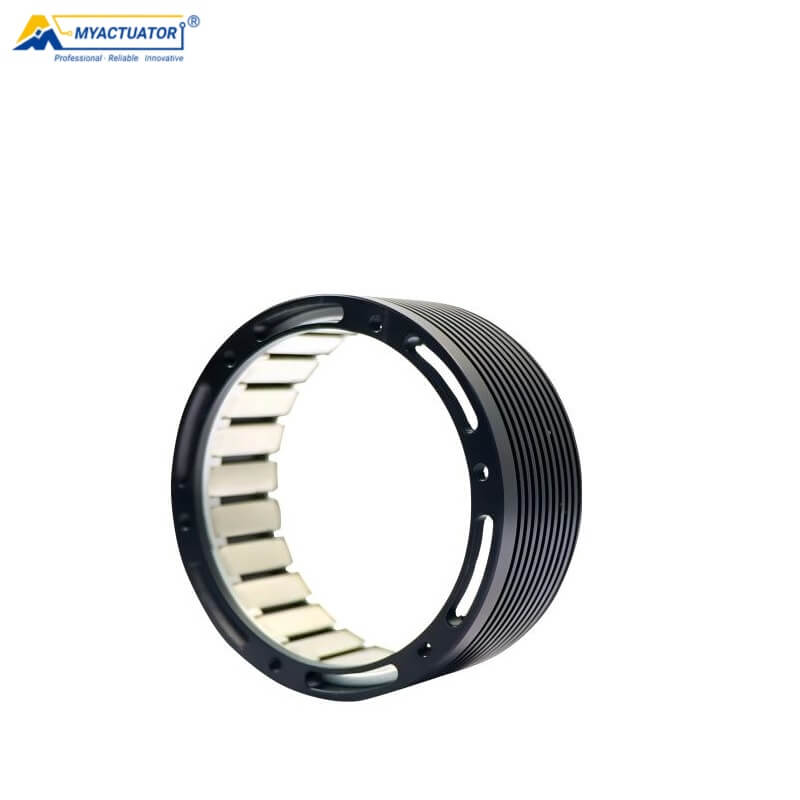

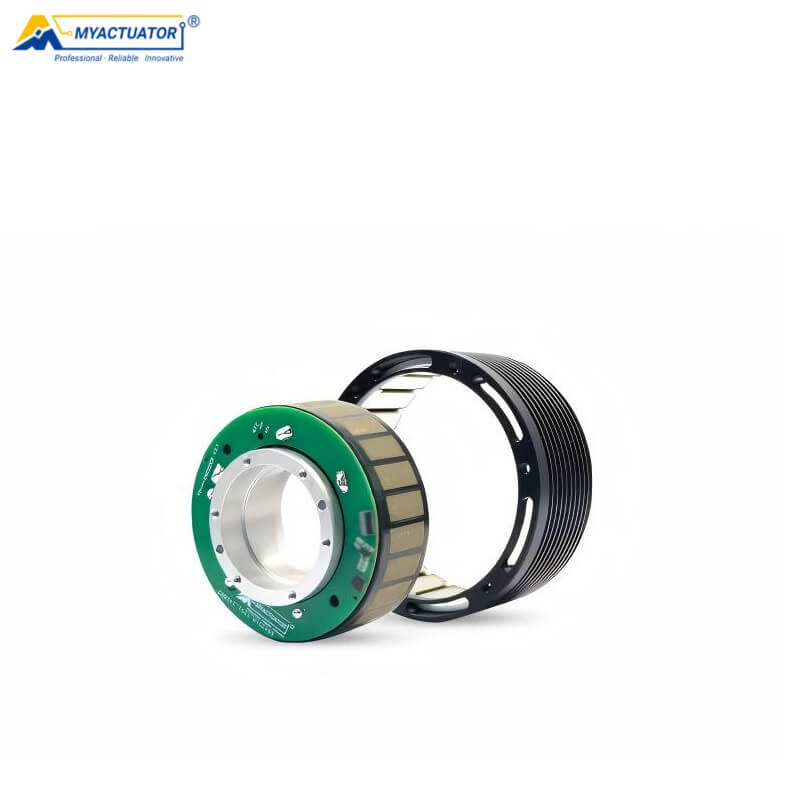

| Model | RMD-FLO-50-15 |
| Input Voltage | 24V |
| No-Load Current | 0.32A |
| Rated Speed | 2500RPM |
| Rated Torque | 0.35N.m |
| Rated Power |
91.6W |
| Rated Current |
4.9A(rms) |
| Peak Torque | 0.87N.m |
| Peak Current | 14.7A(rms) |
| Efficiency | >83% |
| Motor Back-EMF Constant |
7.93Vdc/Krpm |
| Module Torque Constant | 0.07N.m/A |
| Motor Phase Resistance | 0.4Ω |
| Motor Phase Inductance | 0.19mH |
| Pole Pair | 13 |
| Cogging Torque | 12N.m |
| 3 Phase Connection | Y |
| Encoder Type&Interface | Absolute |
| Weight | 0.19Kg |
| Insulation Grade | F |
RMD-FLO-50-INSTALLATION_DRAWING.pdf
