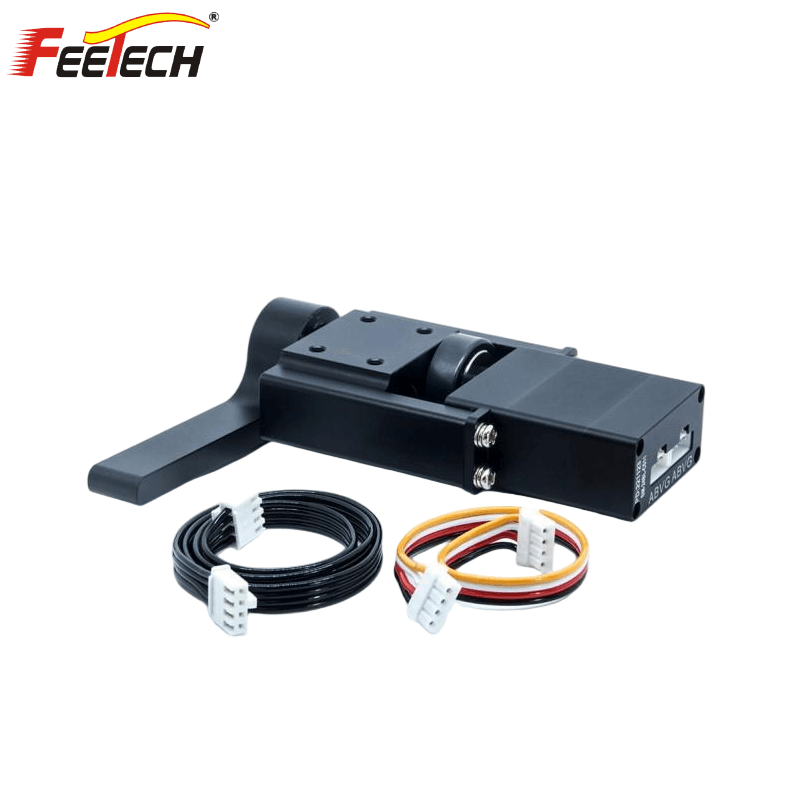

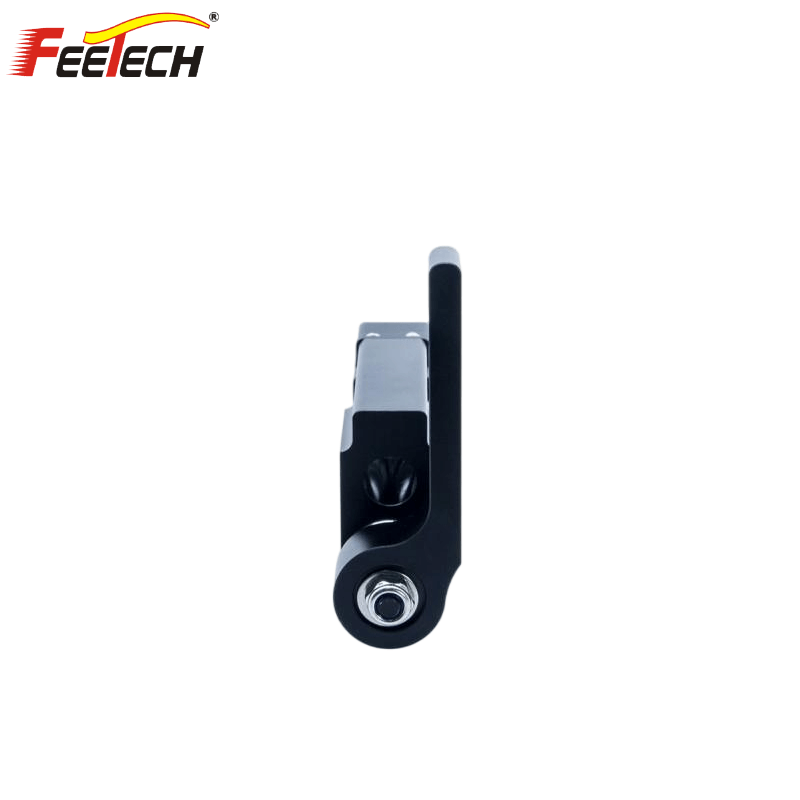

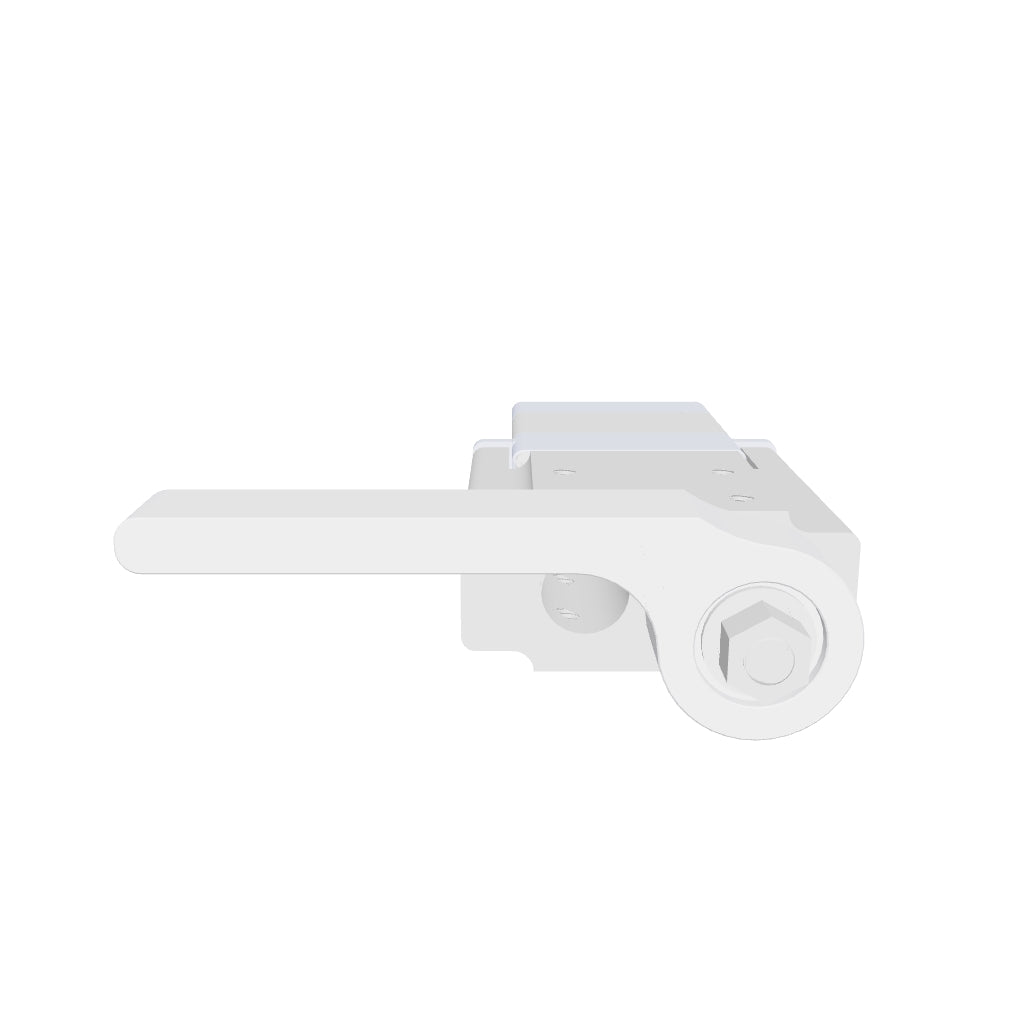

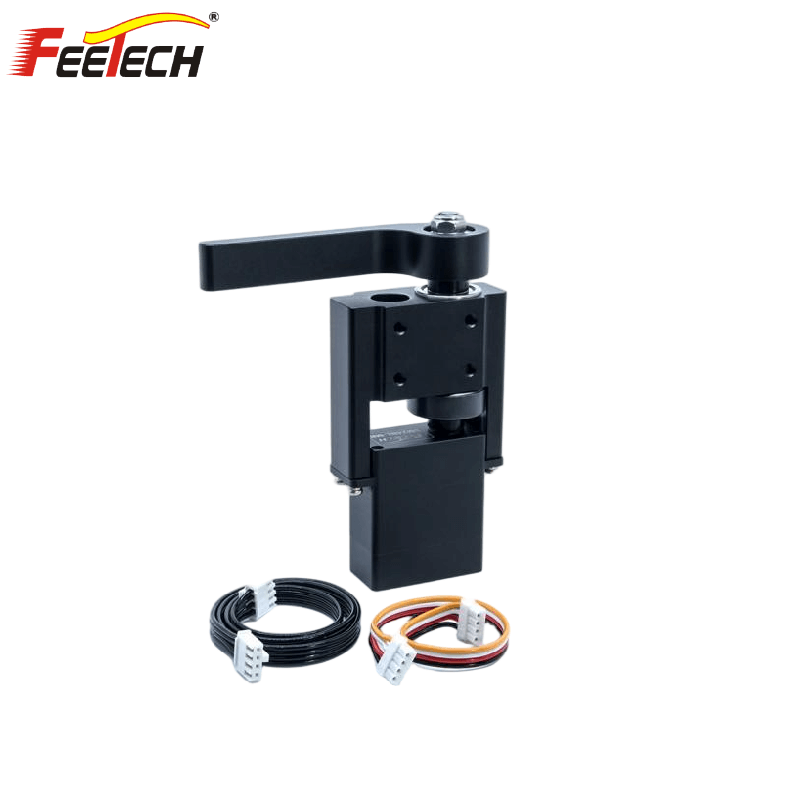

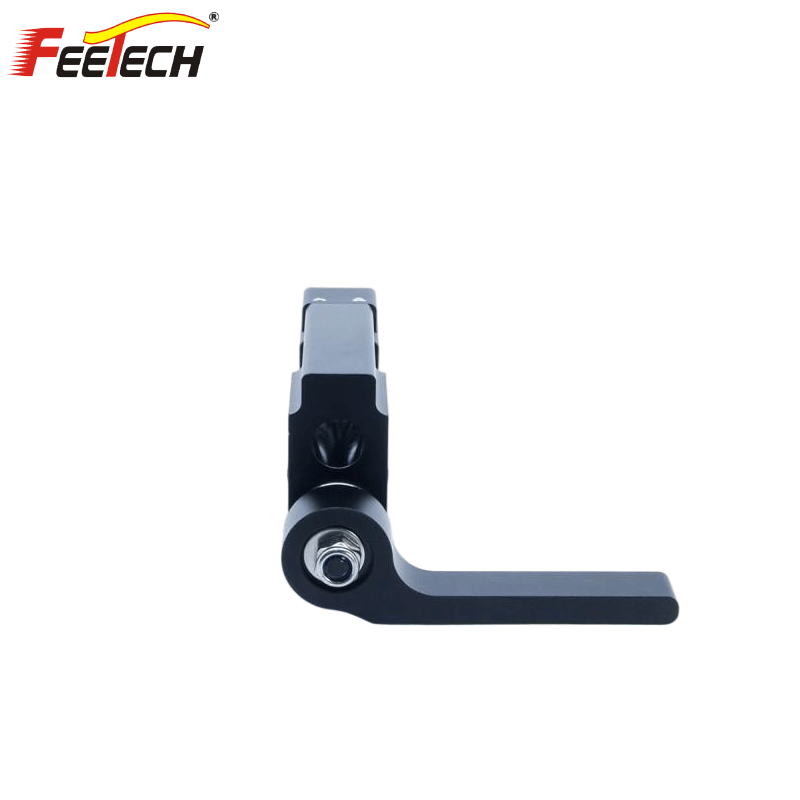

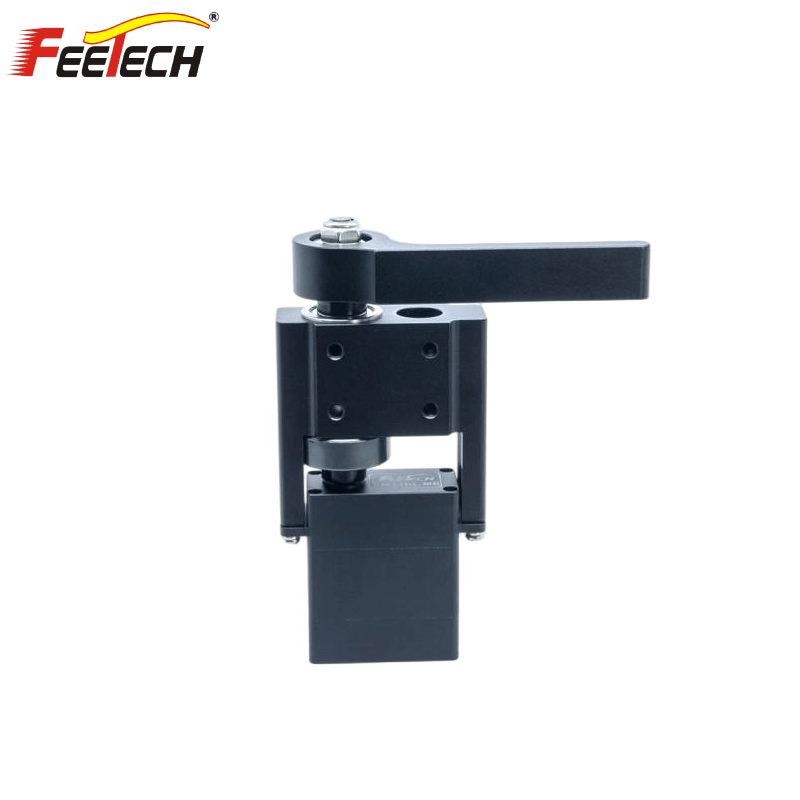

FEETECH SM24BL-C015 Servo Motor
Regular price
$119.00
Unit price
FEETECH SM24BL-C015 Servo Motor - SM24BL-C015 / MODBUS-RTU Protocol is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH SM24BL-C015 Servo Motor
Regular priceFrom
$119.00
Unit price
FEETECH SM24BL-C015 Servo Motor - SM24BL-C015 / MODBUS-RTU Protocol is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SM-24BL-C015 |
| Product Name | 24V 24kg Modbus-RTU Servo |
| Storage Temperature Range | -40℃～80℃ |
| Operating Temperature Range | -40℃～70℃ |
| Size | A:113.5mm B: 20mm C: 54mm |
| Weight | 256.9±3g |
| Gear Type | Steel |
| Limit Angle | No Limit |
| Stall Torque (at locked) | 24Kg.cm |
| Input Voltage | 9V~25V |
| No Load Speed ±10% | 0.09sec/60°(110RPM)@24V |
| Running Current ±10% | 150mA@24V |
| Stall Current (at locked) | 1.3A@24V |
| Rated Torque | 8kg.cm@24V |
| Rated Current | 350mA@24V |
| Terminal Resistance | 10.2Ω |
| Command Signal | Digital Packet |
| Protocol Type | Modbus-RTU |
| Communication Baud | 38400bps ~ 1 Mbps |
| Running Degree | 360°(when 0～4095) |
| Neutral Position | 180°（2047） |
| Rotating Direction | Clockwise(0→4095) |
| Feedback | Load, Position, Speed, Input Voltage, Current, Temperature |
