Feetech | SKU:

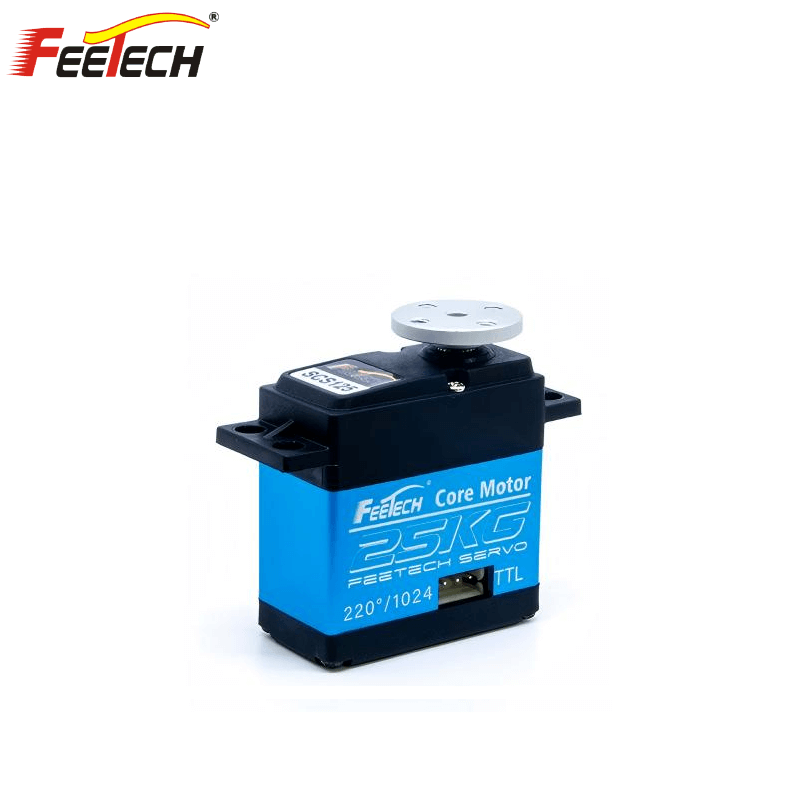

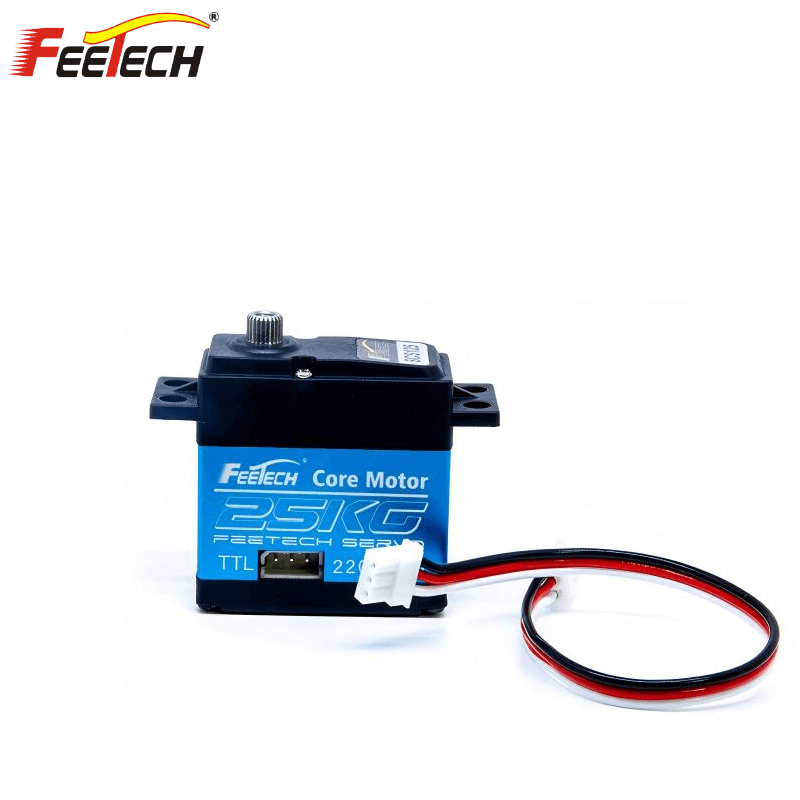

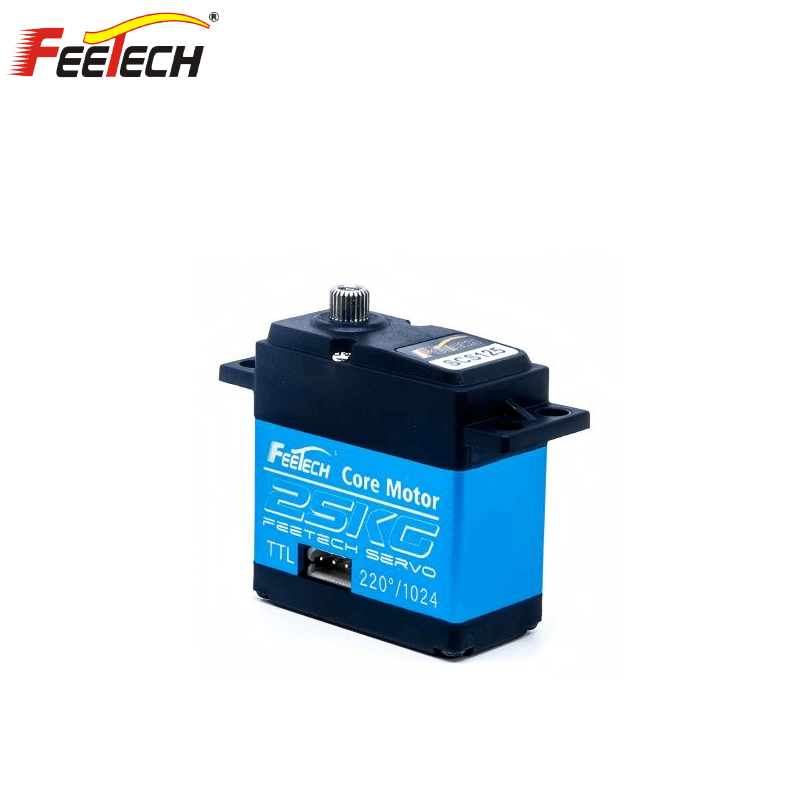

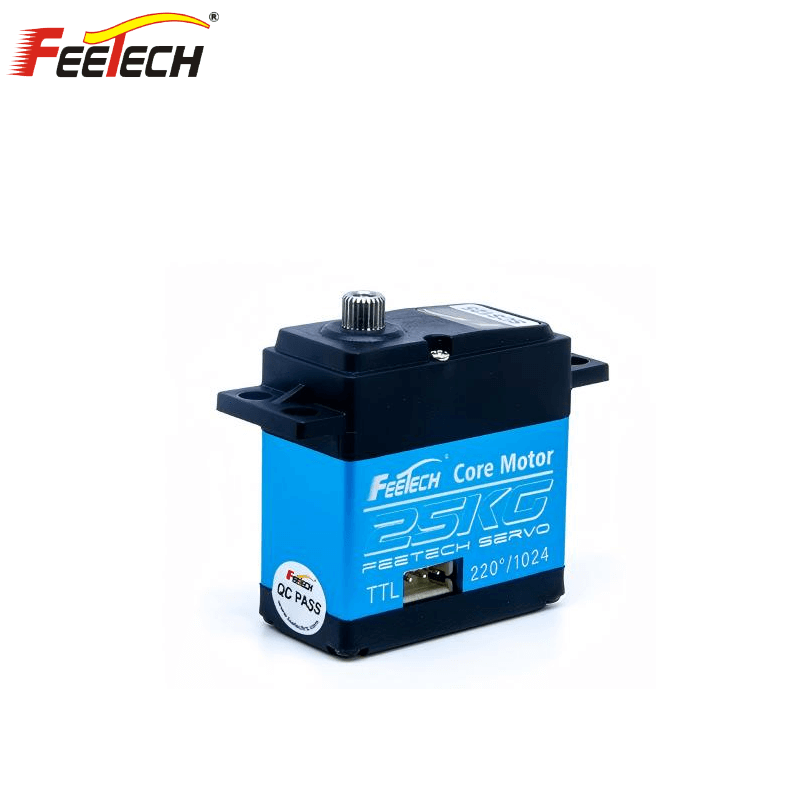

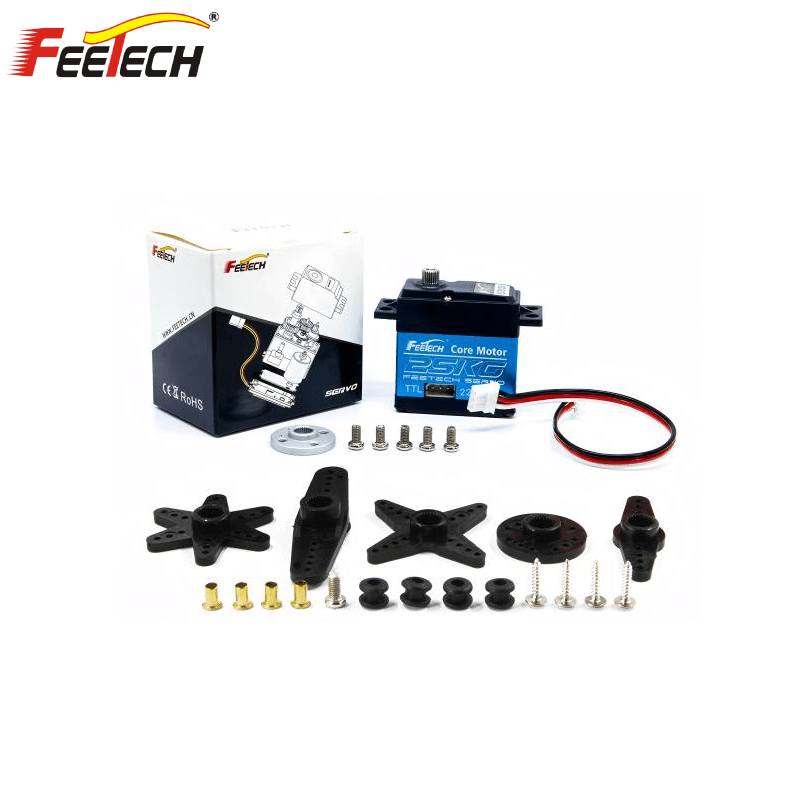

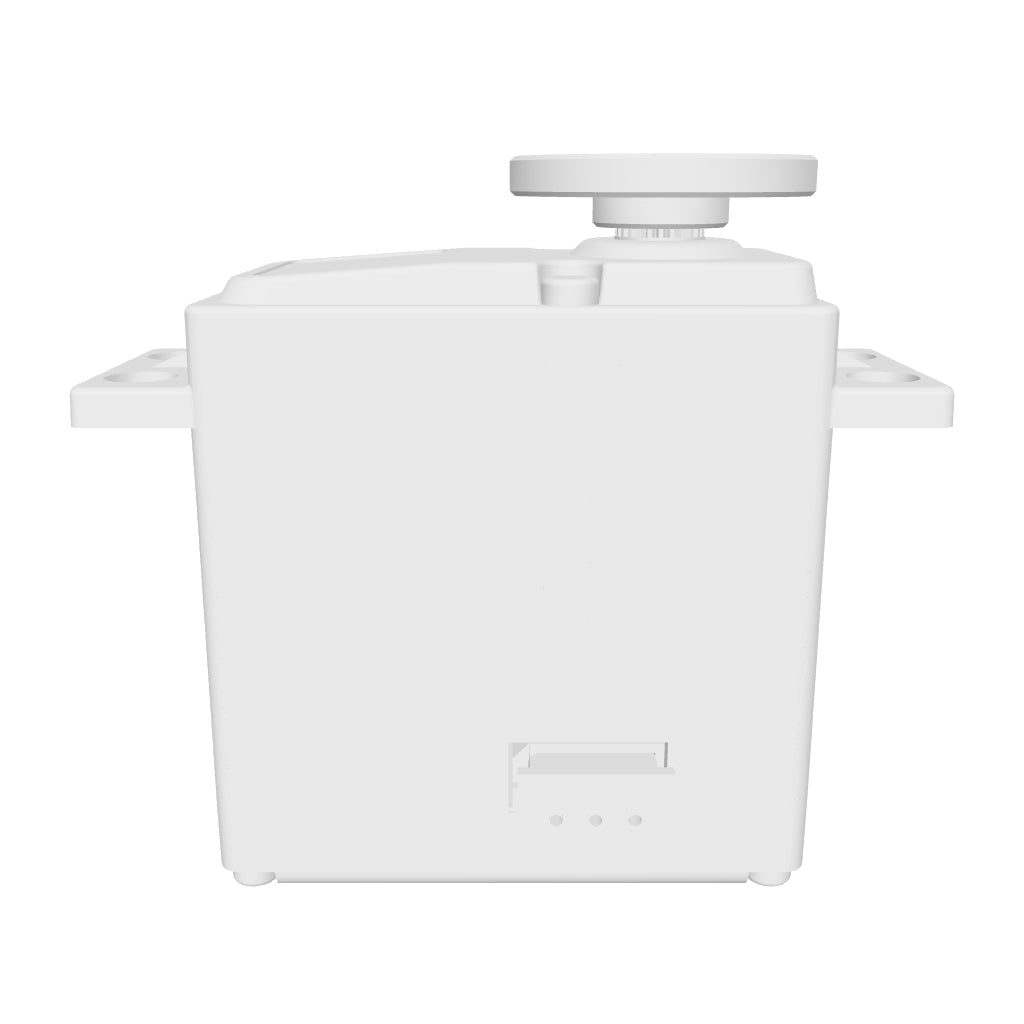

FEETECH SCS125 Servo Motor
Regular price
$25.00
Unit price
/
Unavailable
FEETECH SCS125 Servo Motor - SCS125 (7.4V25KG) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH SCS125 Servo Motor
Regular price
From
$25.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | SCS125 |
| Product Name | 7.4V 25KG.CM |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ |
| Size | A：40.0mm B：20.0mm C：43mm |
| Weight | 63.5± 1g |
| Gear type | Steel |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/OD5.9mm |
| Case | PA+Aluminium |
| Connector wire | 15CM |
| Motor |
Core Motor |
| Operating Voltage Range | 4-8.4V |
| No load speed | 0.151sec/60°@7.4V |
| Runnig current(at no load) | 250 mA@7.4V |
| Peak stall torque | 25kg.cm@7.4V |
| Rated torque | 8.3kg.cm@7.4V |
| Stall current | 3.5A@7.4V |
| Command signal | Digital Packet |
| Protocol Type | Half duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 220°(when 0～1024) |
| Feedback |
Load, Position,Speed,Input Voltage，Temperature |
| Position Sensor Resolution | 0.215°(220°/1024) |
