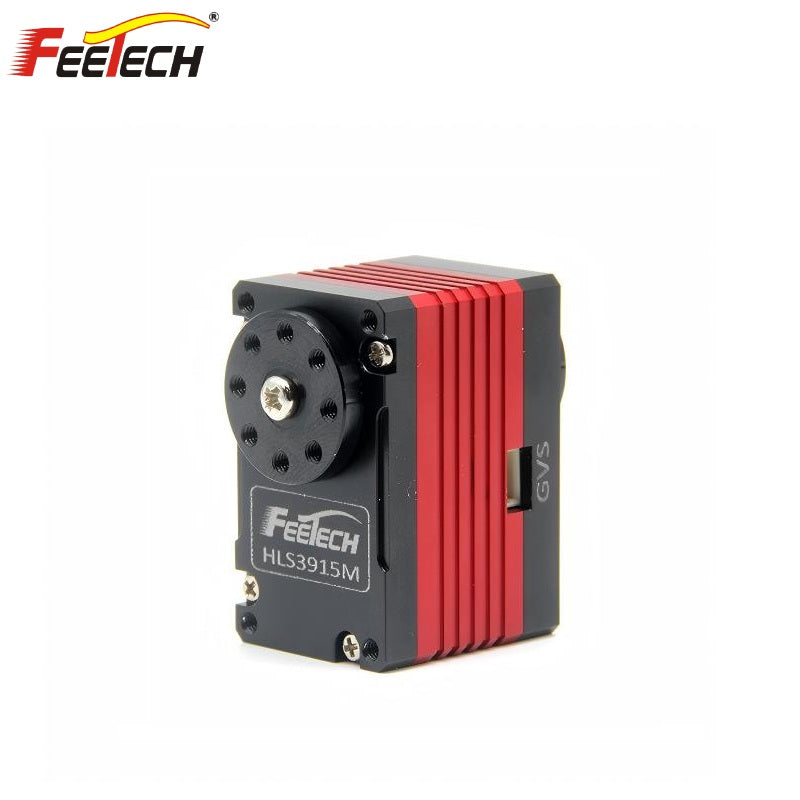

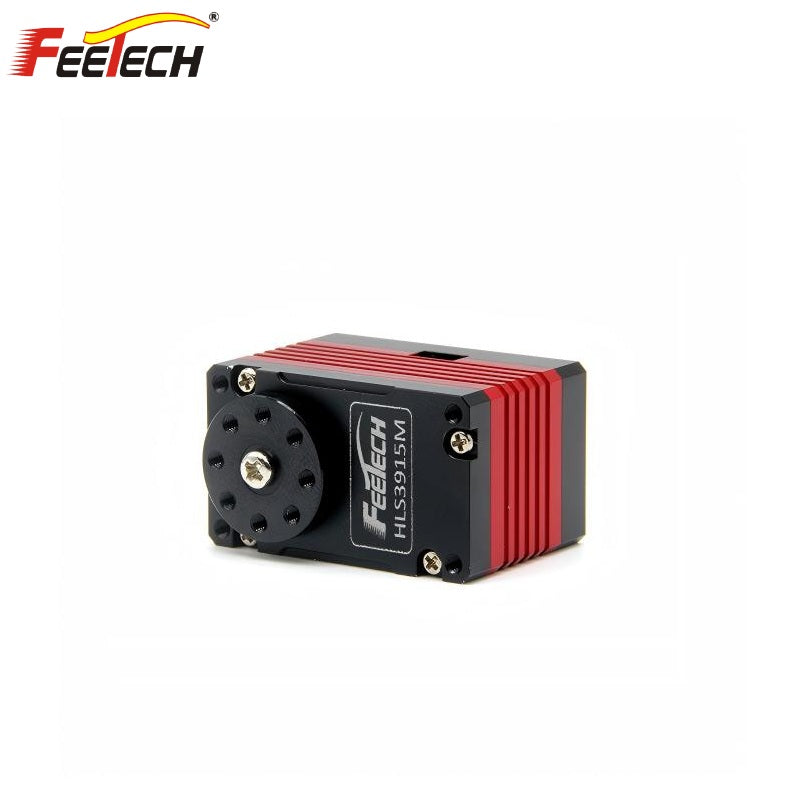

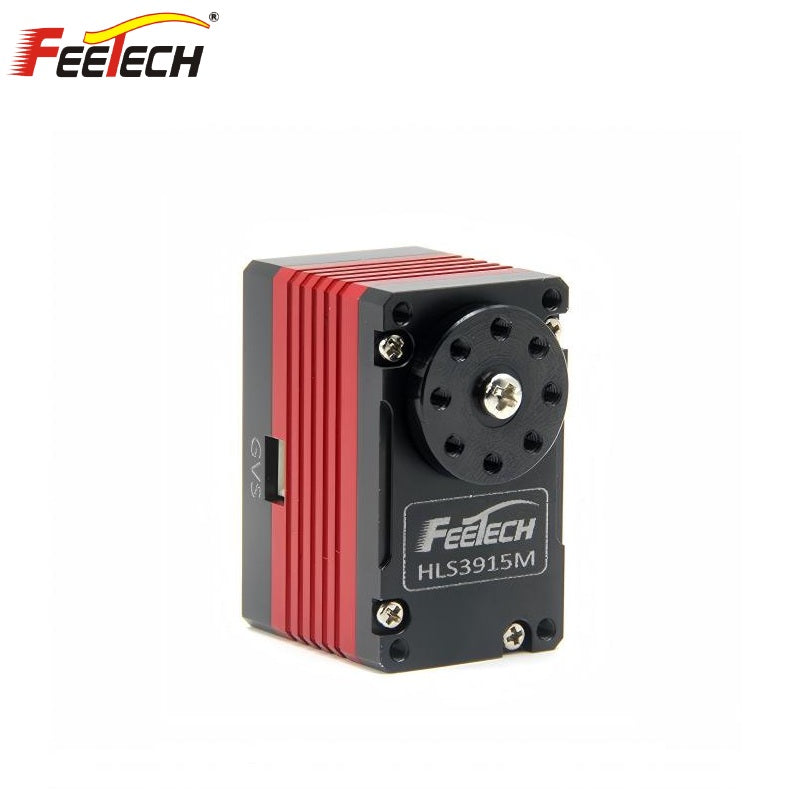

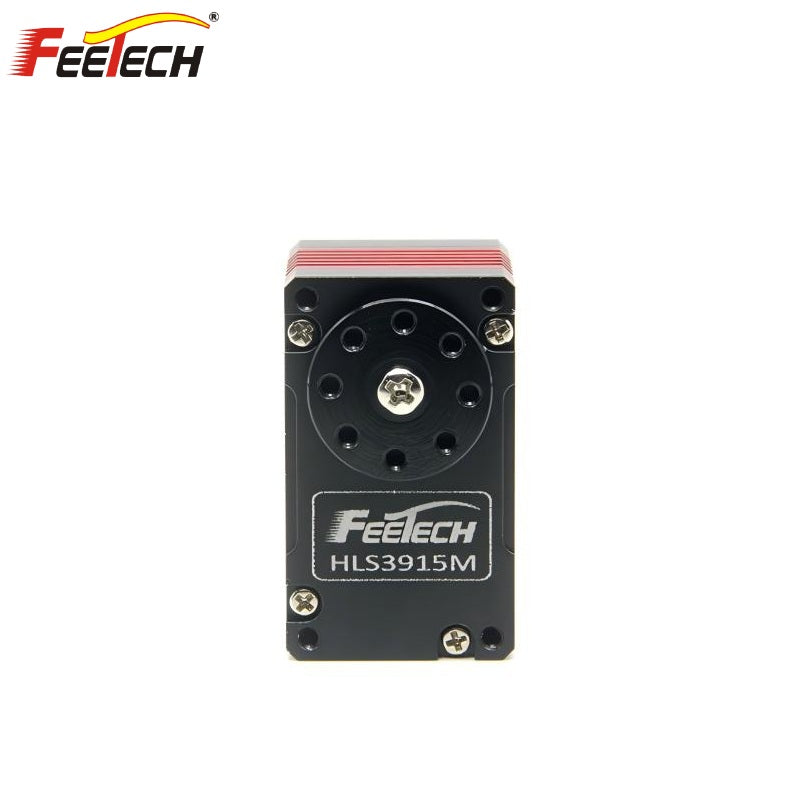

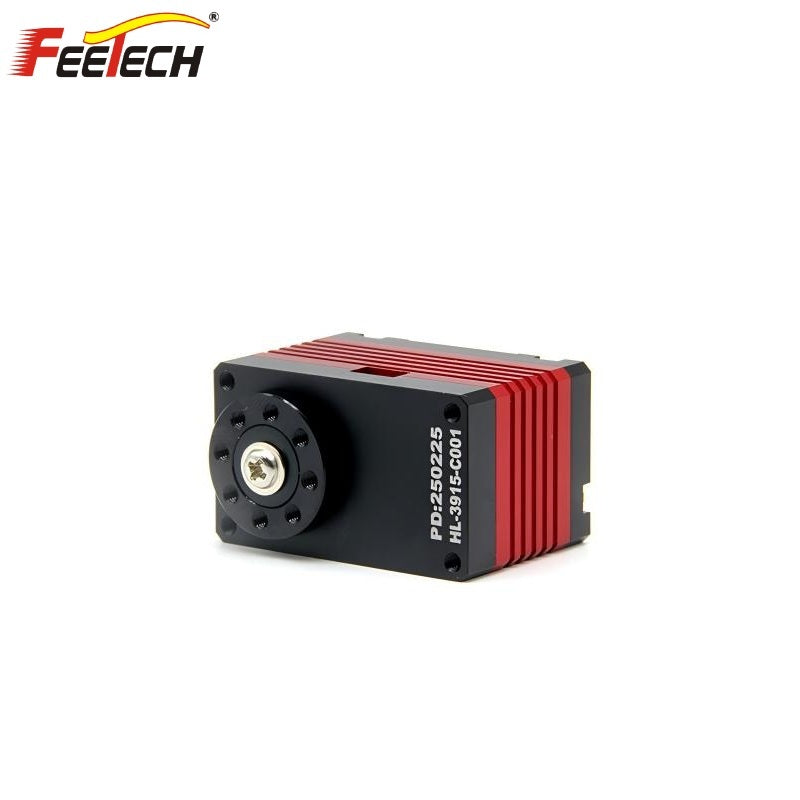

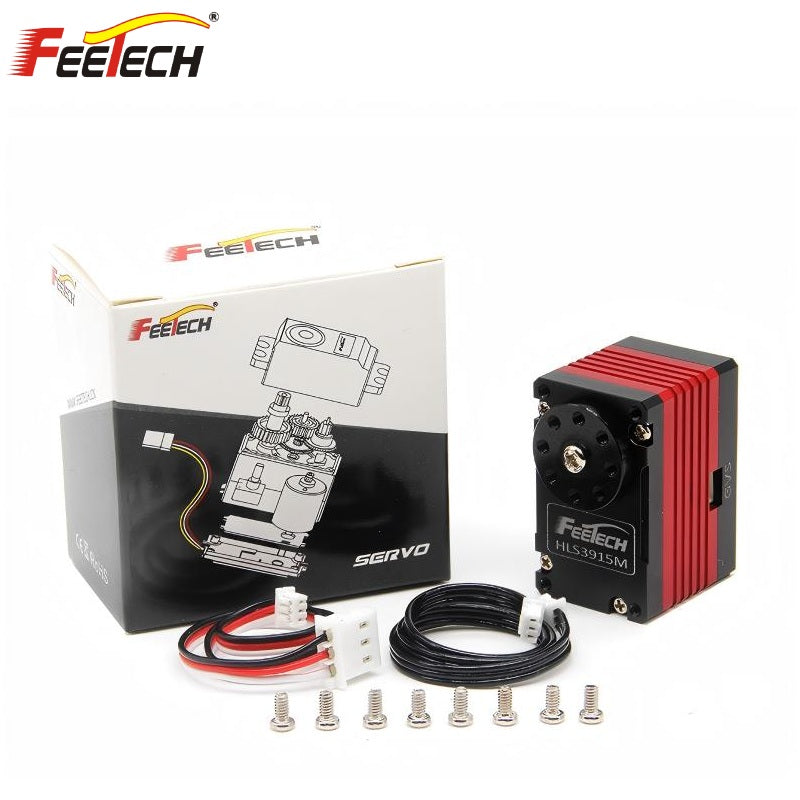

FEETECH HL-3915 Servo Motor
Regular price
$50.00
Unit price
/
Unavailable
FEETECH HL-3915 Servo Motor - HL-3915-C001 (12V14KG) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH HL-3915 Servo Motor
Regular price
From
$50.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | HL-3915-C001 |
| Product Name | 12V 14kg double shaft constant force TTL serial bus servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -10℃～60℃ |
| Temperature Range | 25℃ ±5℃ |
| Humidity Range | 65%±10% |
| Size | A：20mm B：34mm C：23mm |
| Weight | 35.8±2g |
| Gear type | Metal Gear |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/OD4.95mm |
| Gear Ratio | 1/320 |
| The rocker phantom | 0° |
| Case | Aluminium |
| Connector wire | 15CM/20CM |
| Motor |
Coreless Motor |
| Rated Input Voltage | 4V-14V |
| No load speed | 0.1sec/60°(100RPM)@12V |
| Runnig current(at no load) | 260mA@12V |
| Peak stall torque | 14.2kg.cm@12V |
| Stall current | 1.5A@12V |
| Rated Load | 4.5kg. cm@12V |
| Rated current | 500mA@12V |
| KT | 9.3kg. cm/A |
| Operating Modes |
Mode 0: Angle servo mode (default mode, absolute position controllable from 0-360 degrees); Mode 1: Motor constant speed mode (motor constant speed mode, maintains speed without deceleration as the load increases); Mode 2: Motor constant current mode (motor constant current mode,maintains current without decreasing with increasing load) can achieve absolute position |
| Multi-Loop Mode | control of positive and negative 7 turns at the highest accuracy, but the umber of power failure turns is not saved (the resolution can be expanded, and the number of turns can be doubled) |
| Constant force output | Set the output torque value, the servo can maintain this torque (input the target torque value corresponding to address 44, the servo can maintain this torque) |
| Command signal |
Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Control Algorithm | PID |
| Neutral Position | 180°（2048） |
| Running degree | 360° (when 0~4095) |
| Resolution [deg/pulse] | 0.088°(360°/4096) |
| Rotating Direction | Clockwise(0→4095） |
| Feedback | Load, Position,Speed, Input Voltage，Current,Temperature |
