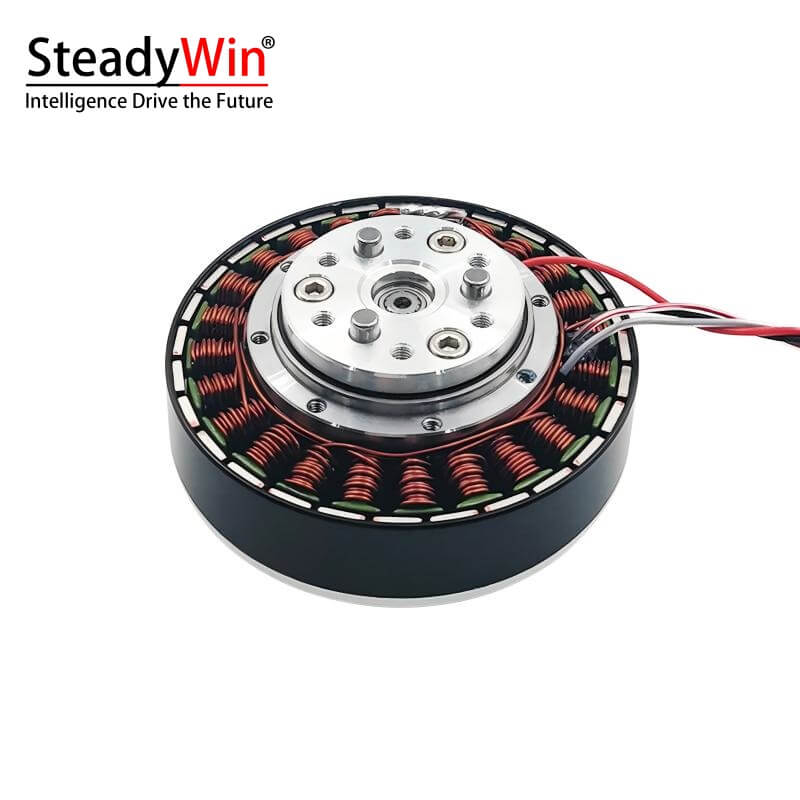

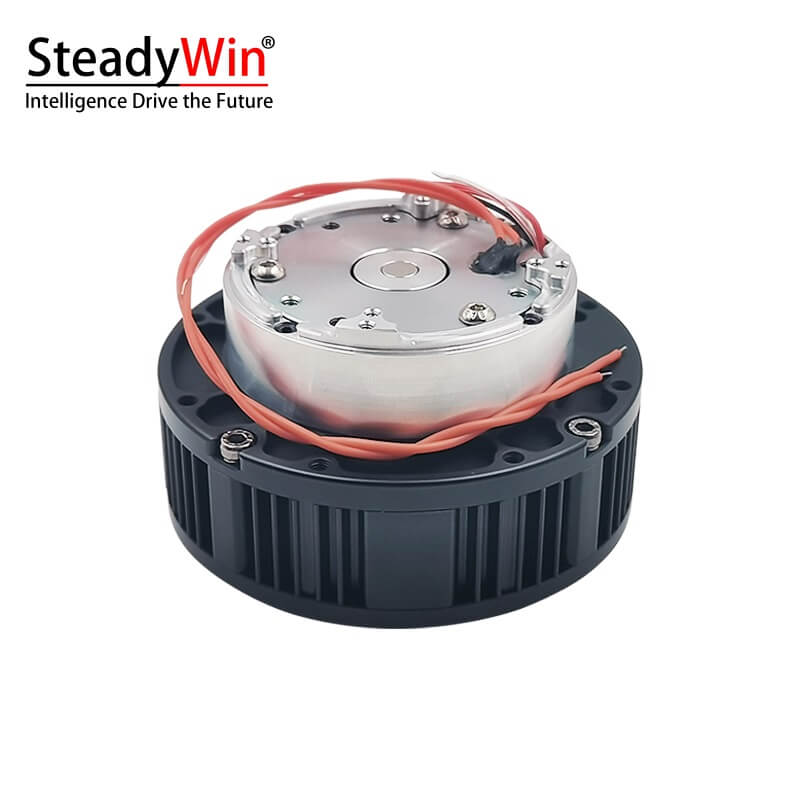

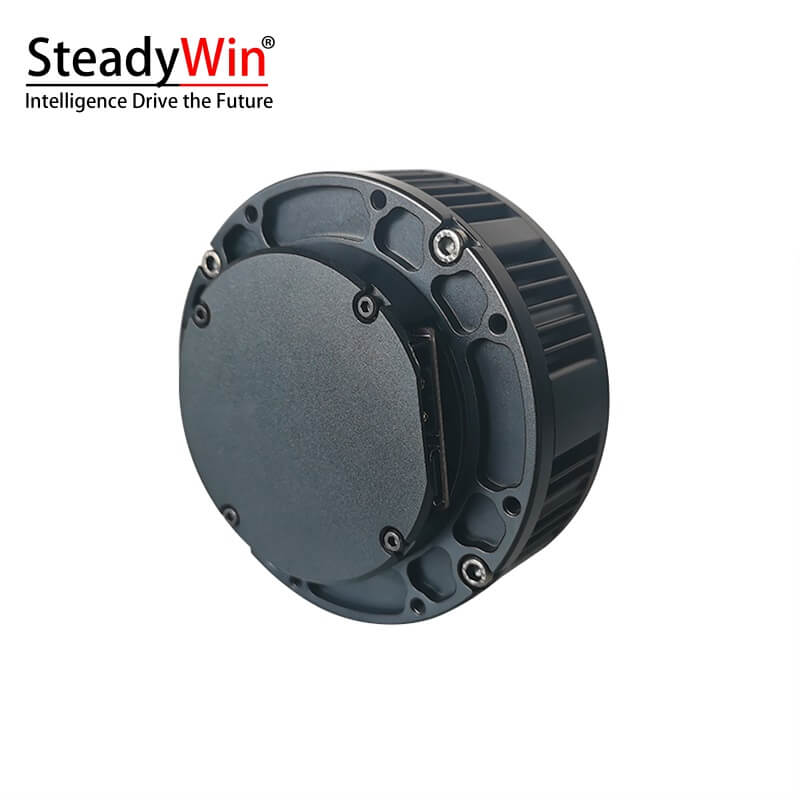

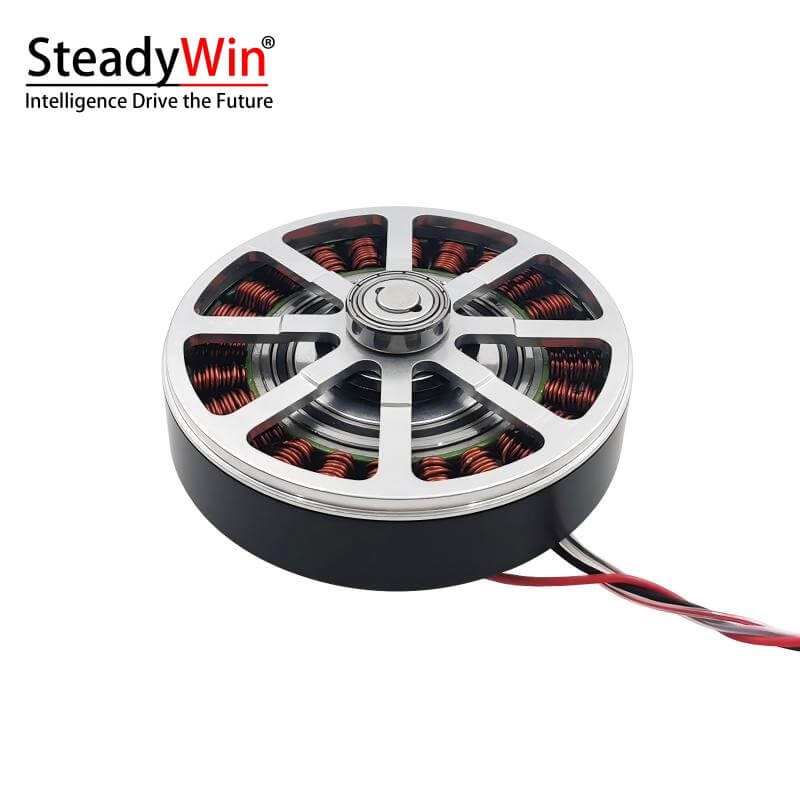

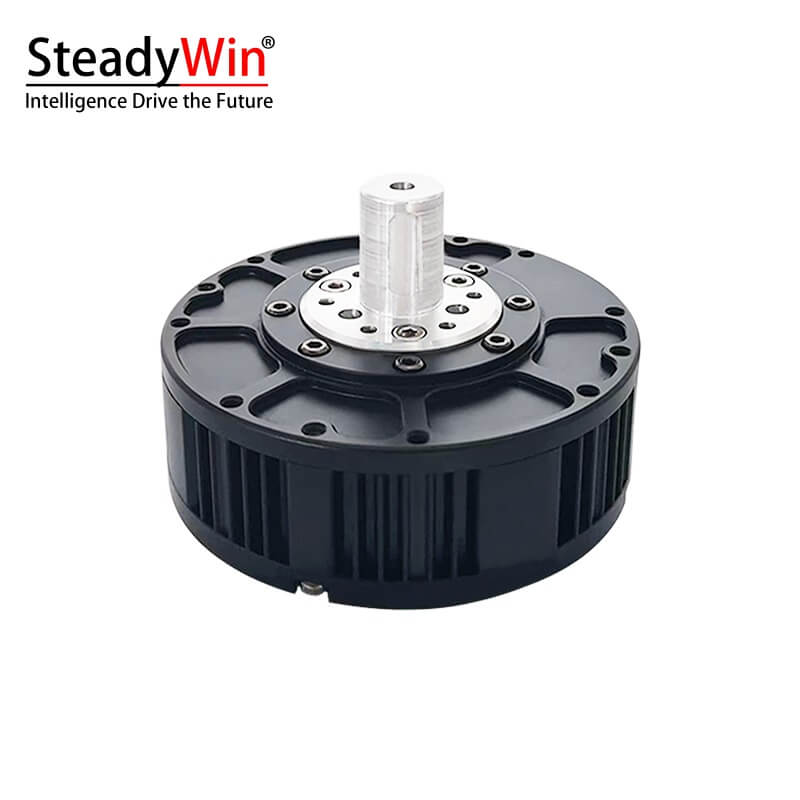

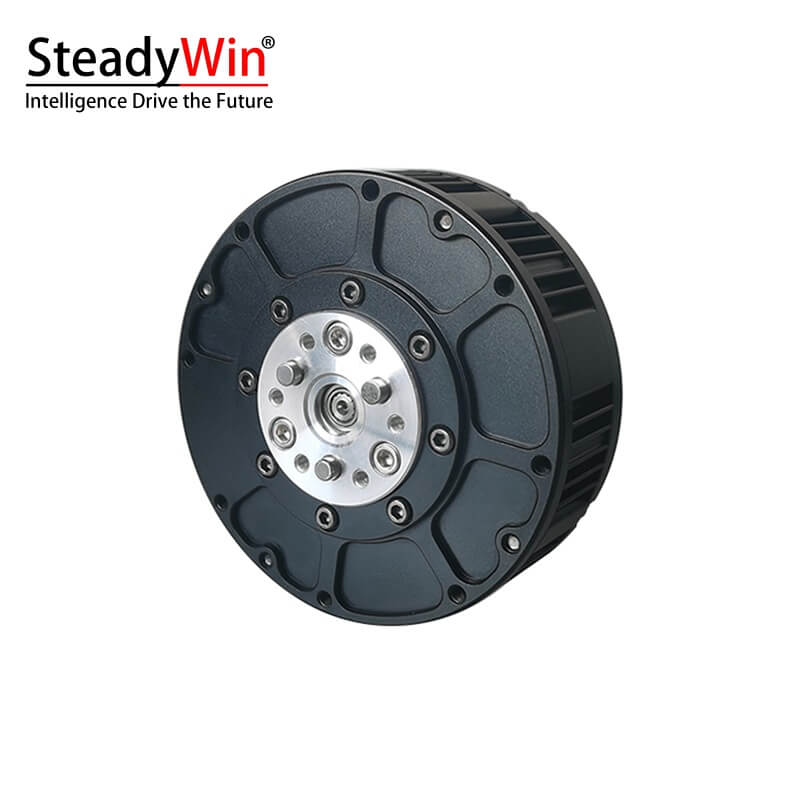

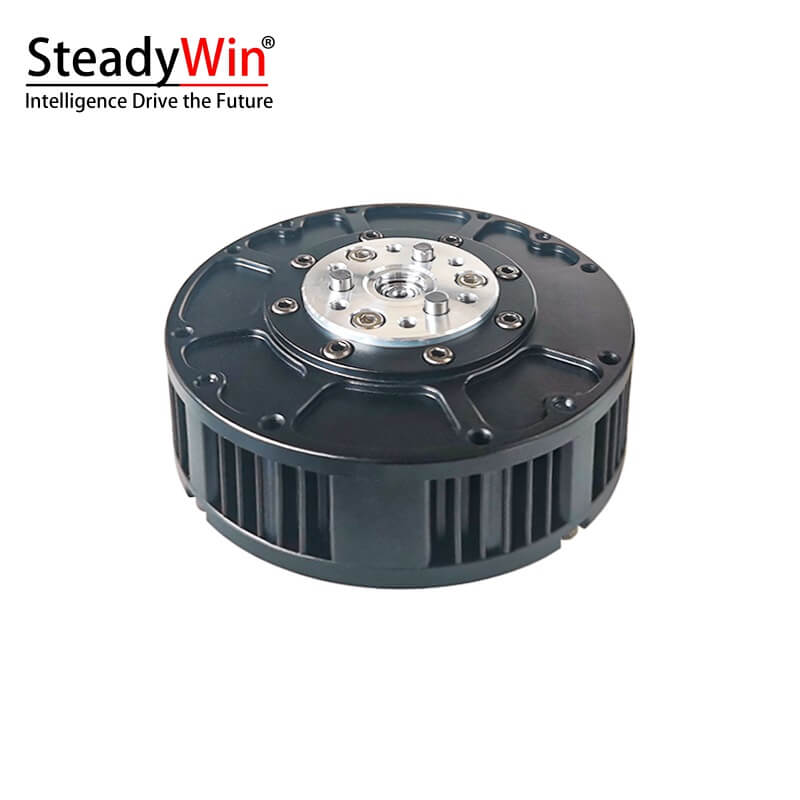

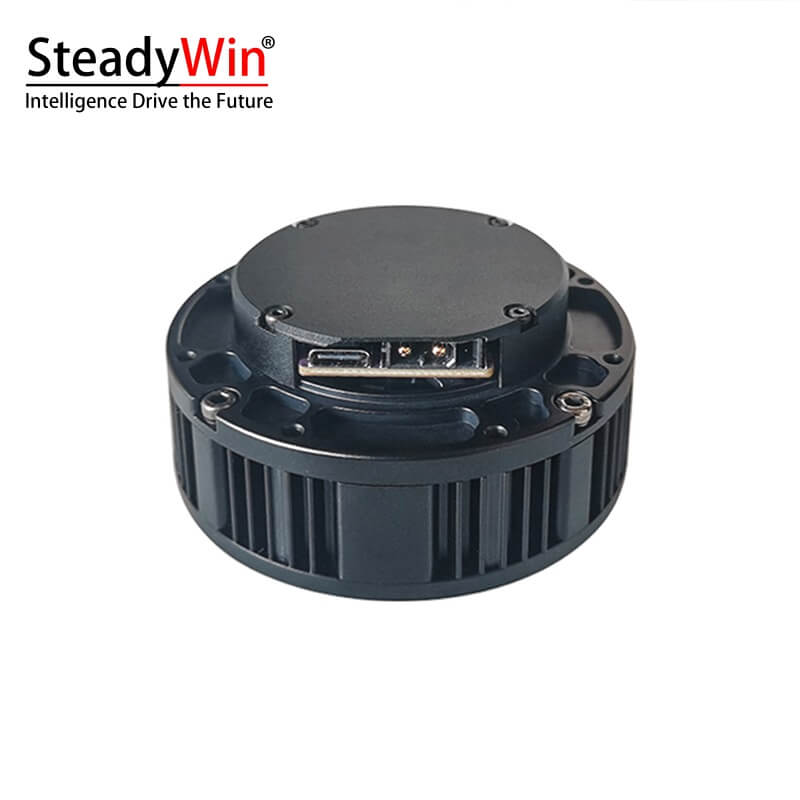

SteadyWin GIM6010-8 Planetary Reducer Motor

Regular price $60.00

Version

Delivery and Shipping

  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model GIM6010-8
Driver Model SDC104
Nominal Voltage 24V (12~56V Range)
Power 252W
Nominal Torque 5 N·m
Stall Torque 11 N·m
Nominal Speed after Reduction 120 RPM
Max Speed after Reduction 420 RPM
Nominal Current 10.5A
Stall Current 23.4A
Phase Resistance 0.42 Ω
Phase Inductance 0.34 mH
Speed Constant 17.5 rpm/v
Torque Constant 0.47 N·m/A
Number of Pole Pairs 14 Pairs
Gear Ratio 8:1
Gear Type Planetary
Reducer Gear Material STEEL
Reducer Gear Backlash 15 arcmin
Motor Weight (without Driver) 370g
Motor Weight (with Driver) 388g
Size (without Driver) Ø80*29.5mm
Size (with Driver) Ø80*40mm
Max Axial Load 200N
Max Radial Load 800N
Noise <60 dB
Communication CAN & Type-C
Second Encoder YES
Protection Grade IP54
Operating Temperature -20℃ to +80℃
Encoder Resolution 16 Bit
Separate Encoder Support NO
Custom Brake Support YES



6010-8 Installation Diagram.pdf

6010-8 Brake Mounting Dimensions Drawing.pdf

6010-8 Output Shaft Mounting Dimensions Drawing.pdf

6010-8-Without Drive Cover.pdf

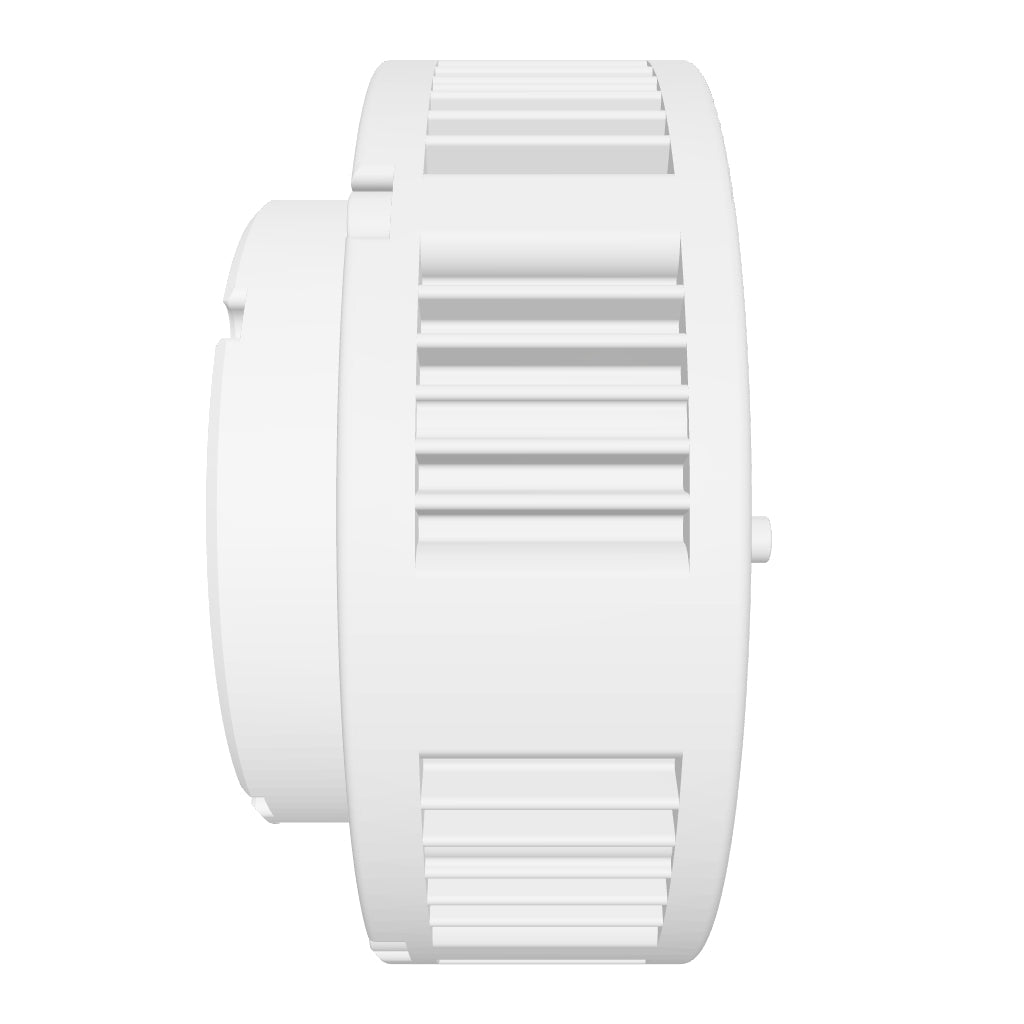

SteadyWin_GIM6010_8.stp

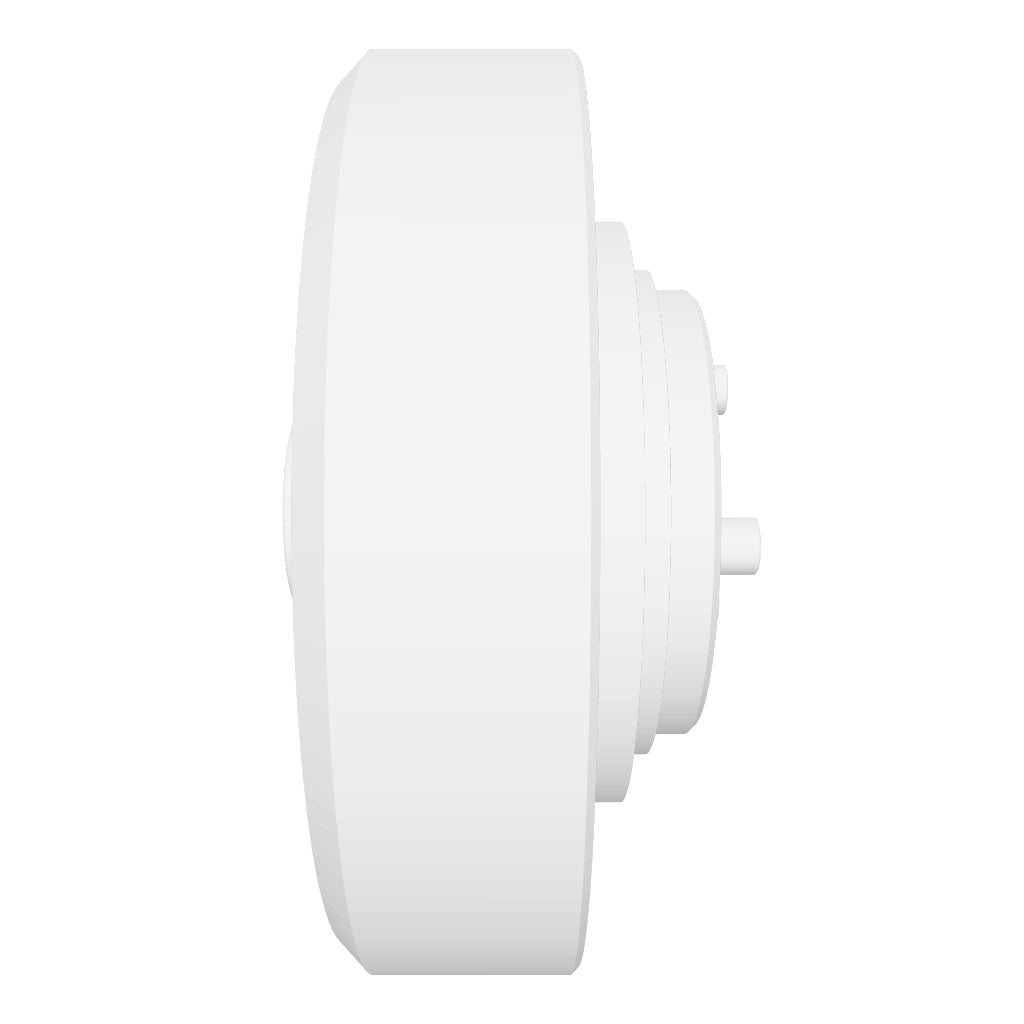

SteadyWin_GIM6010_8No_housing.stp
