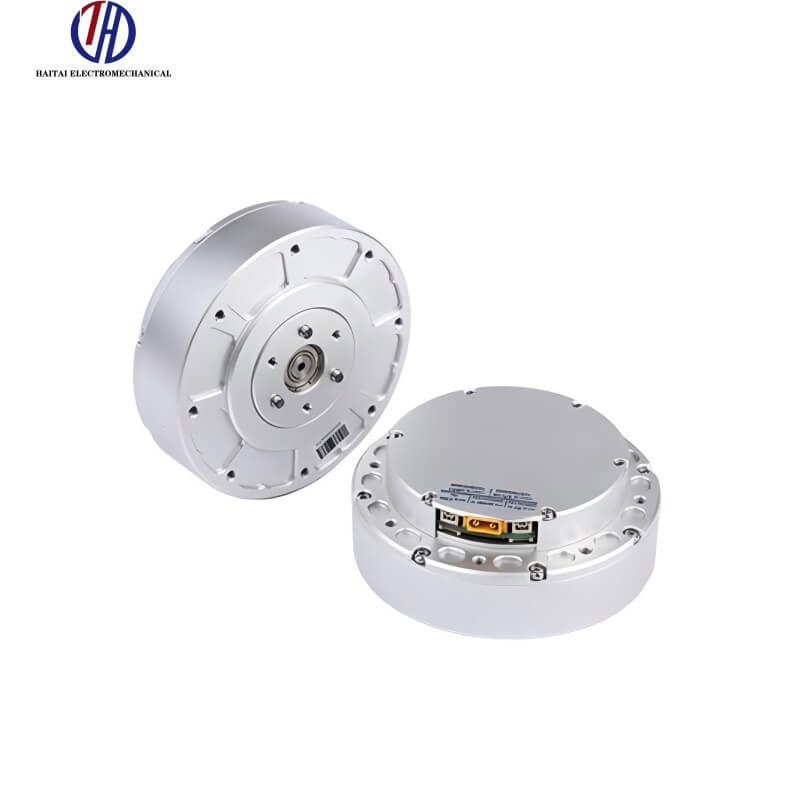

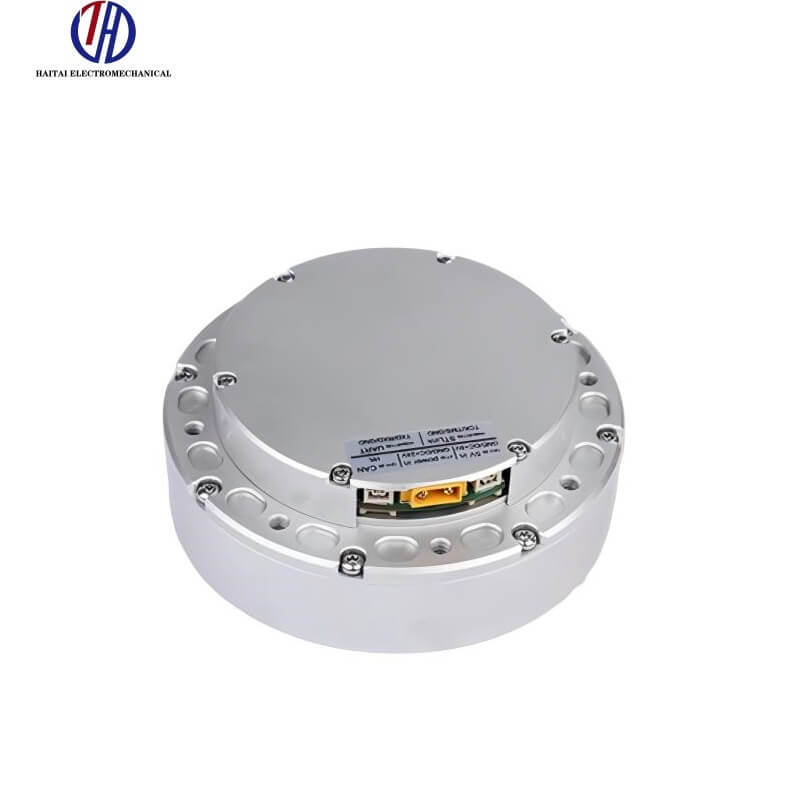

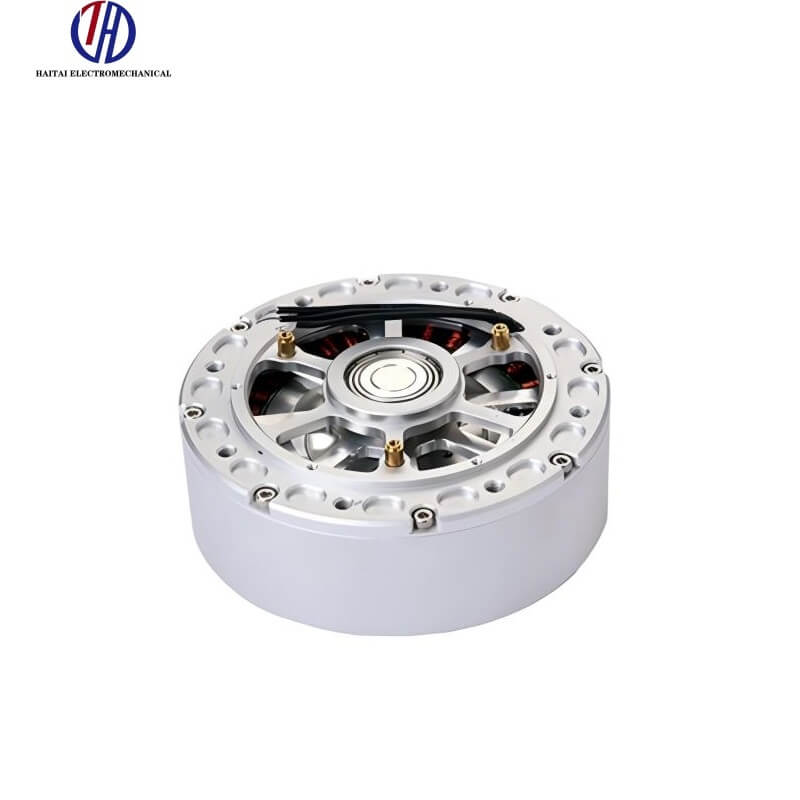

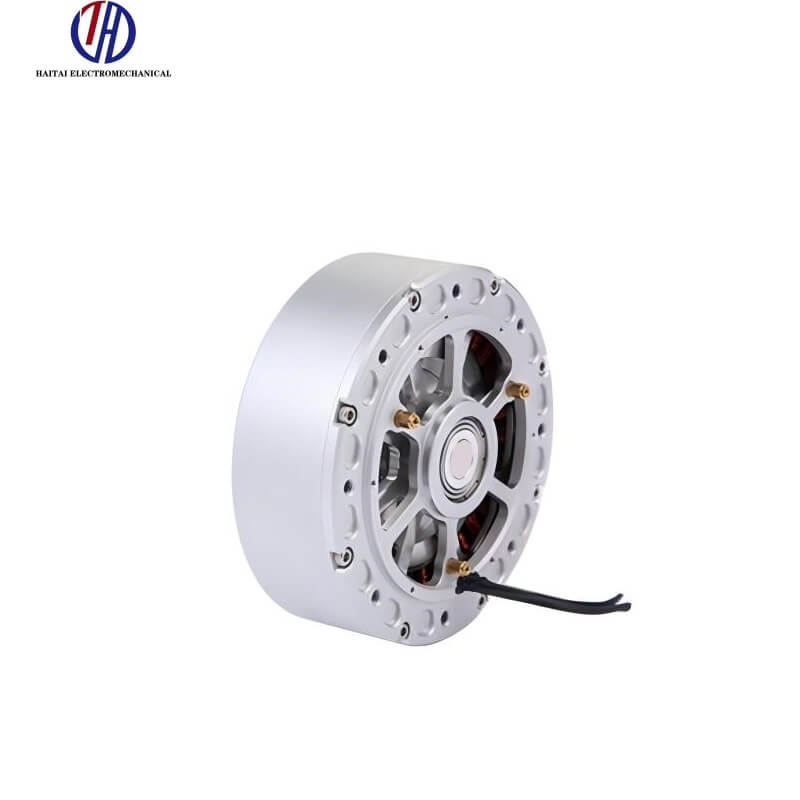

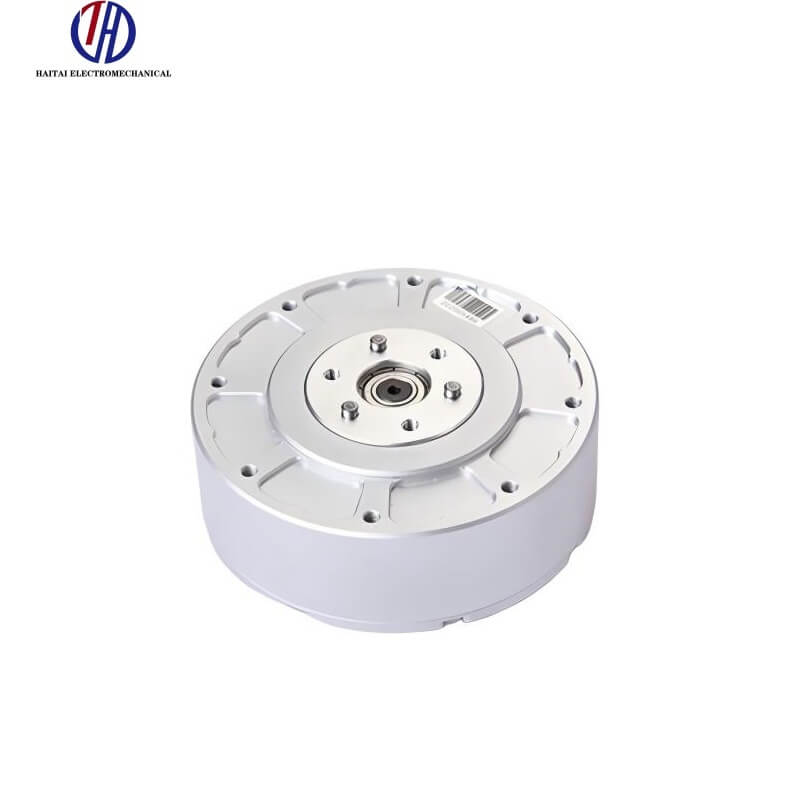

HAITAI HT8115-J6 Motor

$650.00

Version

HT8115-J6 Motor

Product variants

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Turns	16 turns
Wire diameter*strands	0.55mm
Nominal voltage	48V
Nominal current	6.5A
Nominal torque	13N·m
Nominal speed	300rpm
Max no-load speed	380rpm
Stall torque	35N·m
Stall current	10A
Line resistance	0.4Ω
Wire connection	Y
Phase to phase inductance	0.2mH
Speed constant	37rpm/V
Torque constant	3.5N·m/A
Rotor inertia	1500gc·m²
Number of pole pairs	21 pairs
Motor weight	714g
Connector	XT30/GH1.25
Drive input voltage range	24V-48V
Current range of drive	Normal:15A, Instant:30A
Communication	CAN Bus
Encoder resolution	0.087° (12-bit)
Control mode	Torque loop/speed loop/position loop
Working temperature range	-20℃ ~ 80℃
Max demagnetize temperature	120℃
