Description
xApplication Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|

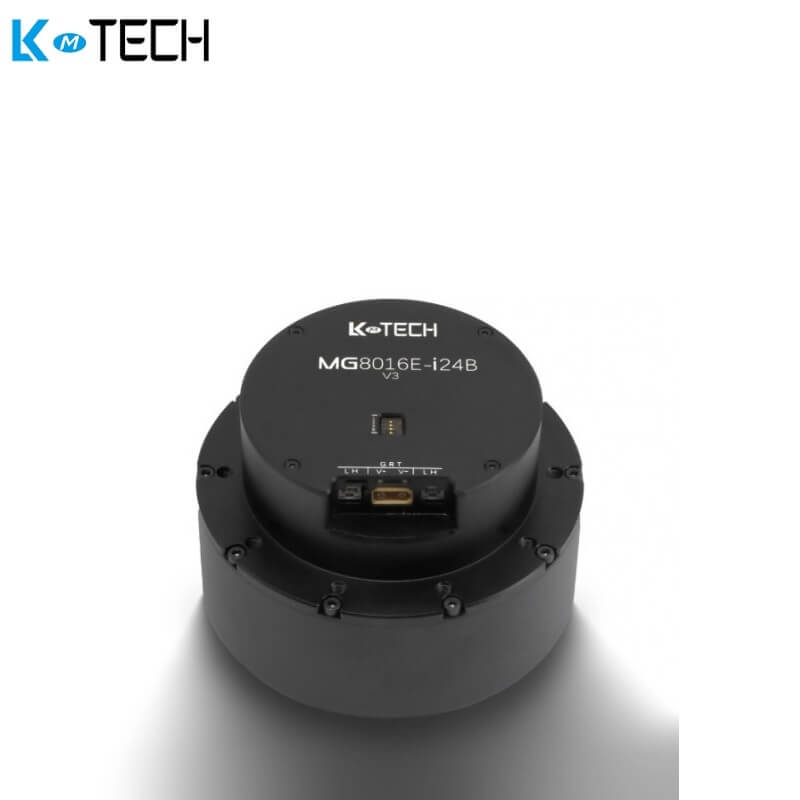

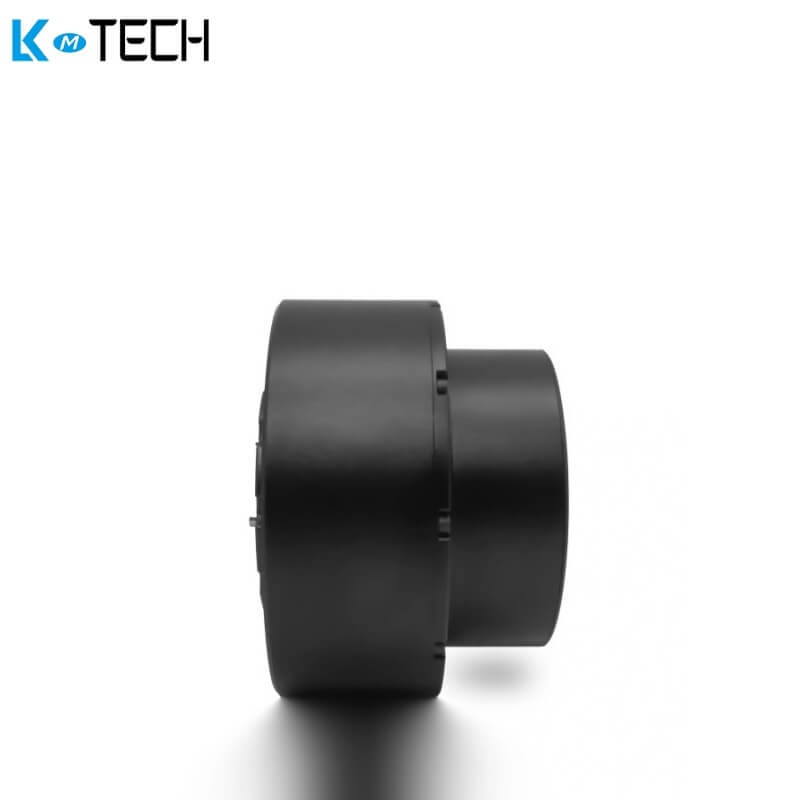

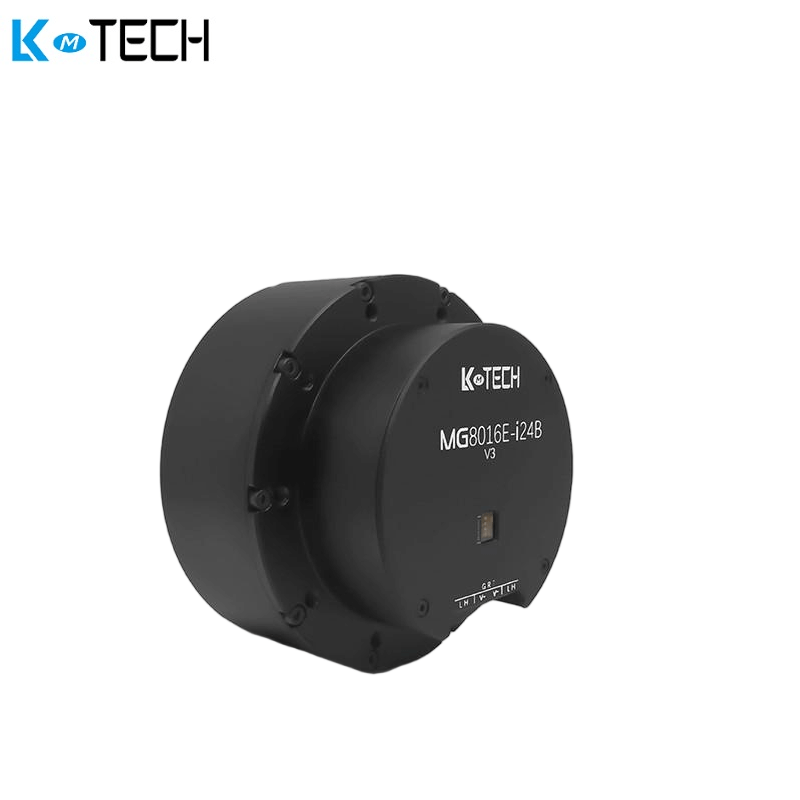

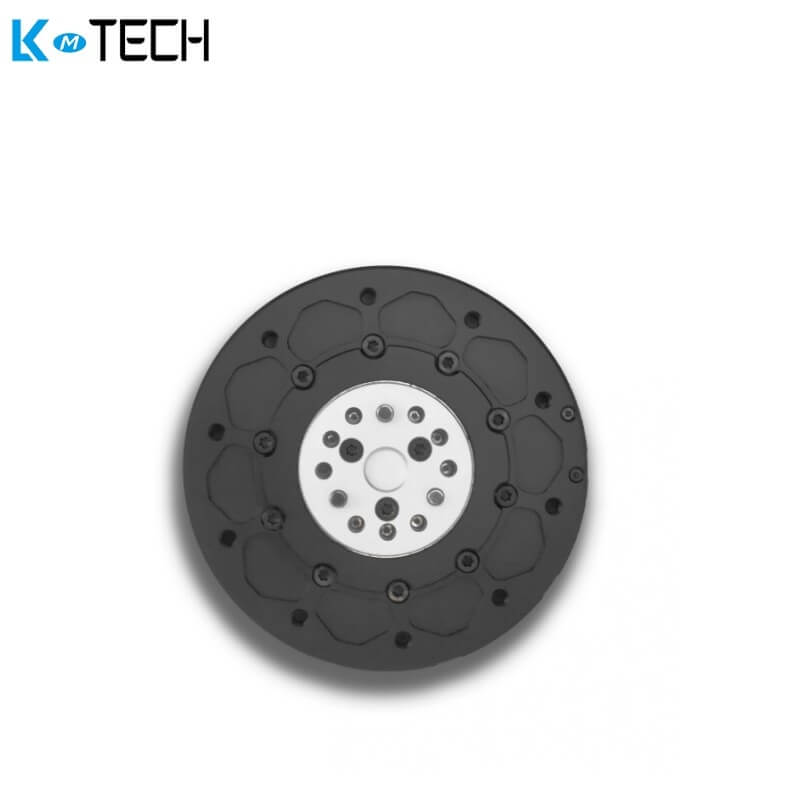

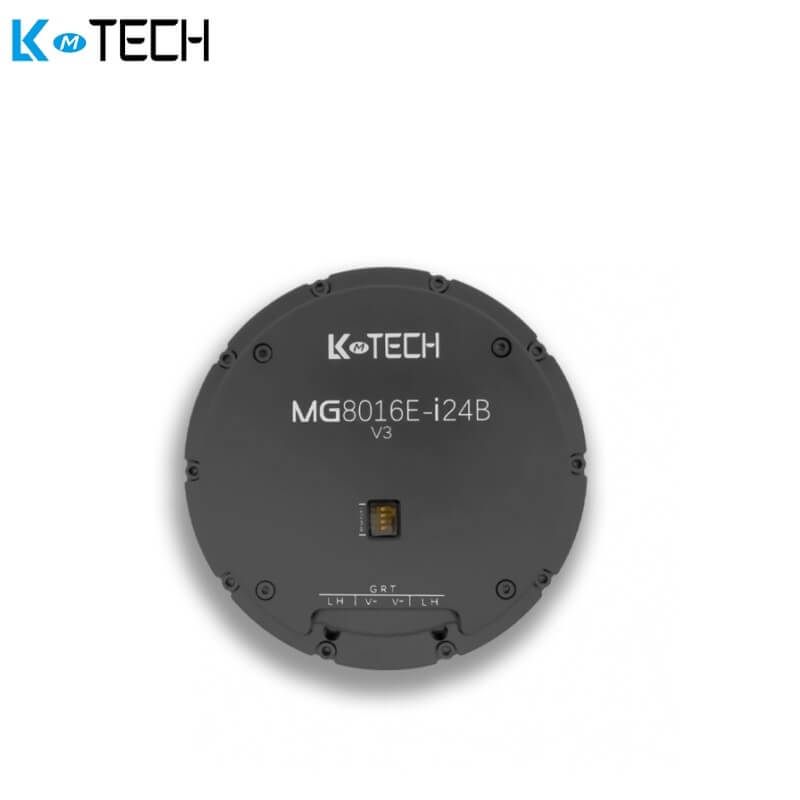

| ltem Name | MG8016E-i24Bv3 |
| Rated Voltage | 24V |
| Max Speed | 80RPM |
| Rated Torque | 30N.m |
| Rated Speed | 64RPM |
| Rated Current |
13A |
| Max Power |
500W |
| Max Torque | 45N.m |
| Speed constant | 64.6rpm/V |
| Torque Constant |
0.12N.m/A |
| Turns | 9 |
| Winding Type | Δ |
| Phase Resistance | 0.15Ω |
| Phase Inductance | 0.101mH |
| Motor Poles | 40 |
| Rotor inertia | 2505gcm² |
| Motor Temperature |
YES |
| Reducer Type | PG5524 |
| Reduction Ratio | 1:24 |
| Backlash | ≤10 arcmin |
| Bearing Rated Load |
1800N |
| Motor Weight | 1325g |
| Brake Type | MT32 |
| Brake Torque (N.m) | 3.2N.m |
| Startup Voltage (V) | 24V |
| Startup Power (W) | 16.3W |
| Sustaining Voltage (V) | 7V |
| Sustaining Power (W) | 1.4W |
| Recommend Drive | DG80v2 |
| Drive input Voltage | 12-60V |
| Communication | RS485 OR CAN |
| Communication Frequency | RS485:500Hz(115200bps)/CAN:2KHz(1Mbps) |
| Encoder | 18bit(motor)+14bit(reducer)Magnetic Encoder |
| Encoder Baudrate(RS485) | 9600、19200、57600、115200、230400、406800、1M、2Mbps |
| Baudrate(CAN) | 100K、125K、250K、500K、1M |
| Control Mode | Torque Loop(32KHz)/Speed Loop(8KHz)/Position Loop(4KHz) |
| Acceleration curve | Trapeziod acceleration |
MG8016E-i24B-INSTALLATION_DRAWING.pdf
