CubeMars W30 Underwater Thruster

$5.99

Version

1 pair propellers Nozzle ESC W30 Motor+1 pair propellers One set Thruster

Product variants

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Parameter	Value

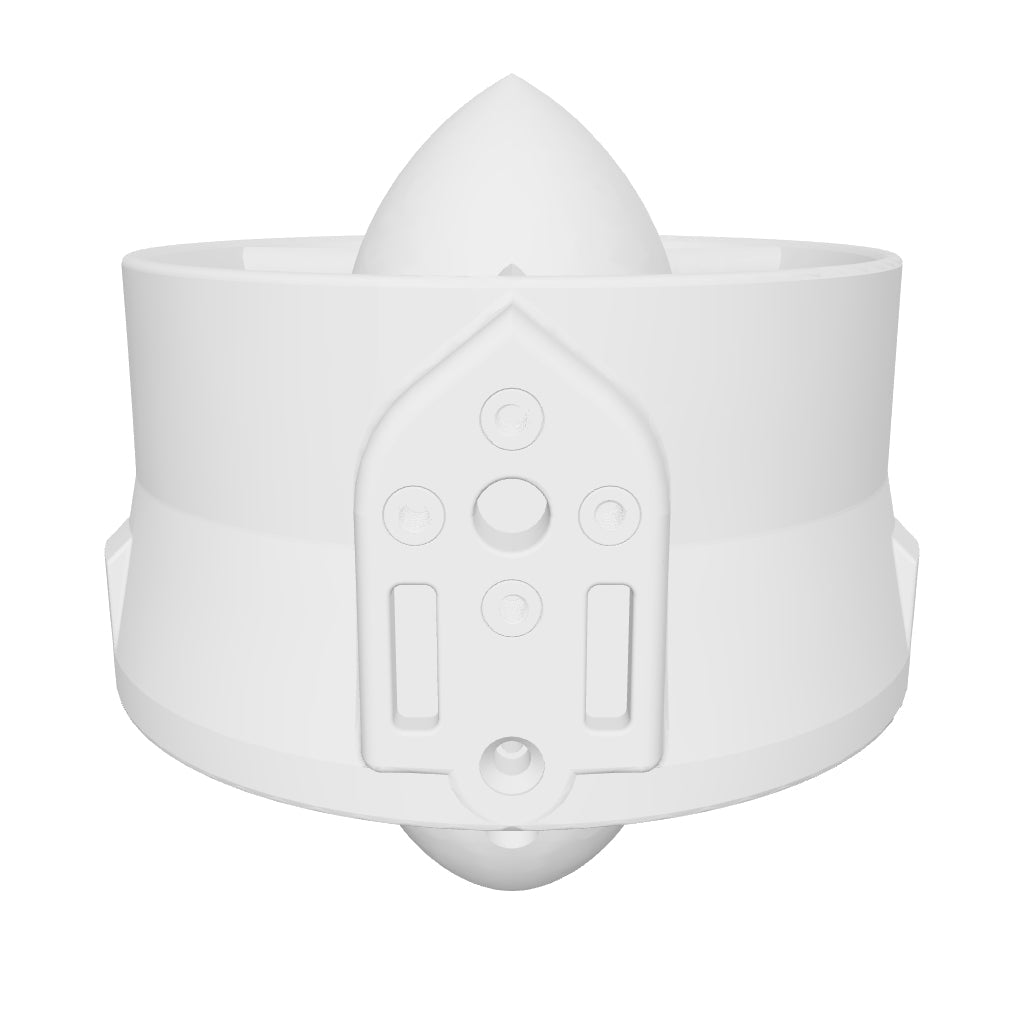

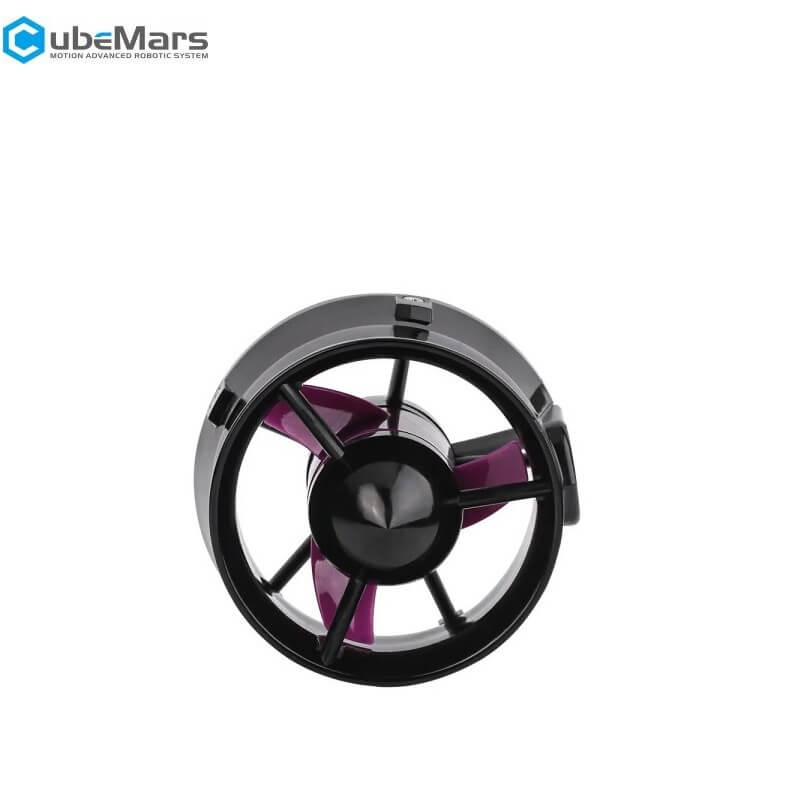

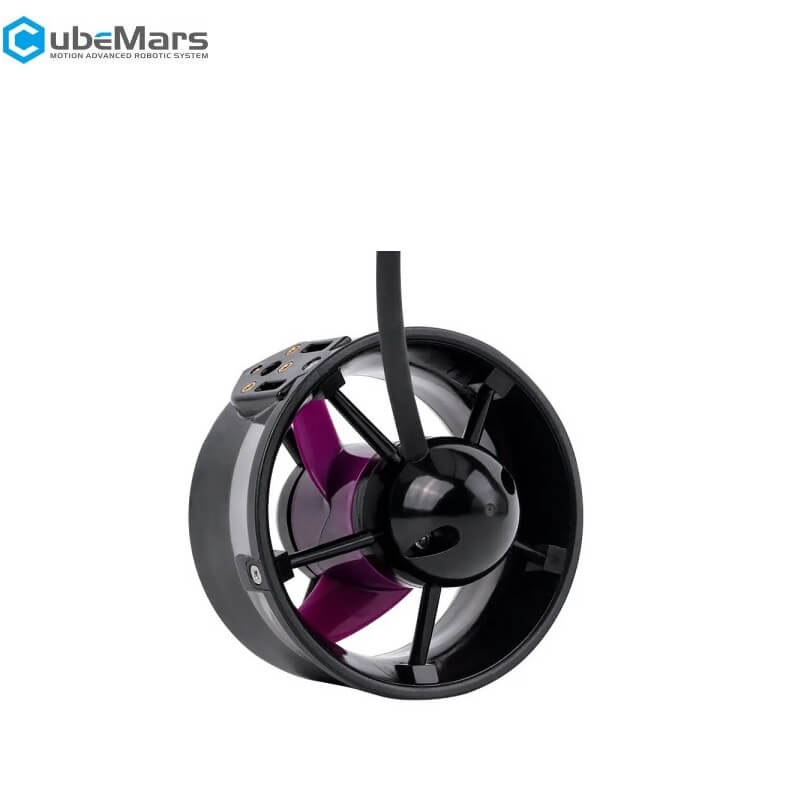

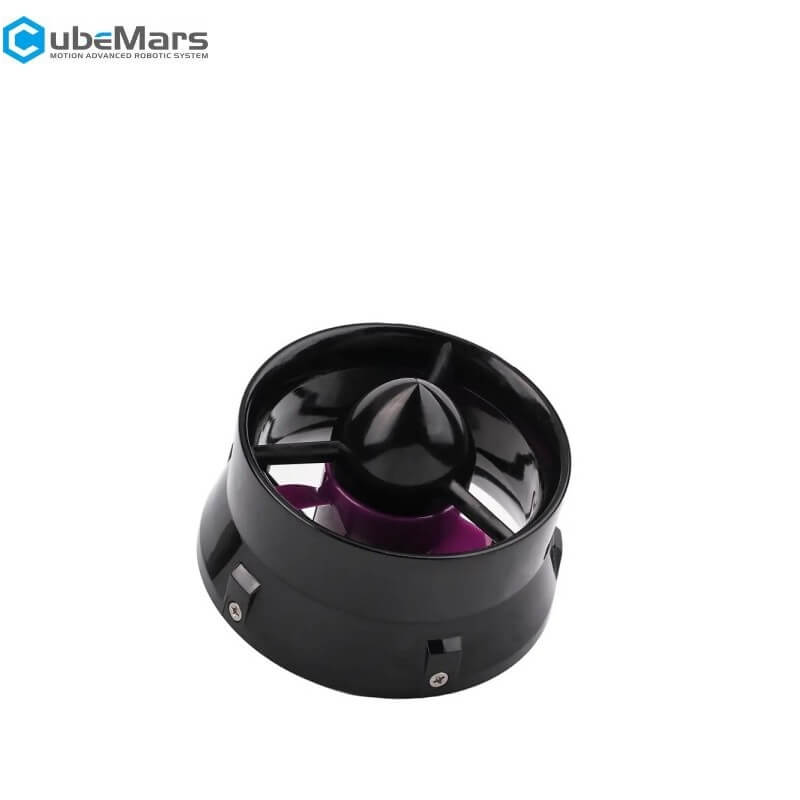

W30 Thruster - specification
Type	W30
Dimension	Ø100*108mm
Forward thrust	6.7kgf-7.7kgf
Backward thrust	5.0kgf-5.8kgf
Rate power	480W
Rated current	22A
Weight in air	420g
Weight in water	200g
Max. depth	200m
Wire configuration x length	18AWG*1000mm
Motor	W30 KV320
Battery(Lipo) recommend	6S(4.2V)
ESC	W30 ESC-6S-45A
Propeller	W30 Purple PC propeller
Package Weight	710g

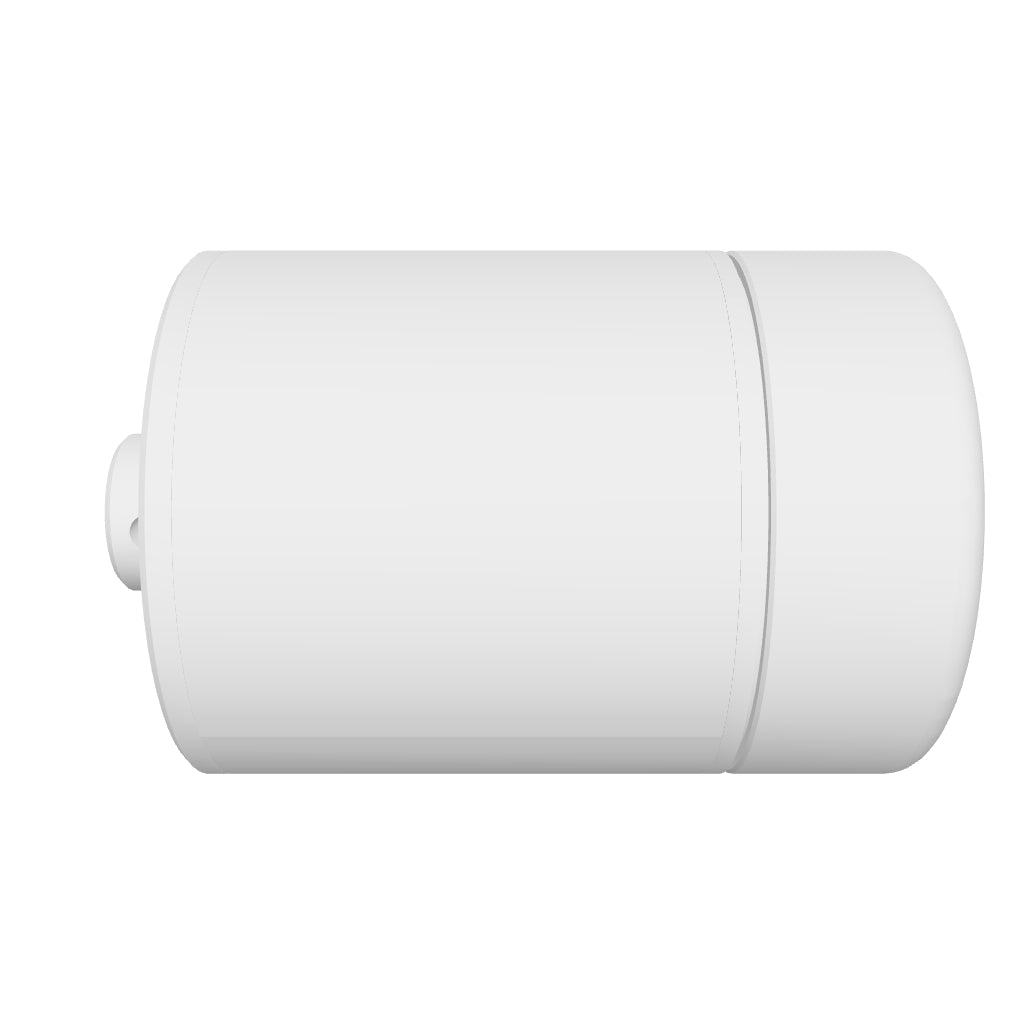

W30 KV320 motor - specification
Motor type	W30 KV320
Rated current	22A
No-load current@10V	0.5A
No-load RPM@10V	3200rpm
Inductance	125uH
Max. current	30A/180s
Max. power	720W/180s
Internal resistance	220mΩ
Rated power	480W
Weight	270g
Winding wire temperature-resistant	220℃
Wire configuration x length	18AWG*1000mm
Max. depth	200m
Slot/Pole	12N14P
Winding hi-pot	500V/5s
Package weight	580g

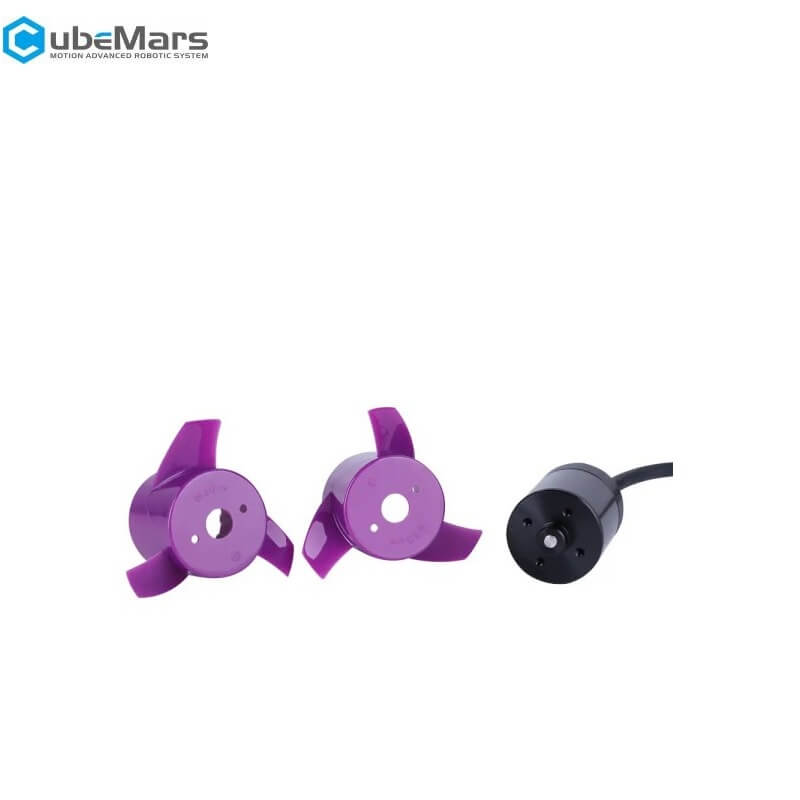

W30 3blades propeller - specification
Dimension	Ø76.1*36mm
Pitch	3.6 inch
Weight	12g

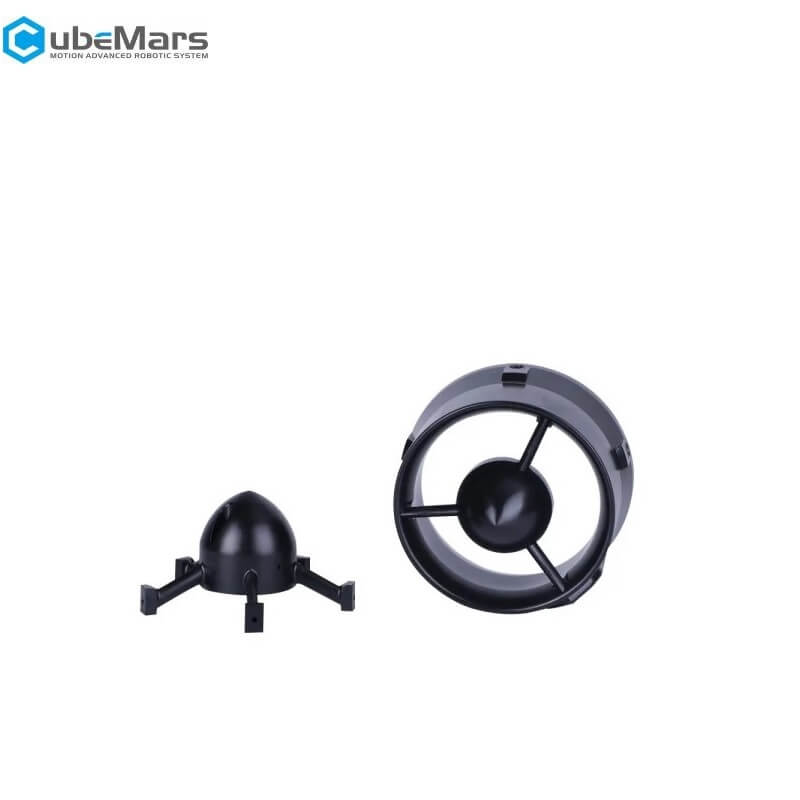

W30 Nozzle - specification
Dimension	Ø100*108mm
Weight	140g

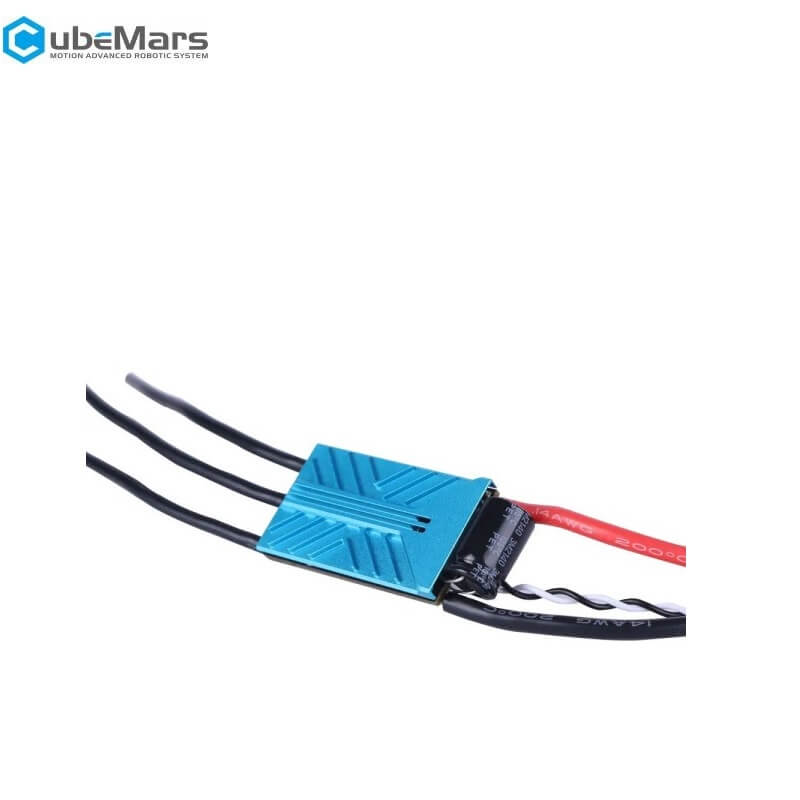

W30-6S-45A ESC - specification
Voltage	4-6S
Continuous current	45A
Instant current	50A(10s )
Standby loss	≤50mA
Throttle flash frenquency	400Hz
Motor wires	Black 16AWG 100mm*3p
Power wires	Red/Black 14AWG 200mm
Signal wires	PVC JR 3p
Throttle range	1000-2000us
Weight	32.5g
