Feetech | SKU:

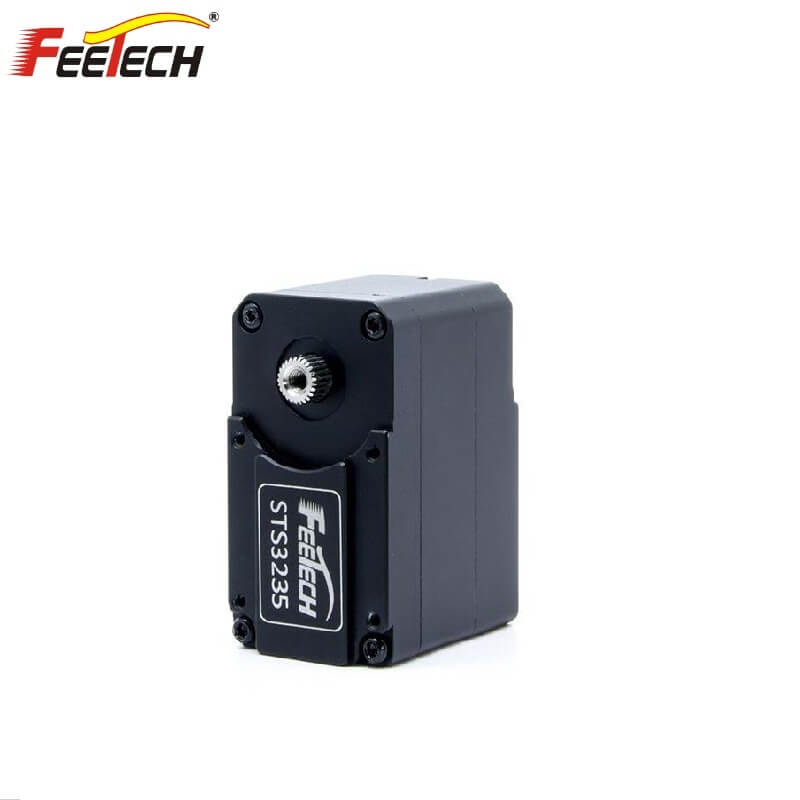

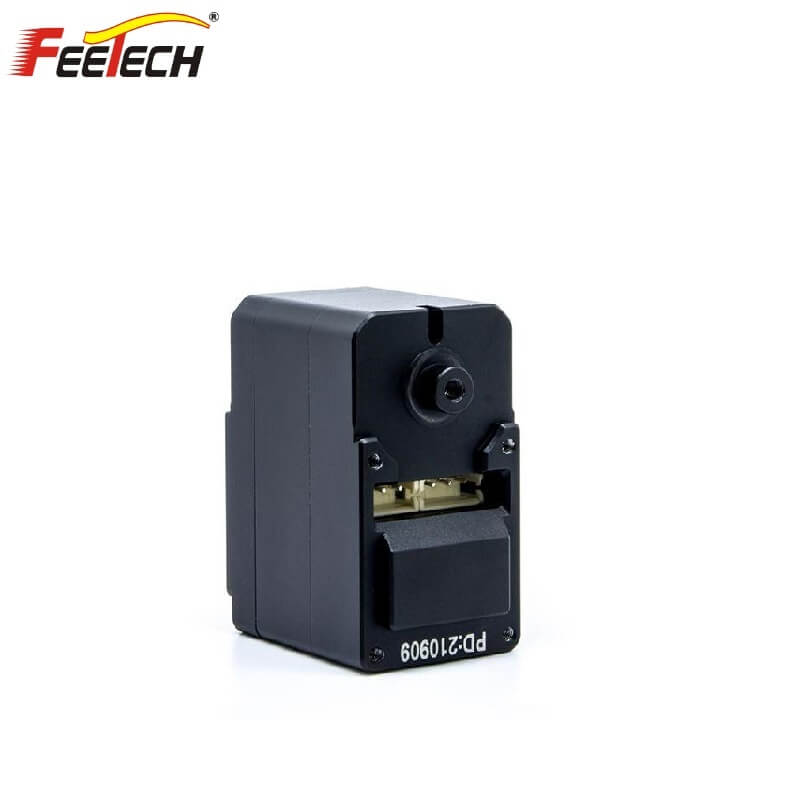

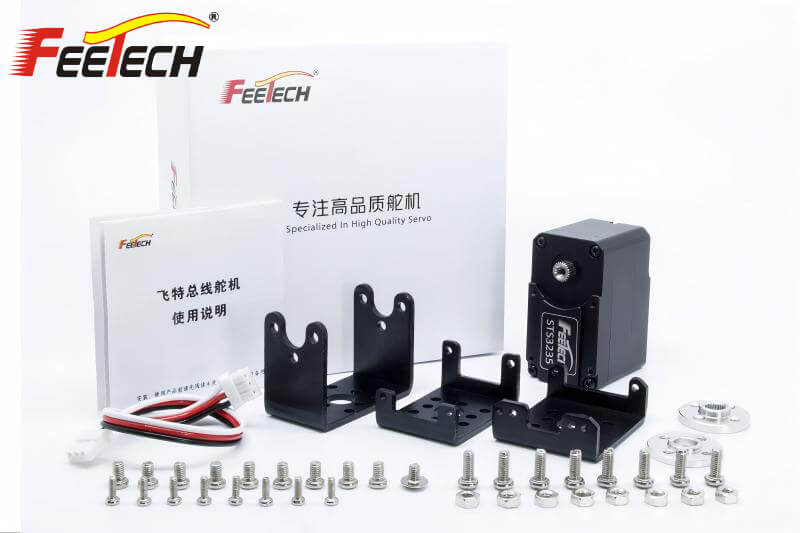

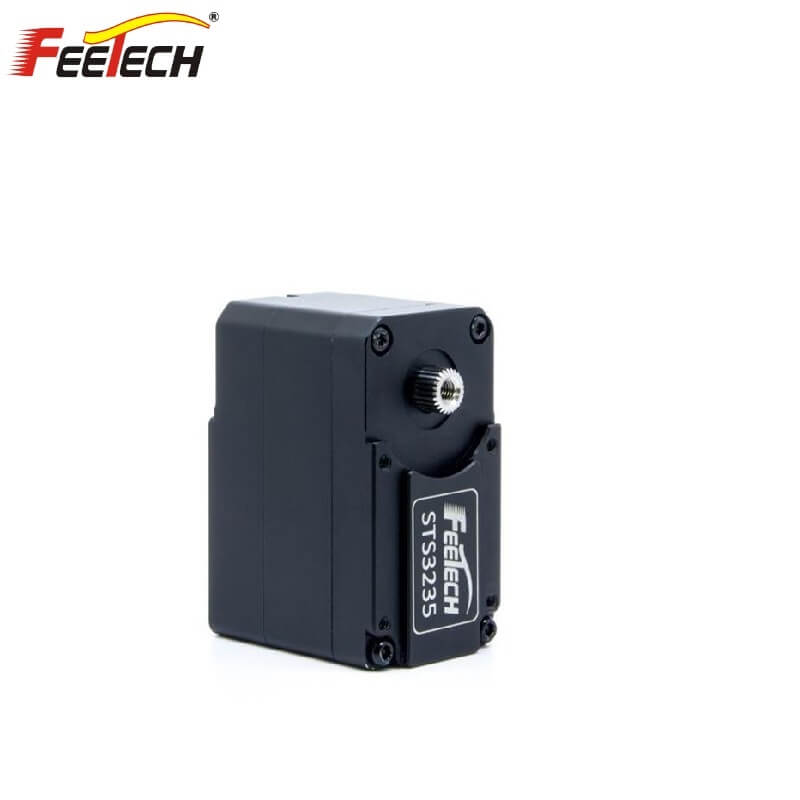

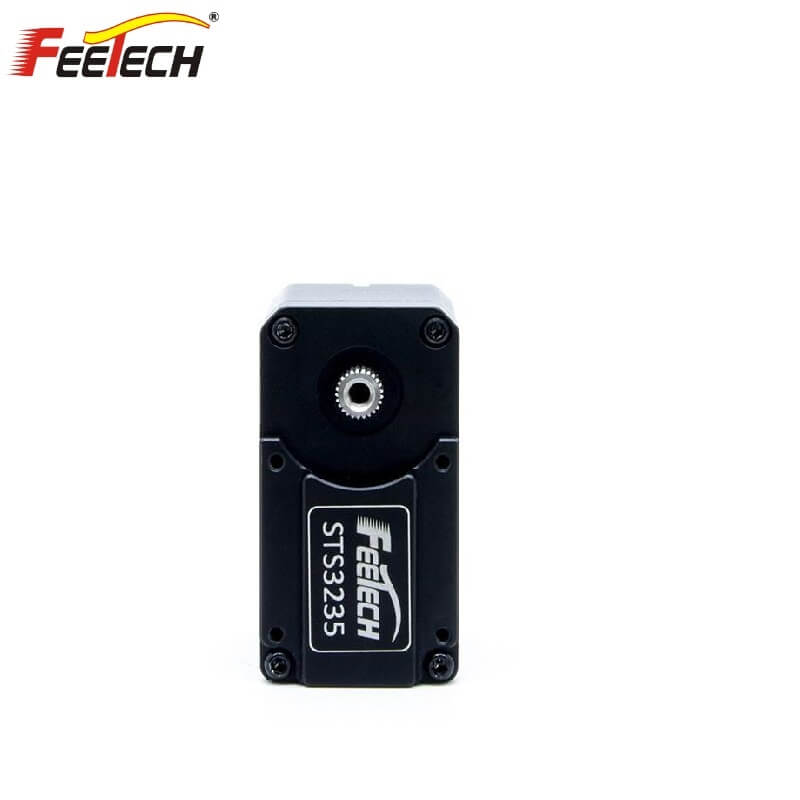

FEETECH STS3235 Servo Motor
Regular price
$56.00
Unit price
/
Unavailable
FEETECH STS3235 Servo Motor - ST-3235-C001 (12V30KG) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH STS3235 Servo Motor
Regular price
From
$56.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | |
|---|---|
| Model | STS3235 |
| Product Name |
12V 30KG Magnetic Encoder Double Shaft TTL Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Dimensions |
A：45.22mm B：24.72mm C：35mm |
| Weight | 70.5± 1g |
| Gear type |
Steel Gear |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/OD5.9mm |
| The rocker phantom |
0° |
| Case | Aluminium |
| Connector wire | 15cm |
| Motor |
Core Motor |
| Operating Voltage Range | 6-12V |
| No load speed | 0.222sec/60°@12V |
| Runnig current(at no load) | 190mA@12V |
| Peak stall torque | 30kg.cm@12V |
| Rated torque | 10kg.cm@12V |
| Stall current |
2.7A@12V |
| Command signal |
Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID Range | 0-253 |
| Communication speed |
38400bps ~ 1 Mbps |
| Running degree | 360° (when 0~4096) |
| Feedback | Load,Position,Speed,InputVoltage ,Temperature |
