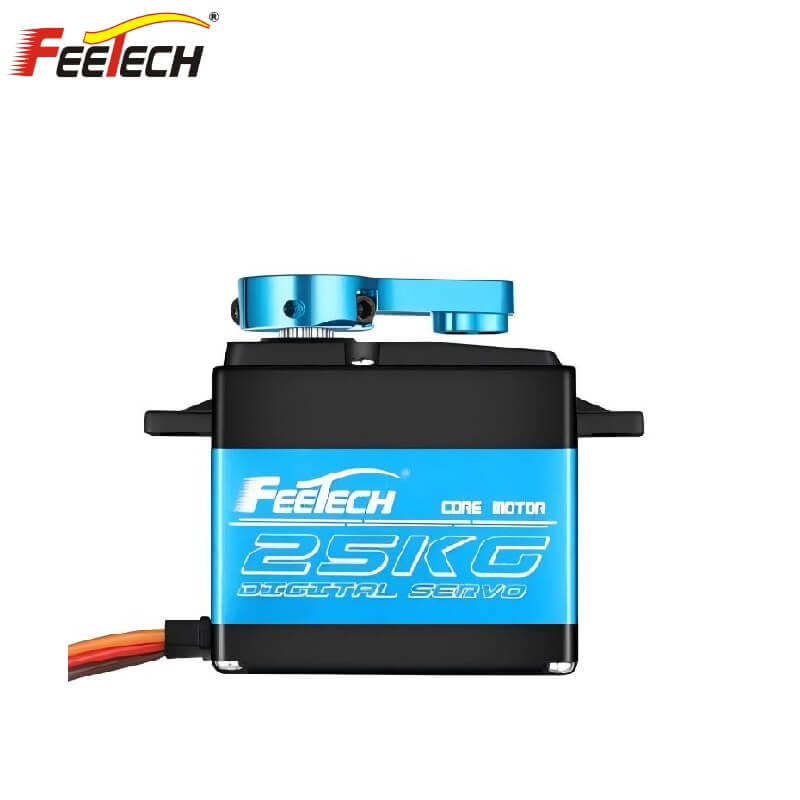

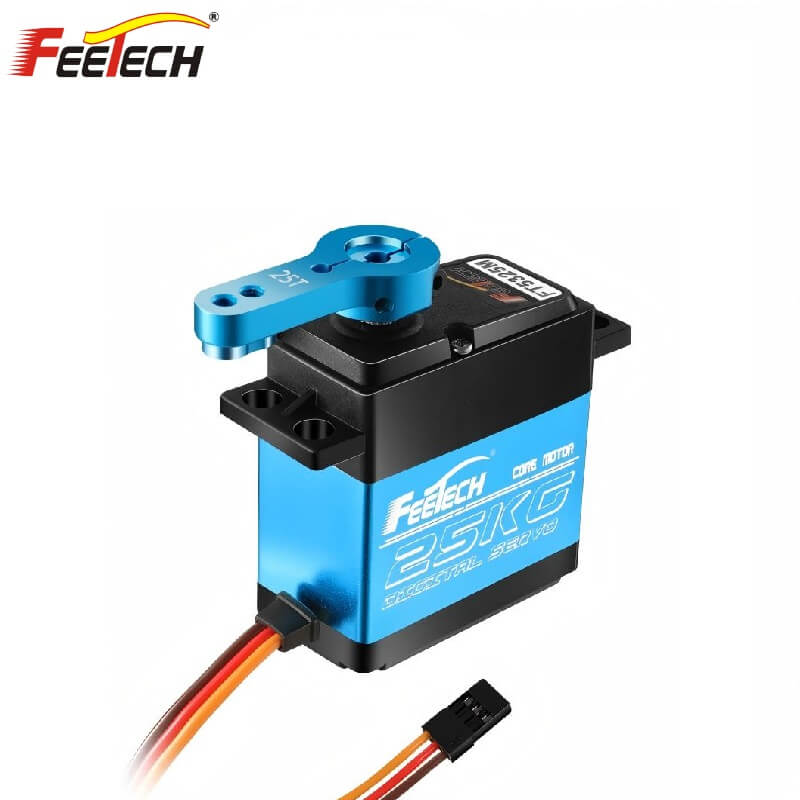

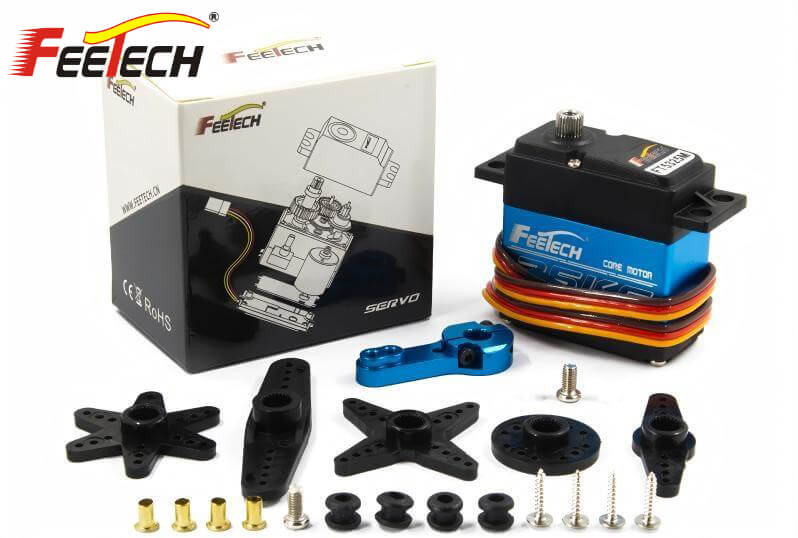

FEETECH FT5325M Servo Motor
Regular price
$19.00
Unit price
/
Unavailable
FEETECH FT5325M Servo Motor - FT-5325-C001 (7.4V25KG) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT5325M Servo Motor
Regular price
$19.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | |
|---|---|
| Model | FT5325M |
| Product Name |
7.4V 25kg.cm digital 180 degree aluminum mid-shell servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Dimensions |
A：55mm B：20mm C:43mm |
| Weight | 67土1g |

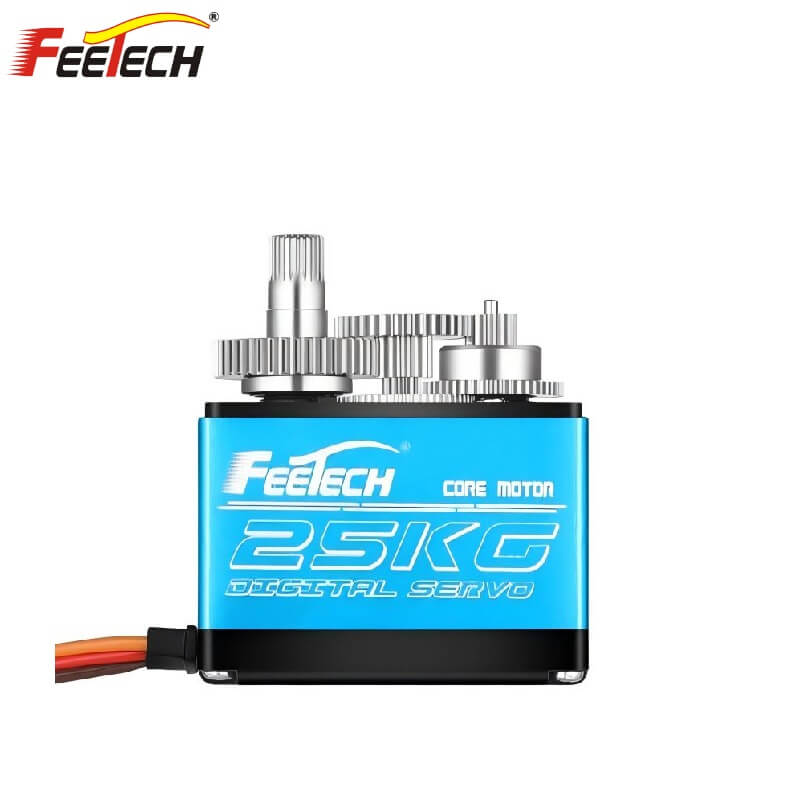

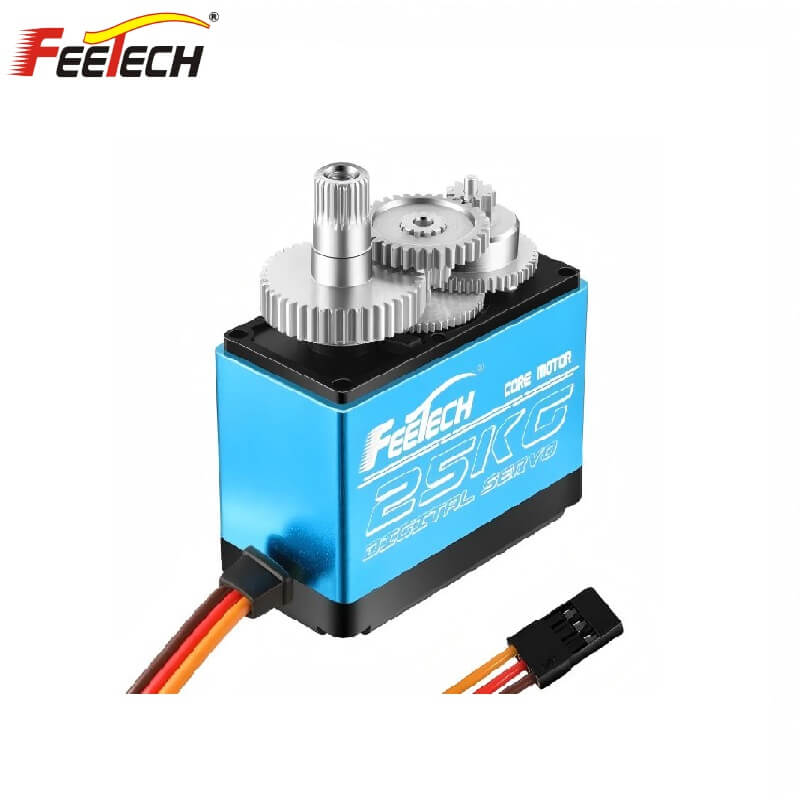

| Gear type |
Steel Gear |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Horn type |
Plastic, POM |
| Case | PA+Aluminium |
| Connector wire | 30CM |
| Motor |
Core Motor |
| Operating Voltage Range | 6V-7.4V |
| Idle current (at stopped) | 6MA@7.4V |
| No load speed | 0. 151sec/60°@7.4V |
| Runnig current(at no load) | 120mA@7.4V |
| Peak stall torque | 250kg.cm@7.4V |
| Rated torque | 8.3kg.cm@7.4V |
| Stall current |
3.5A@7.4V |
| Command signal |
Pulse width modification |
| Amplifier type | Digital compara tor |
| Pulse width range |
900~2100μsec |
| Stop position |
1500 μ sec |
| Running degree |
180° Continuous Rotation |
| Dead band width | +/-25 μsec |
| Rotating direction | Counterclockwise (1500→2000 μ sec) |
