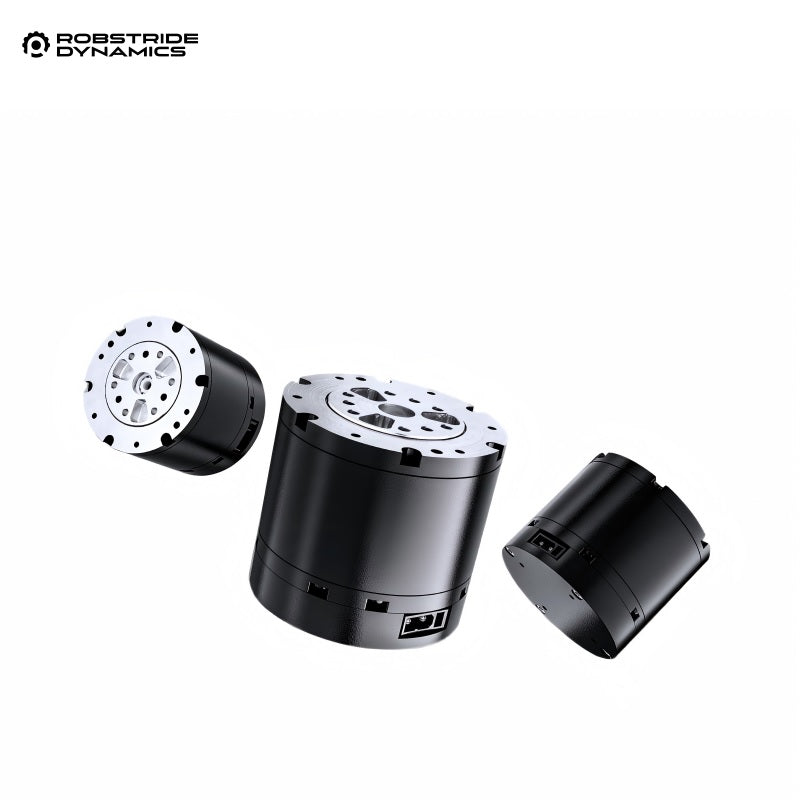

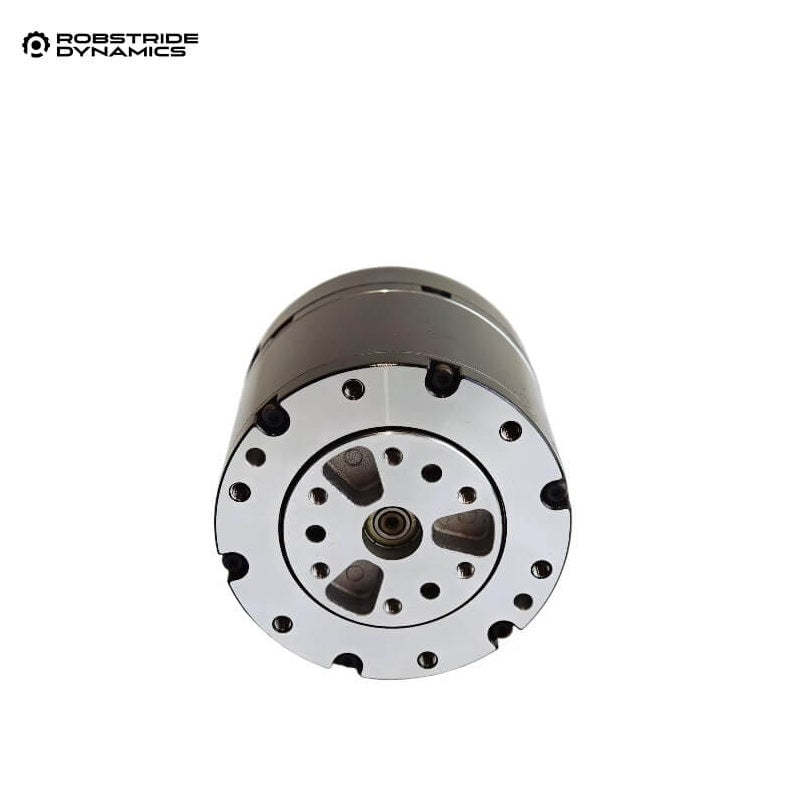

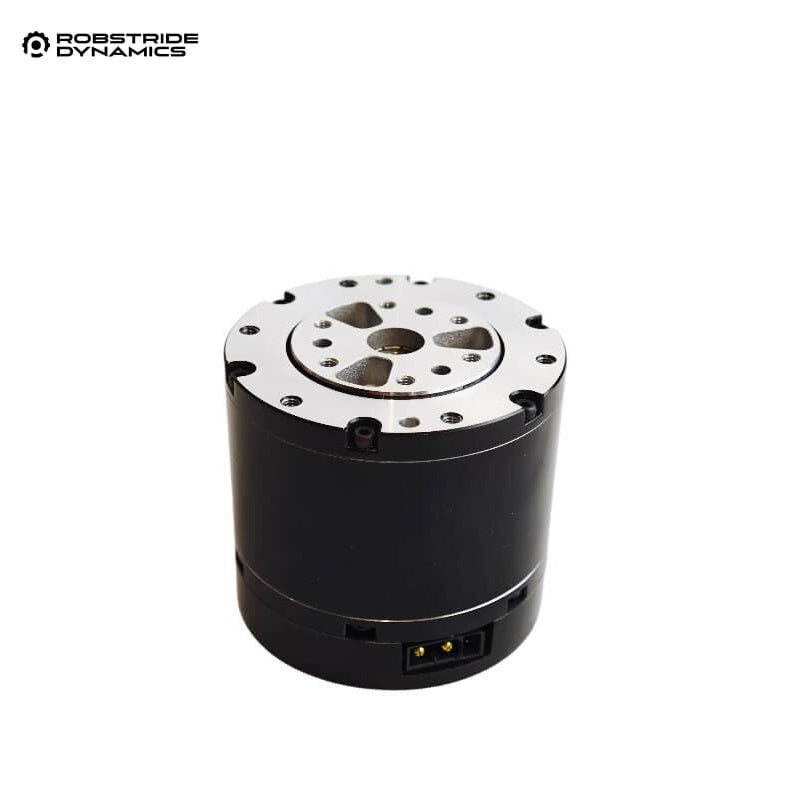

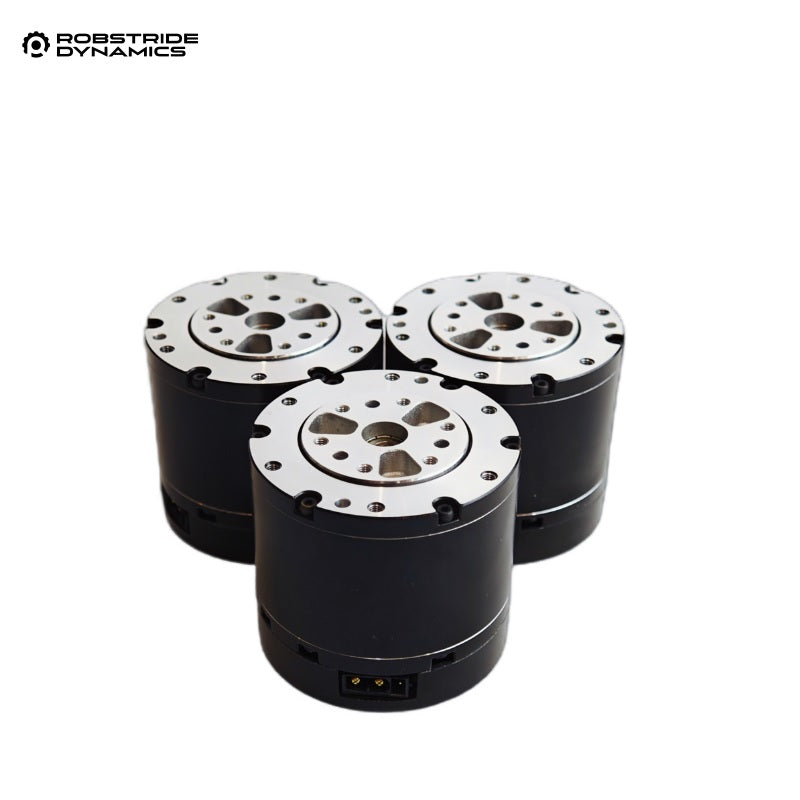

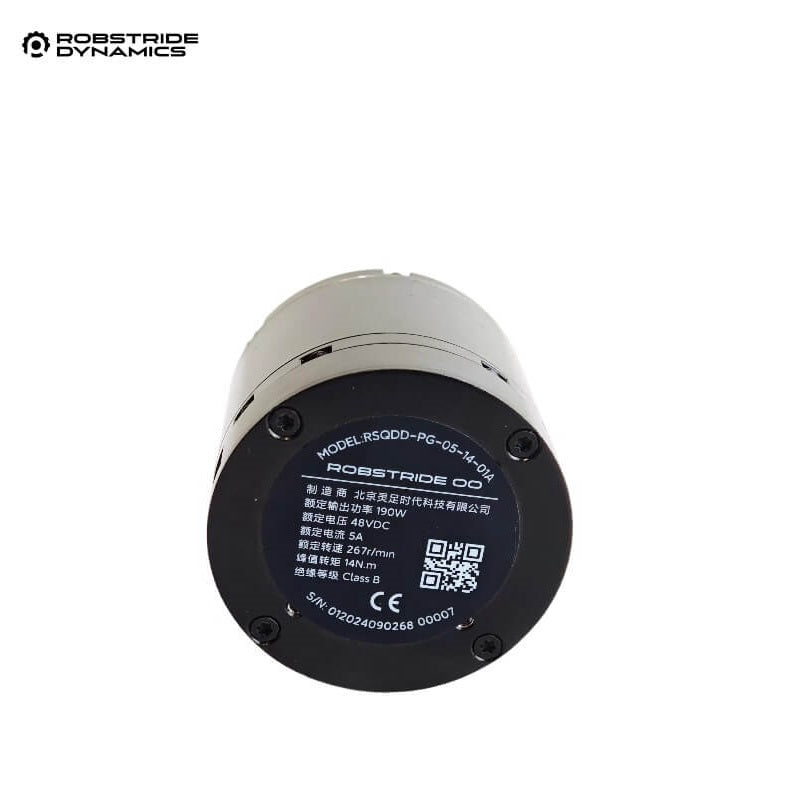

ROBSTRIDE 00 Motor

$125.00

Version

Only Motor Motor + USB-to-CAN Module

Product variants

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Model	ROBSTRIDE 00
Rated Voltage	48 VDC
Operating Voltage Range	24 VDC – 60 VDC
Rated Torque (CW)	5 N·m
Rotation Direction	CW / CCW
Dimensions	57 mm x 57 mm x 51 mm
Weight	310 g ± 3 g
Standard Operating Temperature	25 °C ± 5 °C
Operating Temperature Range	-20 °C to +50 °C
Standard Operating Humidity	65% RH
Operating Humidity Range	5% to 85% RH, non-condensing
Storage Temperature Range	-30 °C to +70 °C
Insulation Class	Class B
No-Load Speed	315 rpm ± 10%
No-Load Current	0.5 A RMS
Rated Torque	5 N·m
Rated Speed (at Rated Torque)	260 rpm ± 10%
Phase Current at Rated Load (Peak)	4.7 A pk ± 10%
Peak Torque	14 N·m
Maximum Phase Current (Peak)	15.5 A pk ± 10%
Insulation Resistance (Stator Winding)	100 MΩ min @ 500 VDC
Hi-Pot Test (Stator to Frame)	600 VAC, 1 second, 2 mA max leakage
Motor Back-EMF Constant	9.5 V RMS / kRPM ± 10%
Torque Constant	1.48 N·m / A RMS
CAN Bus Bit Rate	1 Mbps
Encoder Resolution	14-bit (Single-Turn Absolute)
Encoder Type	Magnetic Encoder
Number of Encoders	2
Wiring Method	One input / one output
Number of Poles	28
Number of Phases	3
Drive Method	FOC
Gear Ratio	10：1
