Unitree | SKU:
Sold out

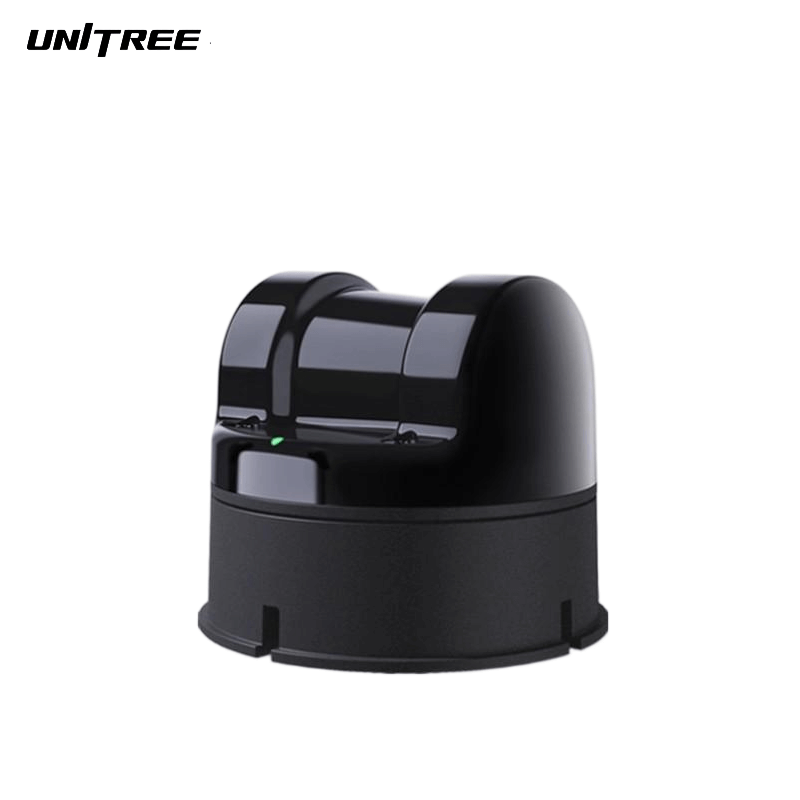

Unitree 4D LiDAR L1
Regular price
$180.00
Unit price
/
Unavailable
Unitree 4D LiDAR L1 - L1 PM Standard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Unitree 4D LiDAR L1
Regular price
From
$180.00
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model |
L1 PM(Precision Measurement) |
L1 RM(Remote Measurement) |
| Scanning distance |
20m(@90% reflectivity) 10m(@10% reflectivity) |
30m(@90% reflectivity) 15m(@10% reflectivity) |
| FOV | 360° × 90° | 360° × 90° |
| Power | 6W | 6W |
| Size mm | 75×75×65 | 75×75×65 |
| Weight |
230g |
230g |
| Operating | Indoor/outdoor | Indoor/outdoor |
| Technology | Laser TOF | Laser TOF |
| Measurement accuracy | ±2.0cm | ±2.0cm |
| Nearbyblind area | 0.05m | 0.05m |
| Sampling frequency | 43200points/s | 43200points/s |
| Effective frequency | 21600points/s | 21600points/s |
| Circumferential scanning frequency |
11Hz |
11Hz |
| Vertical scanning frequency |
180Hz |
180Hz |
| Communication interface |
TTL UART |
TTL UART |
| IMU |
3-axis acceleration +3-axis gyroscope |
3-axis acceleration +3-axis gyroscope |
| Human eye safety level |
Class 1(IEC60825-1:2014) Human eye safety |
Class 1(IEC60825-1:2014) Human eye safety |
| 4D data |
3D position +1D grayscale |
3D position +1D grayscale |
| Anti-glare capability |
>100KIux |
>100KIux |
