Feetech | SKU:

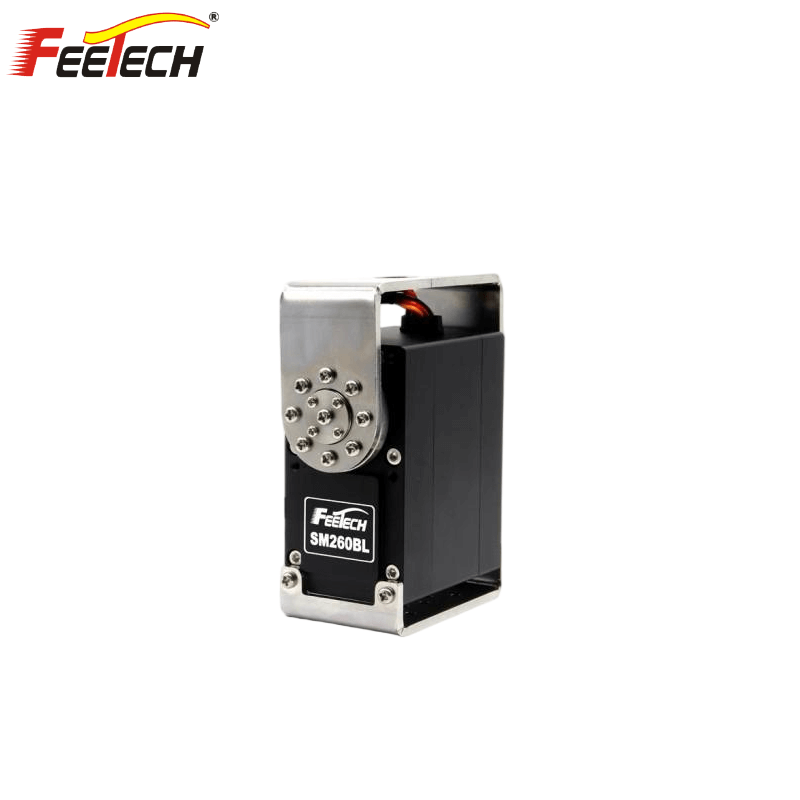

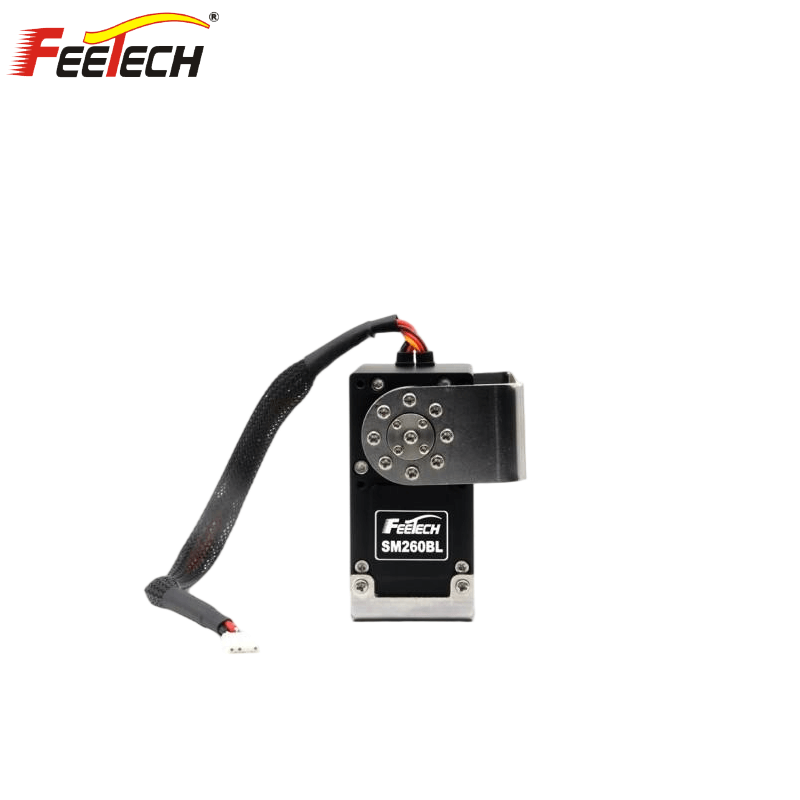

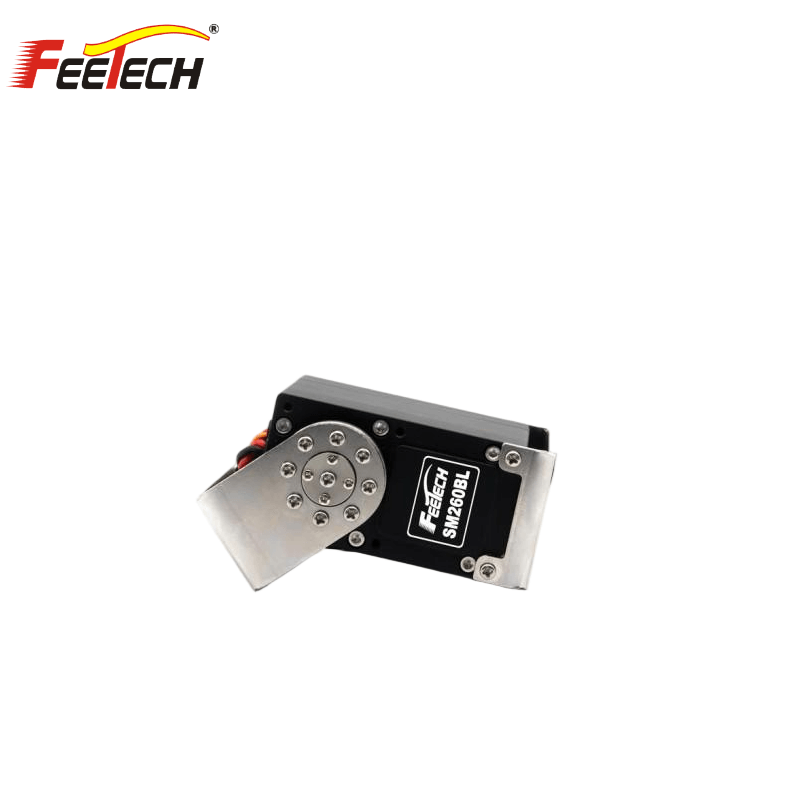

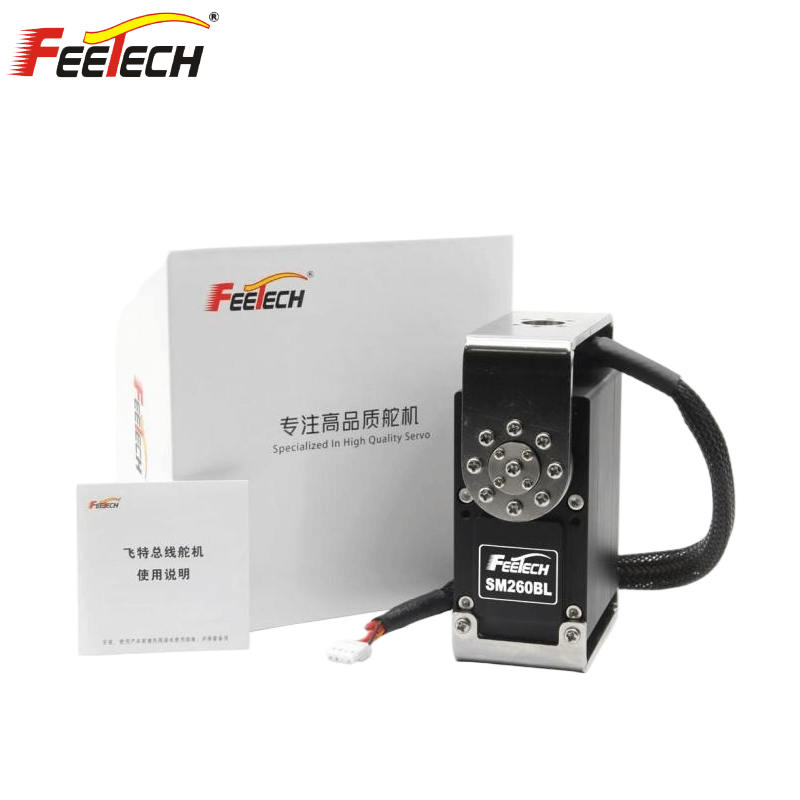

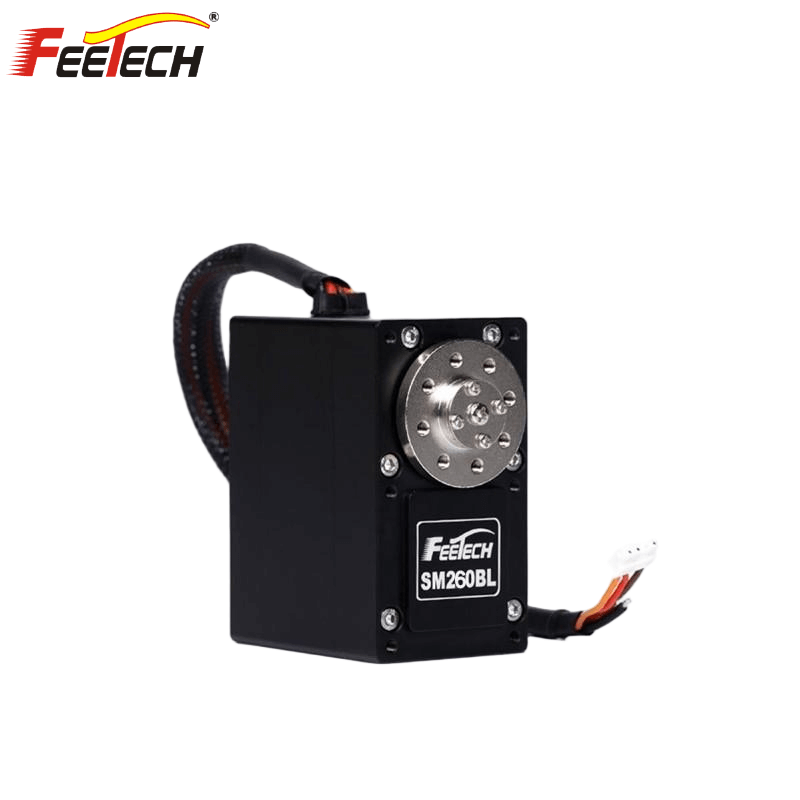

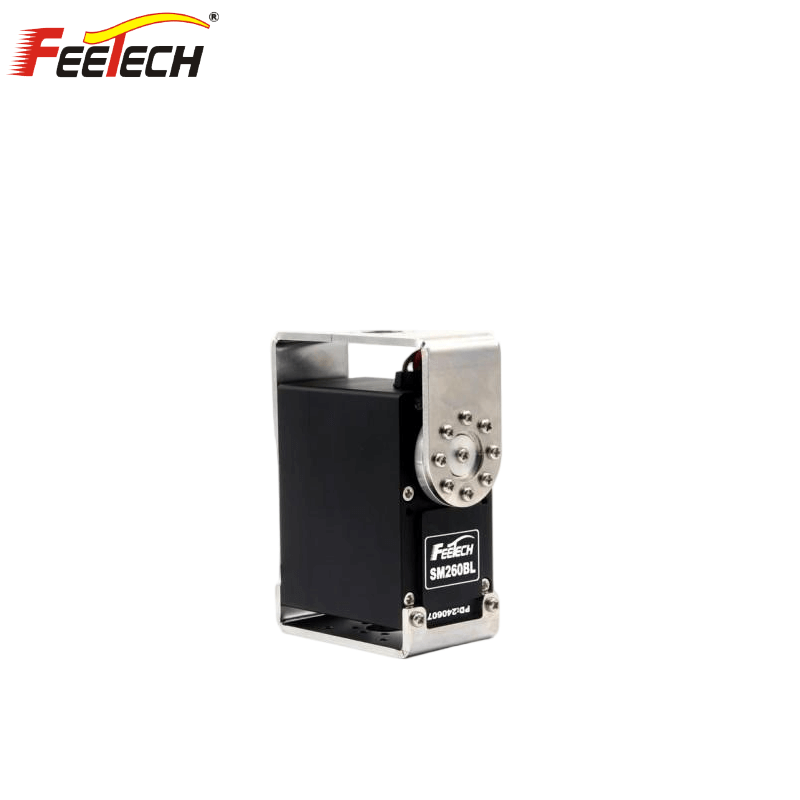

FEETECH SM260B-C001 Servo Motor
Regular price
$645.00
Unit price
/
Unavailable
FEETECH SM260B-C001 Servo Motor - SM-260B-C001 / MODBUS-RTU Protocol is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH SM260B-C001 Servo Motor
Regular price
From
$645.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SM-260B-C001 |
| Product Name | 24V 260kg.cm Serial Control RS485 Servo |
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Dimensions | A：78mm B：43mm C：65.5mm |
| Weight | 455g |
| Gear type | Steel |
| Limit angle | No limit |
| Bearing | Ball bearings |
| Horn gear spline | One character (OD10mm) |
| Horn type | ≤0.8° |
| Case | Aluminium |
| Connector wire | 30CM |
| Motor | 4 Pole Brushless motor |
| Operating Voltage Range | 24V |
| No load speed | 0.192sec/60° 52RPM@24V |
| Runnig current(at no load) | 320 mA@24V |
| Peak stall torque | 260kg.cm@24V |
| Stall current | 9.1A@24V |
| Rated Load | 65kg.cm@24V |
| Rated current | 2200mA@24V |
| KM constant | 28.5kg.cm/A |
| Terminal resistance | 2.0 Ω |
| Command signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 360° (when 0~4096) |
| Feedback | Load, Position, Speed, Input Voltage, Current, Temperature |
| Position Sensor Resolution | 12Bits Magnetic Coding(360°/4096) |
