LKMTECH | SKU:

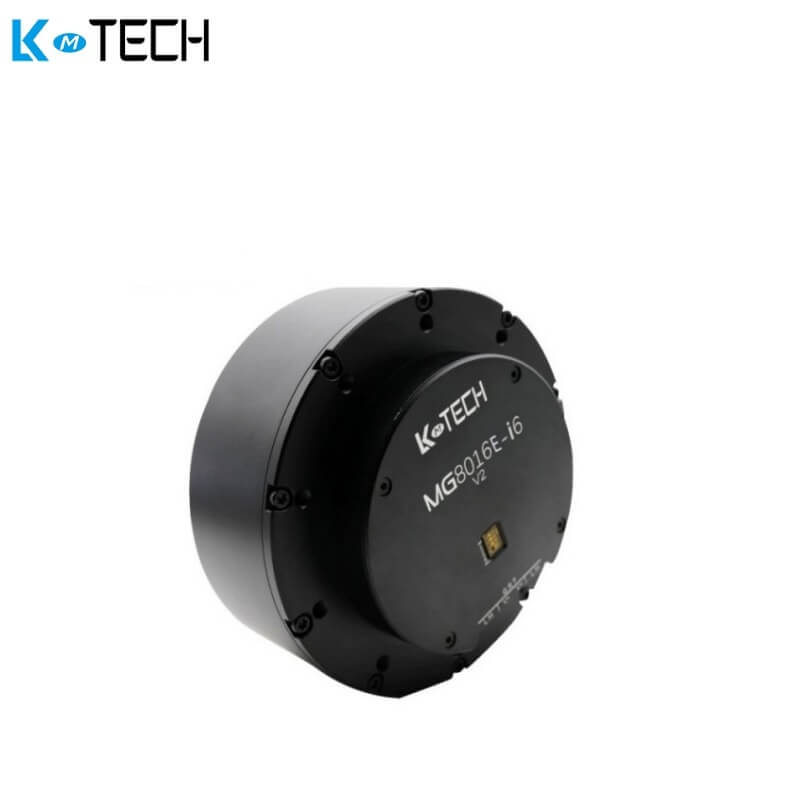

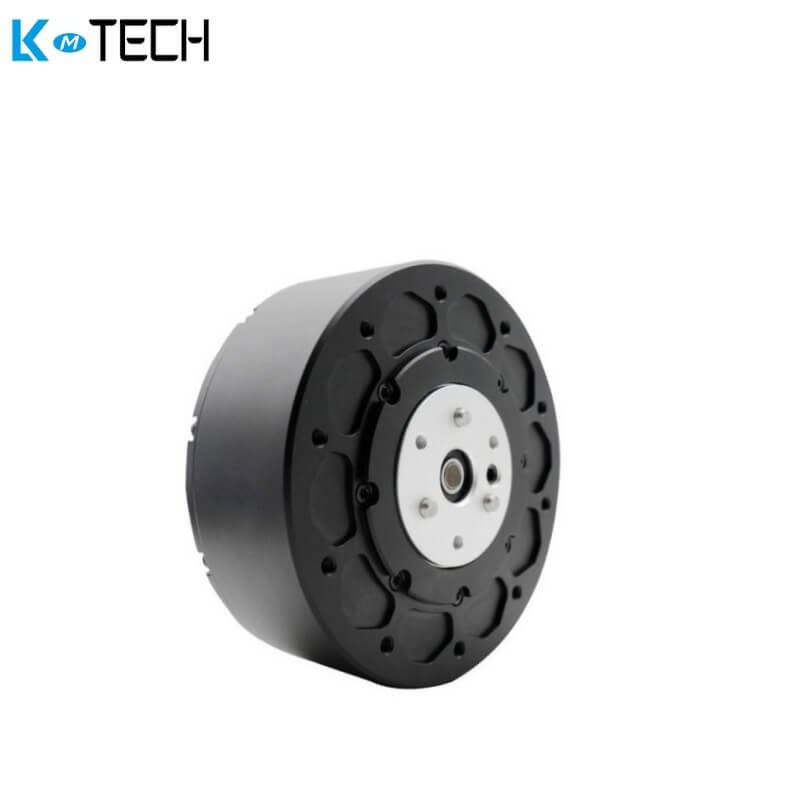

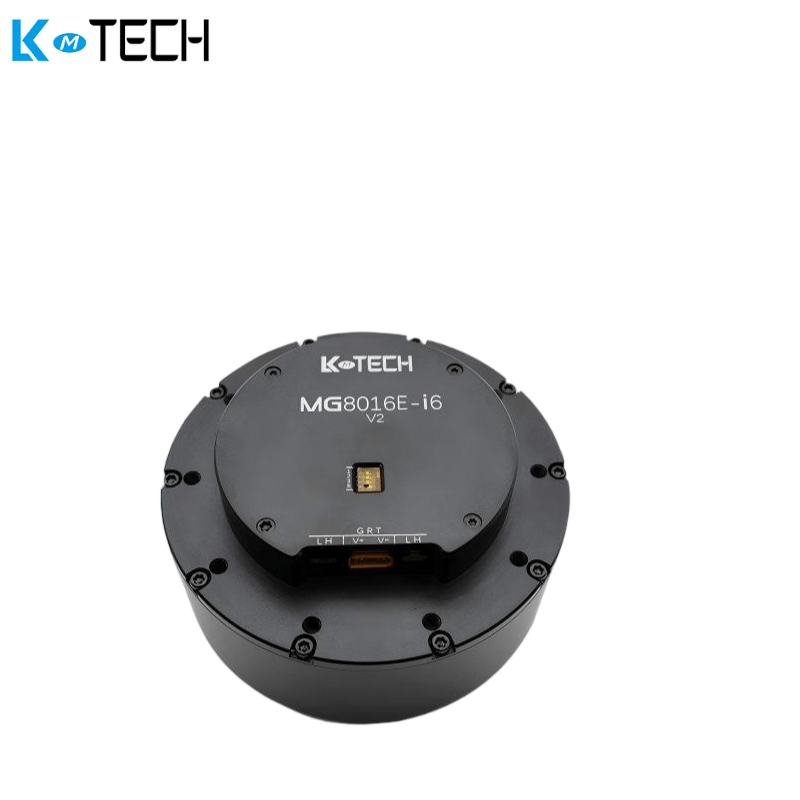

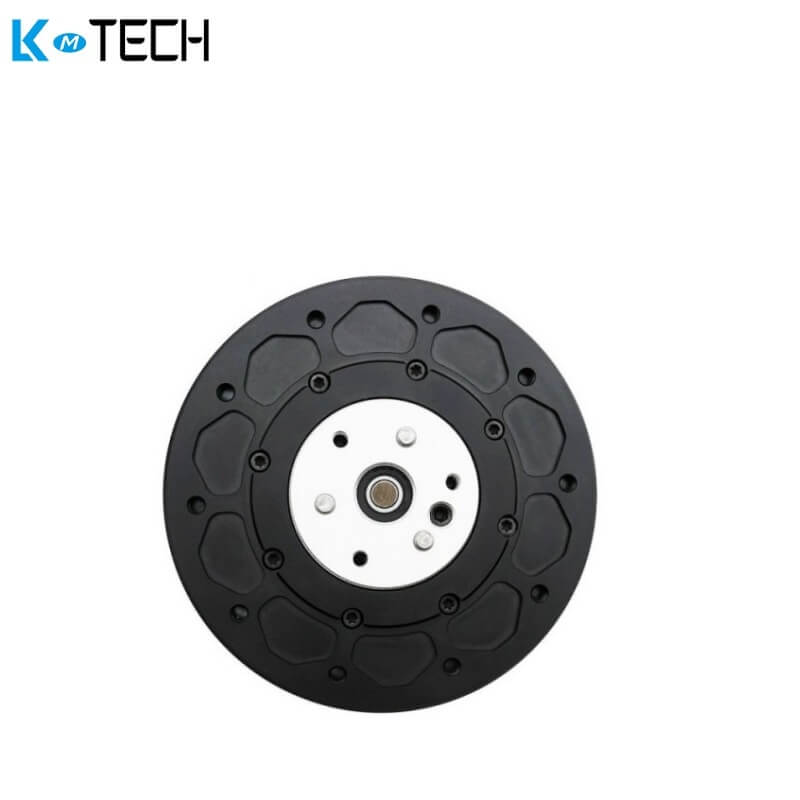

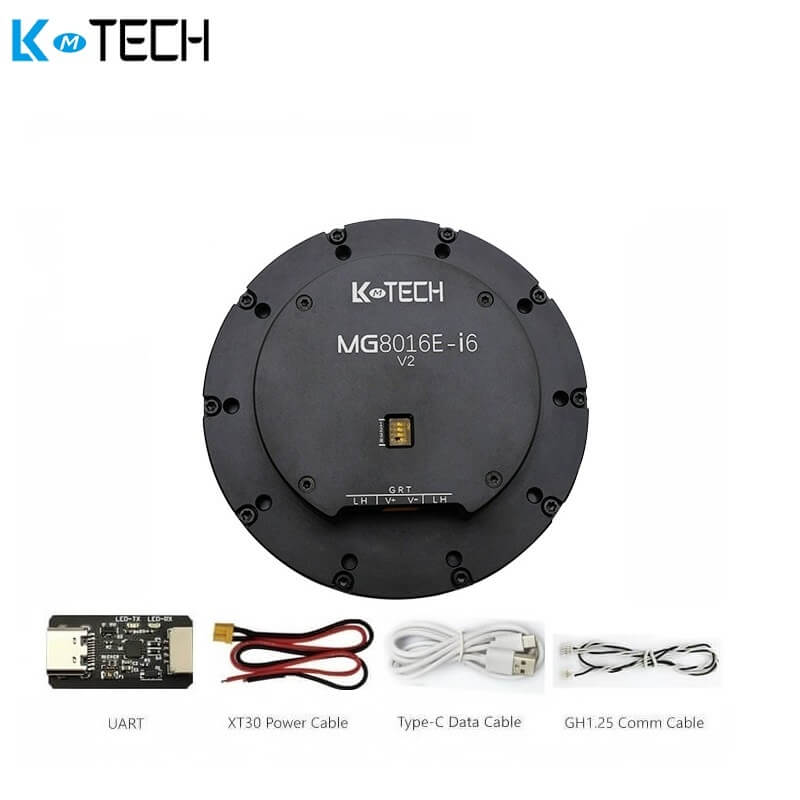

LKMTECH MG8016E-i6v2 Motor
Regular price
$350.00
Unit price
/
Unavailable
LKMTECH MG8016E-i6v2 Motor - MG8016E-i6v2 (Dual Encoder) / CAN is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LKMTECH MG8016E-i6v2 Motor
Regular price
From
$300.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| ltem Name | MG8016E-i6v2 |
| Rated Voltage | 48V |
| Max Speed | 300RPM |
| Rated Torque | 12N.m |
| Rated Speed | 258RPM |
| Rated Current |
8.4A |
| Max Power |
670W |
| Max Torque | 37N.m |
| Speed constant | 41.7rpm/V |
| Torque Constant |
0.24N.m/A |
| Turns | 17 |
| Winding Type | Δ |
| Phase Resistance | 0.6Ω |
| Phase Inductance | 0.6mH |
| Motor Poles | 40 |
| Rotor inertia | 2570gcm² |
| Motor Temperature |
YES |
| Reducer Type | PG5506 |
| Reduction Ratio | 1:6 |
| Backlash | ≤6 arcmin |
| Bearing Rated Load |
1120N |
| Motor Weight | 763g |
| Recommend Drive | DG80Ev2 |
| Drive input Voltage | 12-60V |
| Communication | RS485 OR CAN |
| Communication Frequency | RS485:500Hz(115200bps)/CAN:2KHz(1Mbps) |
| Encoder | 18 bit(Motor)&14 bit(Reducer)Magnetic Encoder |
| Encoder Baudrate(RS485) | 9600、19200、57600、115200、230400、406800、、1M、2Mbps |
| Baudrate(CAN) | 1M |
| Control Mode | Torque Loop(32KHz)/Speed Loop(8KHz)/Position Loop(4KHz) |
| Acceleration curve | Trapeziod acceleration |
MG8016E-i6v2-INSTALLATION_DRAWING.pdf
