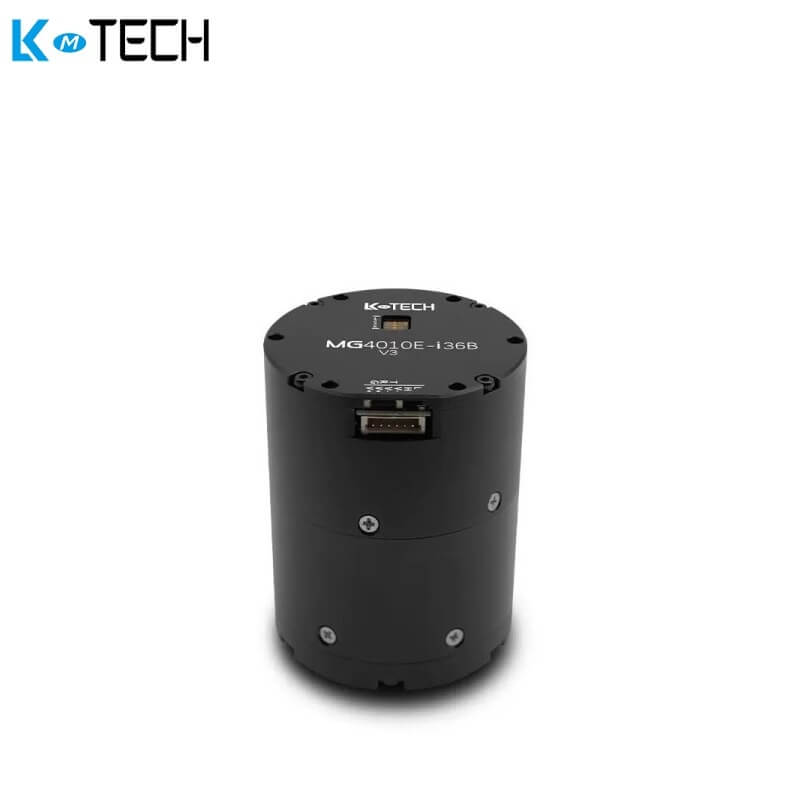

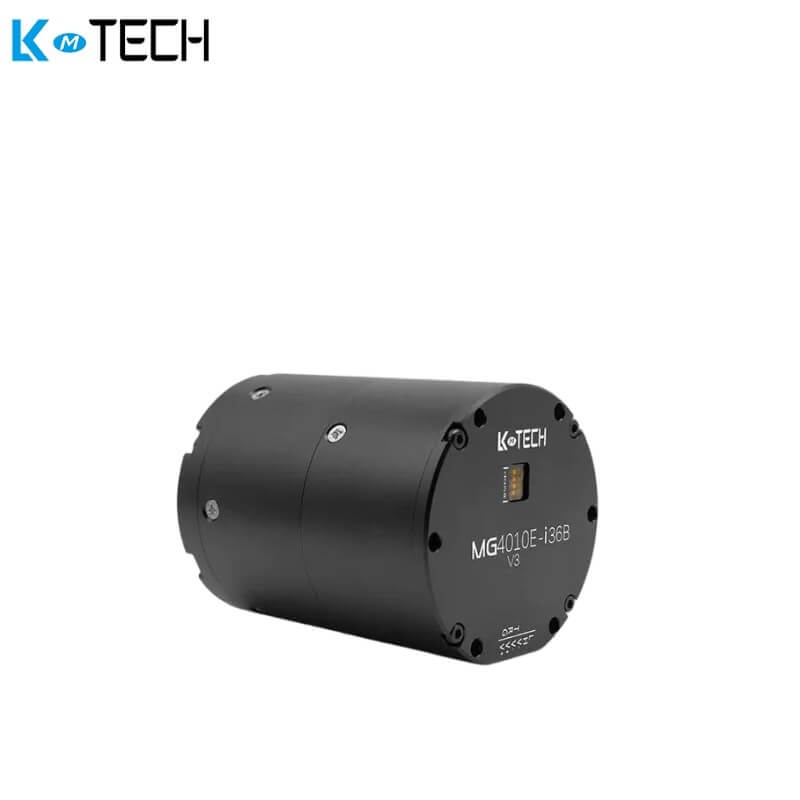

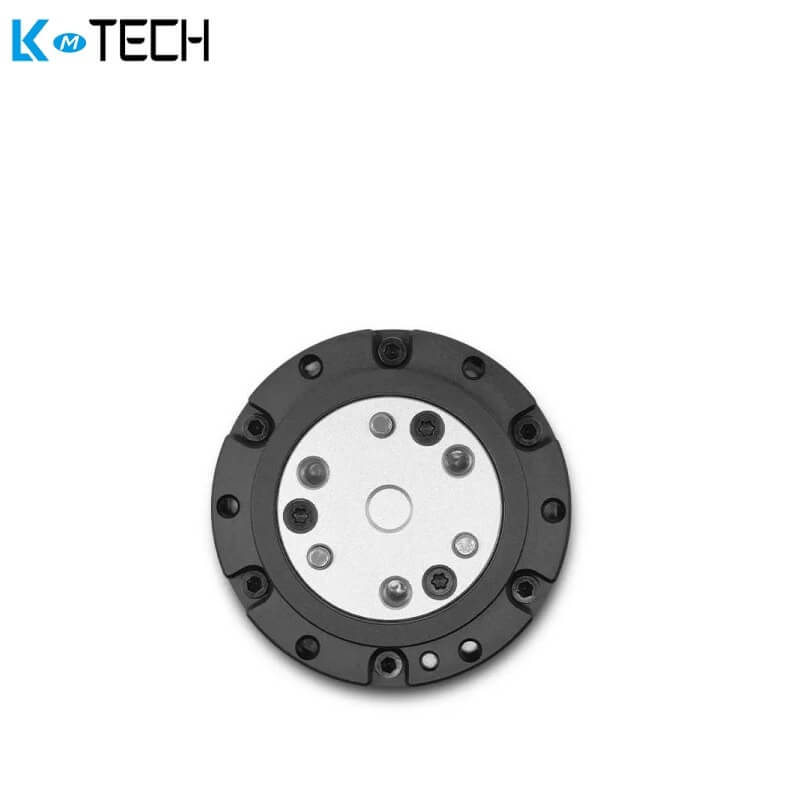

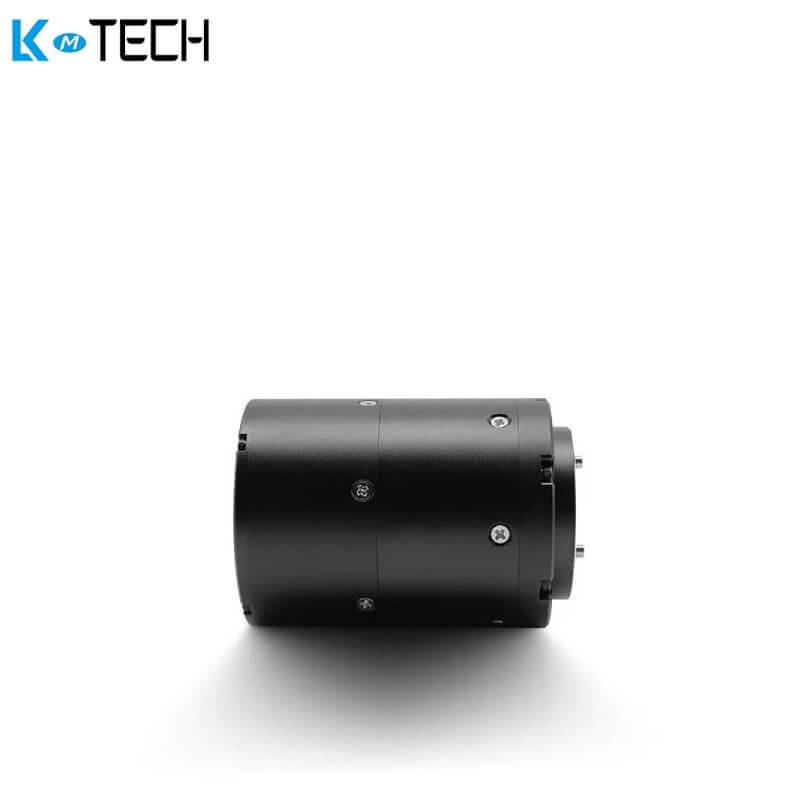

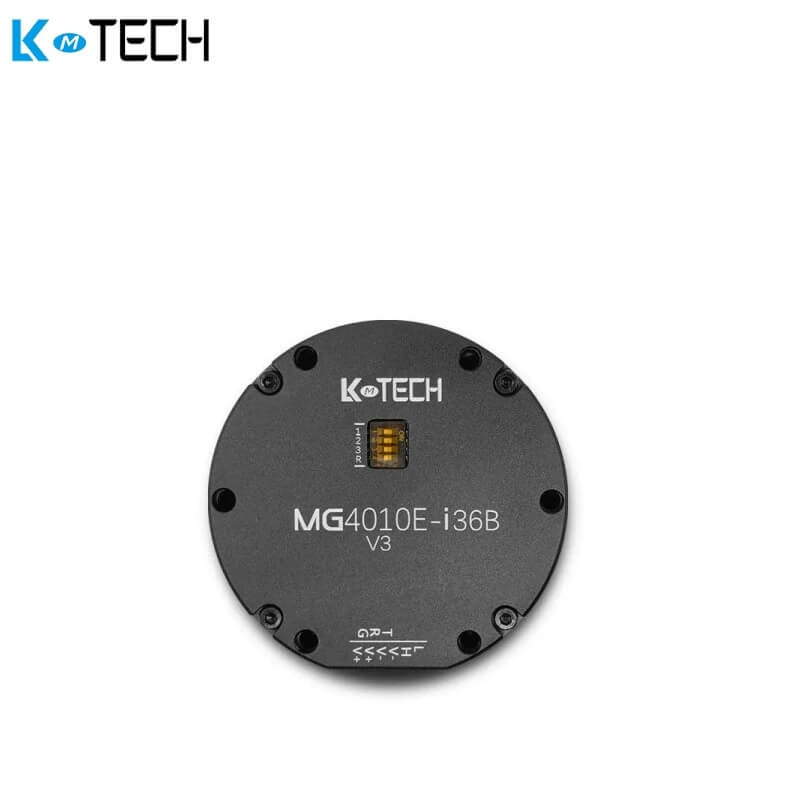

LKMTECH MG4010E-i36Bv3 Motor
Regular price
$330.00
Unit price
/
Unavailable
LKMTECH MG4010E-i36Bv3 Motor - MG4010E-i36Bv3 (CAN) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LKMTECH MG4010E-i36Bv3 Motor
Regular price
$330.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| ltem Name | MG4010E-i36Bv3 |
| Rated Voltage | 24V |
| Max Speed | 90RPM |
| Rated Torque | 9N.m |
| Rated Speed | 72RPM |
| Rated Current |
3.5A |
| Max Power |
135W |
| Max Torque | 18N.m |
| Speed constant | 3rpm/V |
| Torque Constant |
2.58N.m/A |
| Turns | 14 |
| Winding Type | Y |
| Phase Resistance | 0.65Ω |
| Phase Inductance | 0.25mH |
| Motor Poles | 28 |
| Rotor inertia | 158gcm² |
| Motor Temperature |
YES |
| Reducer Type | PG5536 |
| Reduction Ratio | 1:36 |
| Backlash | ≤6 arcmin |
| Bearing Rated Load |
1120N |
| Motor Weight | 542.5g |
| Brake Type | BG4906 |
| Brake Torque (N.m) | 3.2N.m |
| Startup Voltage (V) | 24V |
| Sustaining Voltage (V) | 7V |
| Sustaining Power (W) | 1.4W |
| Recommend Drive | DG40v3 |
| Drive input Voltage | 12-24V |
| Communication | RS485 OR CAN |
| Communication Frequency | RS485:500Hz(115200bps)/CAN:2KHz(1Mbps) |
| Encoder | 18bit(motor)+14bit(reducer)Magnetic Encoder |
| Encoder Baudrate(RS485) | 9600、19200、57600、115200、230400、406800、1M、2Mbps |
| Baudrate(CAN) | 100K,125K,250K,500K,1M |
| Control Mode | Torque Loop(32KHz)/Speed Loop(8KHz)/Position Loop(4KHz) |
| Acceleration curve | Trapeziod acceleration |
MG4010E-i36B-INSTALLATION_DRAWING.pdf
