LKMTECH

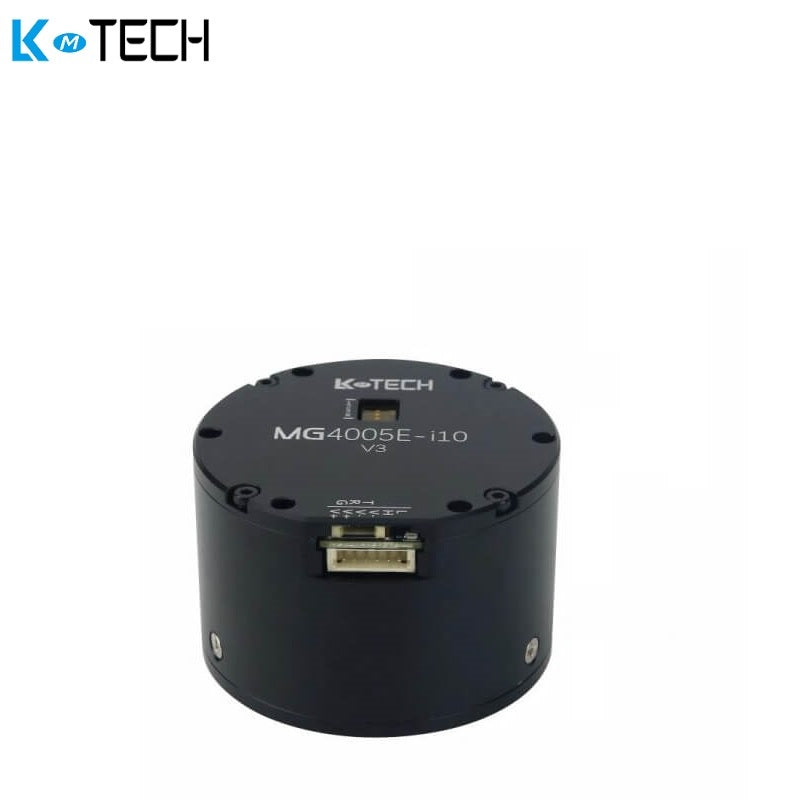

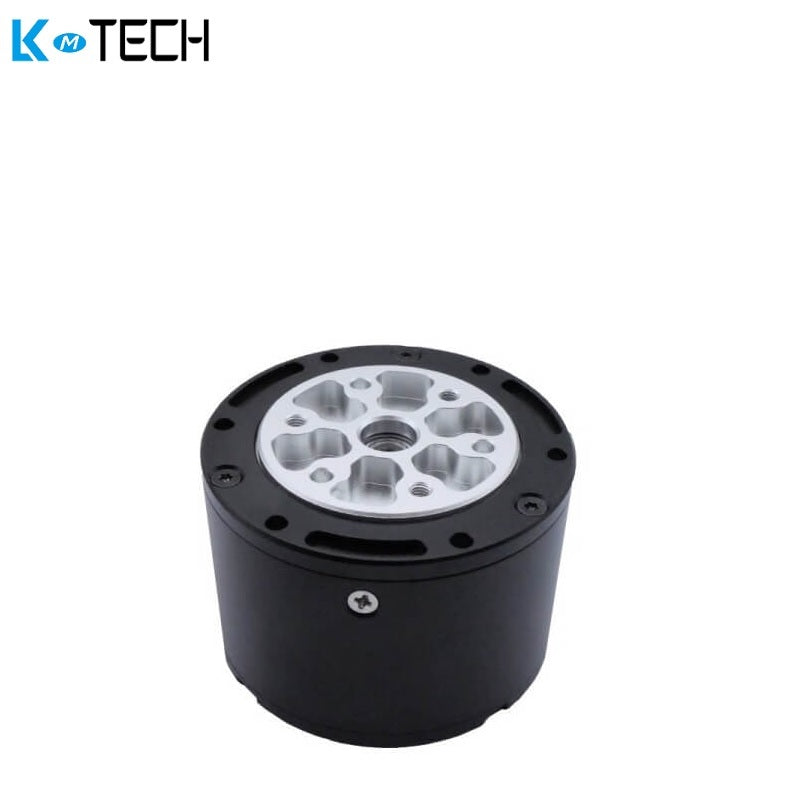

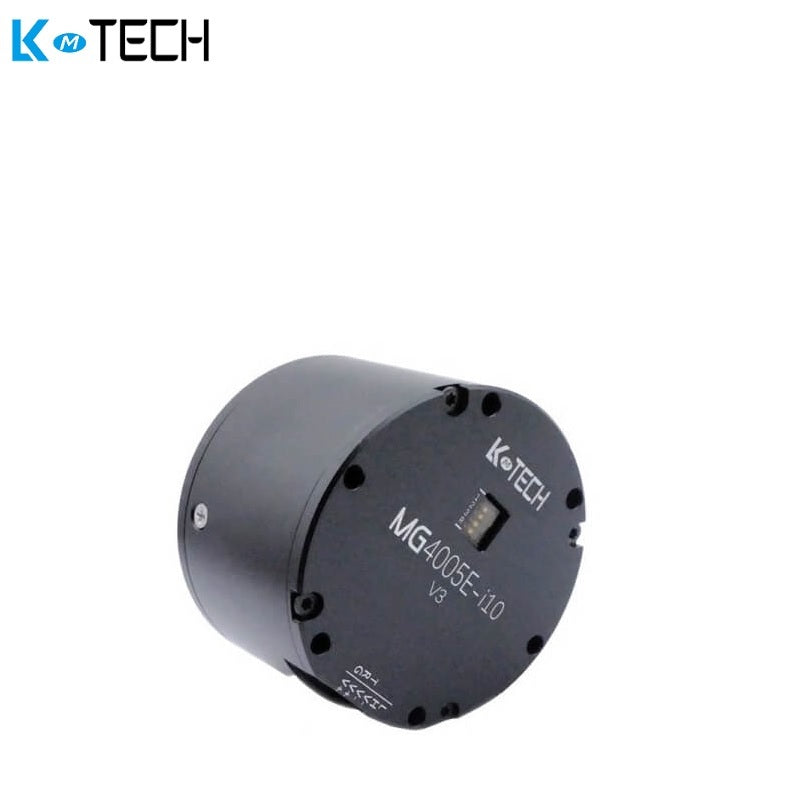

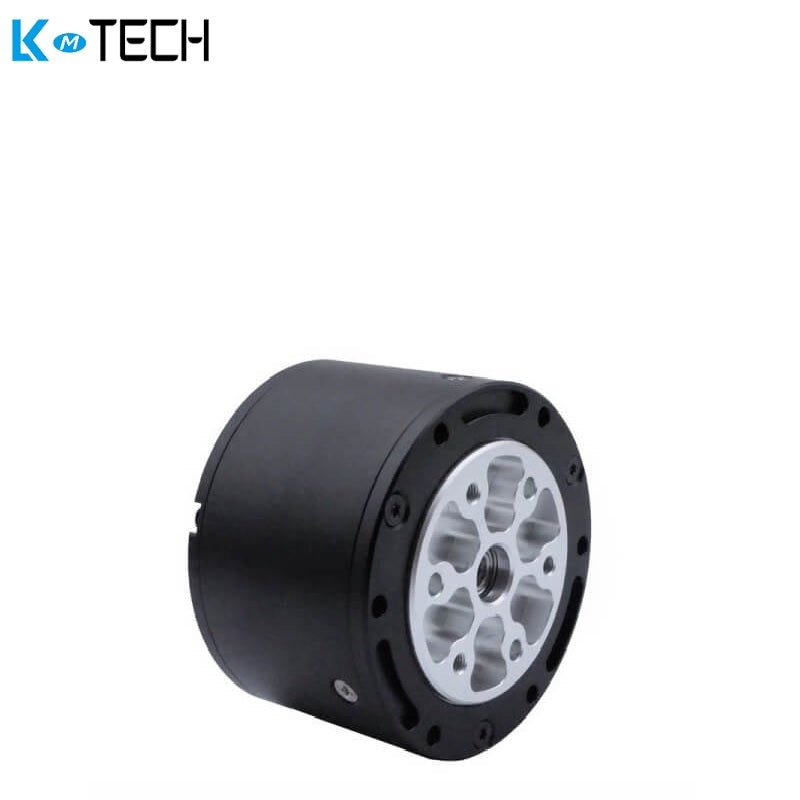

LKMTECH MG4005E-i10v3 Motor

$120.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
ltem Name MG4005E-i10v3
Rated Voltage 24V
Max Speed 320RPM
Rated Torque 1N.m
Rated Speed 255RPM
Rated Current 1.8A
Max Power 65W
Max Torque 2.5N.m
Speed constant 106.3rpm/V
Torque Constant 0.06N.m/A
Turns 28
Winding Type Y
Phase Resistance 1.4Ω
Phase Inductance 0.5mH
Motor Poles 26
Rotor inertia 140gcm²
Motor Temperature YES
Reducer Type PG4210
Reduction Ratio 1:10
Backlash ≤10 arcmin
Bearing Rated Load 1000N
Motor Weight 183g
Recommend Drive DF40
Drive input Voltage 7.4-32V
Communication RS485 OR CAN
Communication Frequency RS485:500Hz(115200bps)/CAN:2KHz(1Mbps)
Encoder 18bit(motor)+14bit(reducer)Magnetic Encoder
Encoder Baudrate(RS485) 9600、19200、57600、115200、230400、406800、、1M、2Mbps
Baudrate(CAN) 100K，125K，250K，500K，1M
Control Mode Torque Loop(24KHz)/Speed Loop(8KHz)/Position Loop(4KHz)
Acceleration curve Trapeziod acceleration



MG4010E-i10v3_INSTALLATION_DRAWING.pdf
