Direct Drive Tech | SKU:

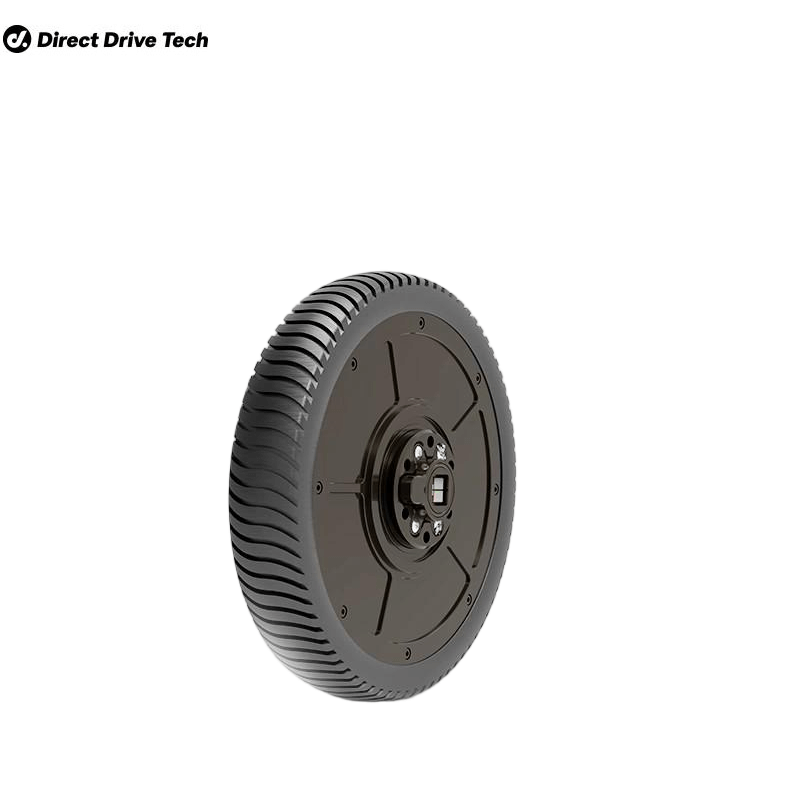

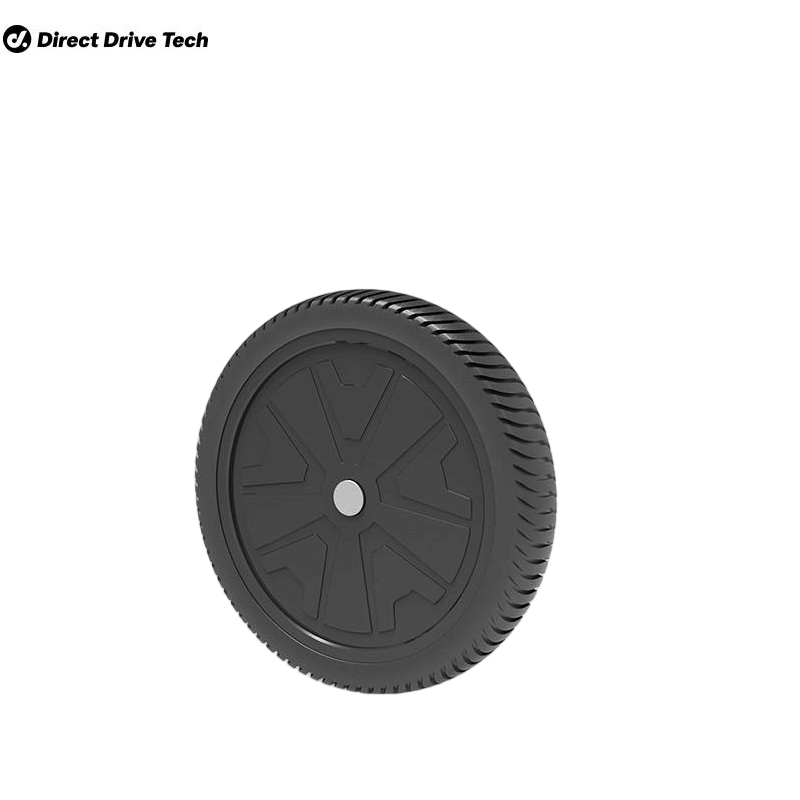

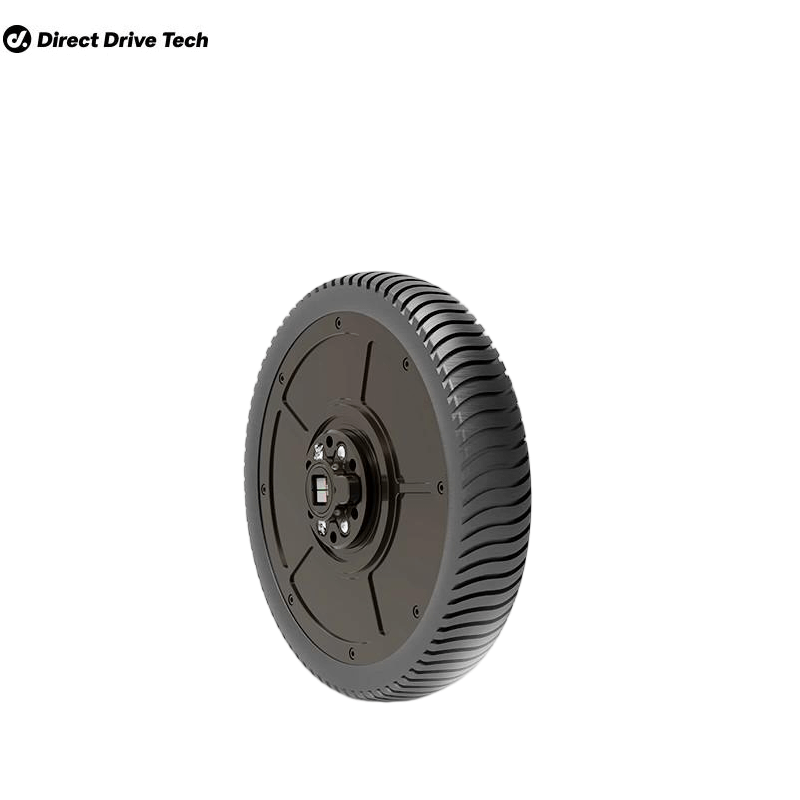

Direct Drive Tech M1505A-222 Directdrive Motor
Regular price
$245.00
Unit price
/
Unavailable
Direct Drive Tech M1505A-222 Directdrive Motor - M1505A-222 Directdrive Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Direct Drive Tech M1505A-222 Directdrive Motor
Regular price
$245.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| ltem Name | Direct Drive Tech M1505A-222 Directdrive Motor |
| No-Load Speed (Current Loop) |
250rpm±8%（2.4m/s）
|
| No-Load Current |
≤0.6A
|
| Rated Speed | 175rpm±5%（1.65m/s） |
| Rated Torque |
3N·m
|
| Rated Current |
4A±0.2A
|
| Rated Voltage |
24VDC
|
| Voltage Range |
18-36VDC
|
| Maximum Efficiency |
≥55%
|
| Stall Torque |
≥7.5N·m
|
| StallCurrent |
≤12A
|
| Torque Constant |
0.83Nm/A
|
| Protection Rating (IP Rating) |
IP65
|
| Noise Level |
≤65 dB
|
| Insulation Class |
F
|
| Motor Weight |
1.54KG
|
| Encoder Resolution (Bits) |
15-bit
|
| Motor Control Method |
FOC
|
M1505A_222-Installation_diagram.pdf
