DAMIAO | SKU:

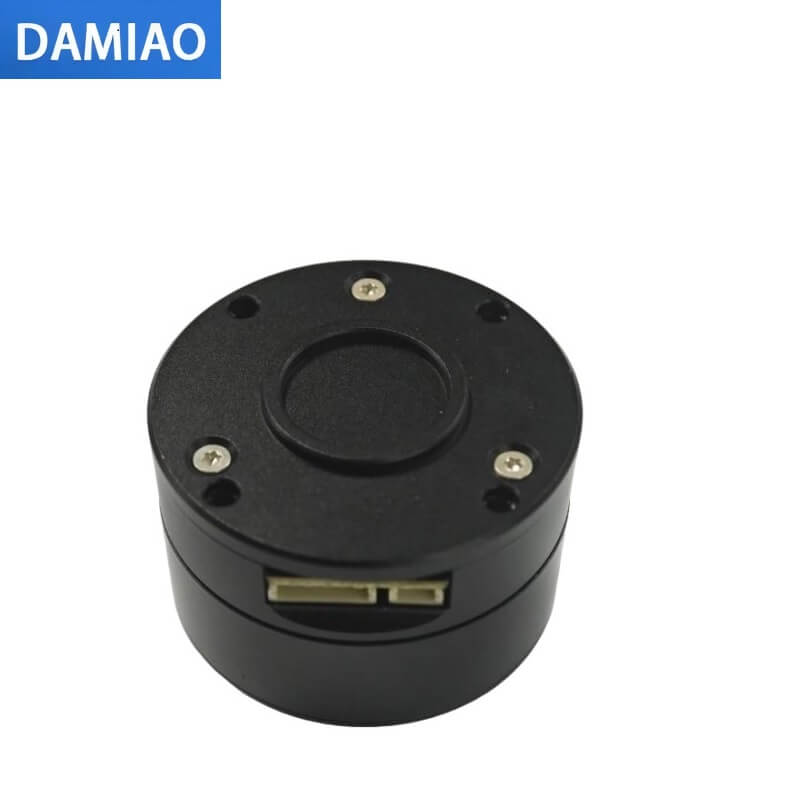

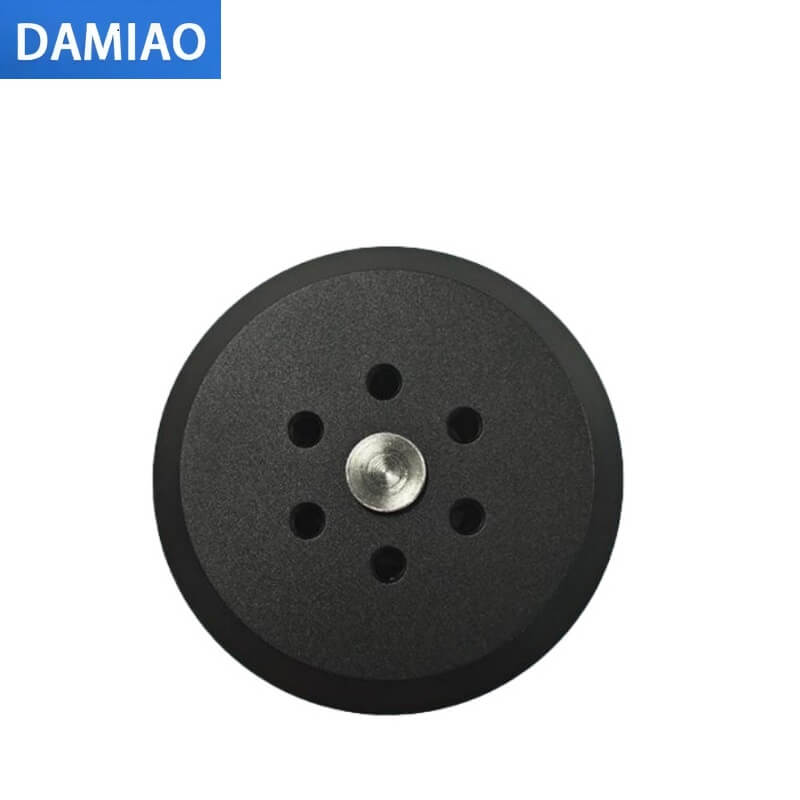

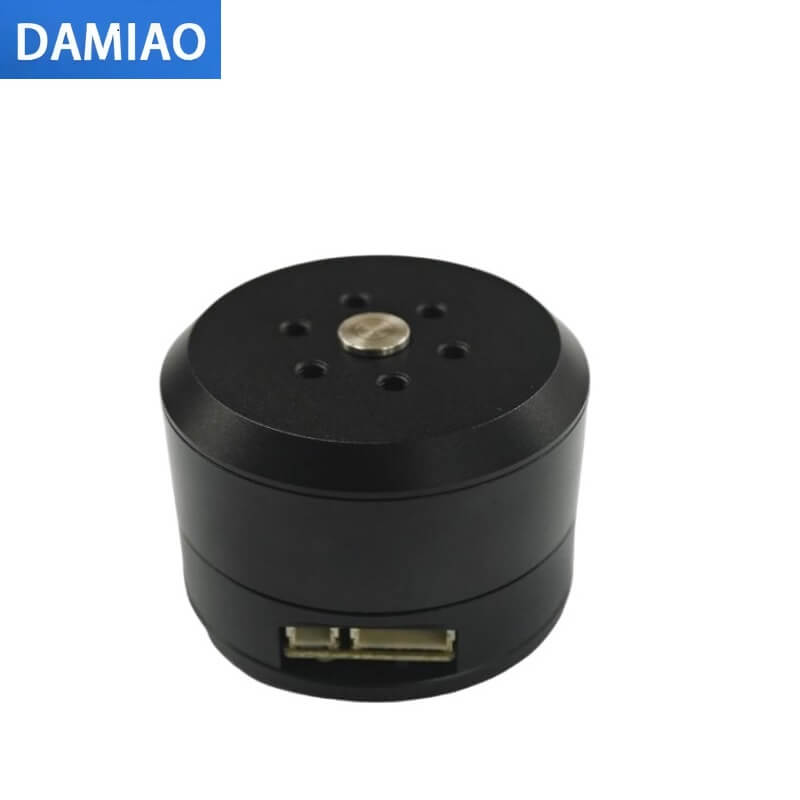

DAMIAO DMH3510 Motor
Regular price
$47.00
Unit price
/
Unavailable
DAMIAO DMH3510 Motor - Include Driver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DAMIAO DMH3510 Motor
Regular price
From
$47.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
DMH3510
|
| Nominal Voltage | 24V |
| Nominal Current | 1.1A |
| Peak Current | 3.2A |
| Nominal Torque | 0.18N.M |
| Peak Torque | 0.45N.M |
| Nominal Speed |
500rpm |
| Max. No-load Speed | 1800rpm |
| Reduction Ratio | 1：1 |
| Pole Pairs | 7 |
| Phase Inductance | 1.67μH |
| Phase Resistance | 2.25Ω |
| Outer Diameter | 42mm |
| Height | 31.5mm |
| Motor Weight | 116g |
| Encoder Type | Magnetic Encoder |
| Control Interface |
CAN@1Mbps、CANFD@5Mbps |
| Configuration Interface | UART@921600bps |
DM-H3510_User_Manual.pdf
